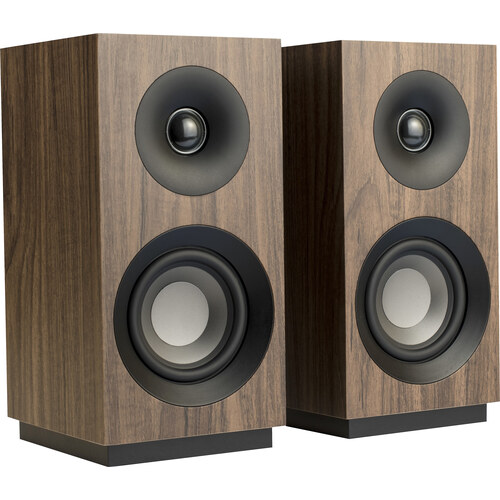

S 801 is a 2-way Passive Bass Reflex Bookshelf speaker by Jamo. It features a 1" Soft-Dome Tweeter and 1 x 4" Aluminized Polyfiber Woofer. The speaker has a frequency range of 76-26k Hz and a sensitivity of 85 dB. Jamo S 801 has an MSRP of 174$ per pair but can often be found around 119$ per pair.
S 801 is a member of Jamo's Studio 8 series of Passive speakers. Below you can see the main specs of these speakers.
Jamo Studio 8 Series Speakers
**This post contains affiliate links and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Jamo S 801 has a Frequency response range of 76-26k Hz at ±3dB and Power Range of up to 60 watts. At a minimum frequency of 76 Hz, it is hard to expect a strong bass response from S 801 so depending on your intended use, using a subwoofer will significantly help to widen the response range.
To focus on the potential subwoofers that are in a similar price range with Jamo S 801, check the Powered Subwoofers under $300. Alternatively, find theFull list of Powered Subwoofers regardless from the price.
Here we have a comparison of how S 801's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
Among the speakers in our database with a max MSRP price of 300$ (Pair), these are the 5 Passive Bookshelf speakers that have the deeper bass levels than the Jamo S 801's 76Hz:
Impedance and Sensitivity
Jamo S 801's nominal impedance level is 8 ohms and has a sensitivity of 85 dB.
Sensitivity
Bookshelf Speakers
Is the Jamo S 801 an easy to drive speaker?
8 Ohms is pretty much the standard impedance amongst stereo speakers and amplifiers so Jamo S 801 is not considered a difficult to drive speaker from nominal Impedance perspective.
With a sensitivity level of only 85 dB, Jamo S 801 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with high output if you like listening your music at high volume levels. You may especially have hard time using Tube amlifiers which are traditionally very low power compared to Class A/B or Class D speakers.
Input Type
S 801 features Post type connectors. Bi-amping and Bi-wiring is not possible.
Jamo S 801 Back View
Jamo S 801 Speaker Size: Weight and Dimensions
Jamo S 801 has external dimensions of (Height x Width x Depth) 11.2 x 6.1 x 6.4inch (285.0 x 156.0 x 163.0mm ). Each speaker weighs 2.70kg / 5.9lbs.
Base Surface Area and Volume
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Jamo S 801 is approximately 254.3cm2 / 39.4inch2.
To have a better perspective on the real life size of Jamo S 801, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Jamo S 801 Speaker Size Compared to a Compact Disc
Here we place the Jamo S 801 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.
Jamo S 801 Speaker next to an amplifier and turntable
Here we have a comparison of how S 801's weight compared with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $300
Jamo S 801 on a Stand
Cabinet type and Materials
Jamo S 801 has a
Bass Reflex type cabinet and MDF/Vinyl finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Jamo S 801 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Available colors
Jamo S 801 is available in Walnut, Black, White.
Wall Mounting
S 801 doesn't sport any built-in mounting bracket so you need an external structure to mount on walls.
Grille
S 801 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound pass as clearly as possible.
Jamo S 801 with Grille
What's in the Box of Jamo S 801?
Here are the items that are included inside the box of S 801:
2 Bookshelf loudspeakers 2 Grilles User Manual Important Safety Instructions Warranty Information
User's Manual
For more information about how to setup, use and maintain the Jamo S 801, use the direct link below to download the official manual document:
Download User Manual for Jamo S 801
Official Brochure
Here is a link to download the official brochure for the Jamo S 801 speaker:
Official Brochure for Jamo S 801
Official Product Page
Official manufacturer's product page for the Jamo S 801 speaker can be found below:
Official Product Page for Jamo S 801
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
Jamo S 801 in Use
