In this review, we will be comparing two different type of speakers by JBL. JBL Stage 280W is a In-wall speaker whereas the A120 is a Bookshelf speaker.
Let's have a brief look at the main features
of JBL Stage 280W and JBL A120 first before getting into our more
detailed comparison.
Stage 280W and A120 are members of JBL's Stage series of speakers. Below you can find the loudspeakers from this series.
What size room are the JBL Stage 280W and JBL A120 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the JBL Stage 280W and JBL A120 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Stage 280W and A120 are 2-way speakers.
| Driver |
JBL Stage 280W |
JBL A120 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 8-inch
|
1 x 4.5-inch
|
Stage 280W features a 1" Horn-Loaded Tweeter and 1 x 8" Polycellulose Woofer . On the other hand, the A120 features a 1" aluminum Hard-Dome Tweeter and 1 x 4.5" Polycellulose Woofer .
Frequency Response
Stage 280W has a frequency range of 42-25kHz whereas A120 has a frequency range of 60-40k Hz. With a minimum frequency of 42Hz, the Stage 280W can go significantly deeper on the low side and provide stronger bass compared to the A120's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
High Frequency
In-wall Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Stage 280W is a 8 ohms speaker compared to the A120 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Stage 280W sensitivity is rated at 90 dB and the A120's is rated at 86 dB. This 4 dB difference makes the JBL Stage 280W a more sensitive speaker compared to JBL A120, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Stage 280W can handle a max power of 125 watts RMS from the amp the whereas Stage 280W has a max power handling value of 120 watts RMS , 5 watts less than the A120.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Stage 280W features 5-way post type posts and A120 has a 5-way post type posts. None of these speakers feature bi-amping/bi-wiring.
JBL A120's 5-way post terminals
Physical Specs

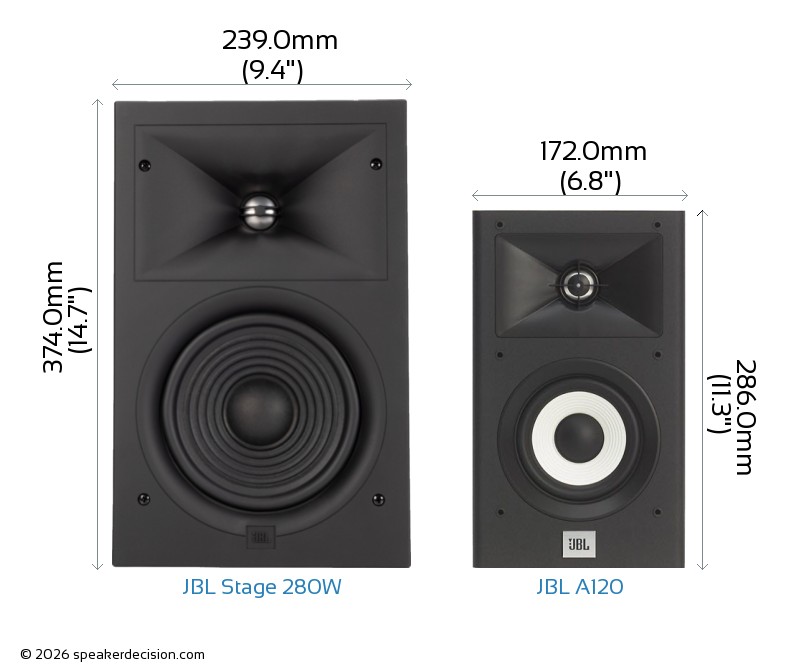

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage 280W's and JBL A120's external dimensions. JBL Stage 280W has external dimensions of 374.0 x 239.0 x 99.0mm ( 14.6875-inch x 9.3750-inch x 3.8750-inch) whereas JBL A120 has external dimensions of 286.0 x 172.0 x 189.0mm ( 11-1/4 x 6-3/4 x 7-7/16inch) .
JBL A120 is 67mm narrower and 88mm shorter than JBL Stage 280W but it is also 90mm deeper.
What's in the Box of JBL Stage 280W?
Here are the items that are included inside the box of Stage 280W:
In-wall loudspeakerGrilleCut-Out TemplateQuick Start Guide
What's in the Box of JBL A120?
Here are the items that come with the A120:
2 Bookshelf loudspeakers2 Grilles2 Foam plugs4 Brackets8 Rubber feet8 Screws (M6 x 8mm)Owner-feets ManualWarranty Card
