In this review, we will be comparing two different type of speakers by JBL. JBL Stage A120 is a Bookshelf speaker whereas the Stage 260W is a In-wall speaker.
Let's have a brief look at the main features
of JBL A120 and JBL Stage 260W first before getting into our more
detailed comparison.
JBL A120 Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 4.5" Polycellulose Woofer
- 60-40k Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-125watts
- Weight:3.82kg
- Dimensions (H x W x D): 286.0" x 6-3/4" x 7-7/16"( 286.0 x 172.0 x 189.0mm )
JBL Stage 260W Key Specs
- 2-way Design
- 1" Horn-Loaded Tweeter
- 6.5" Polycellulose Woofer
- 50-25kHz Frequency Response
- 87 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-100watts
- Dimensions (H x W x D): 312.0" x 7.2500" x 3.5625"( 312.0 x 185.0 x 91.0mm )
A120 and Stage 260W are members of JBL's Stage series of speakers. Below you can find the loudspeakers from this series.
What size room are the JBL A120 and JBL Stage 260W speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
JBL A120 |
JBL Stage 260W |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the JBL A120 and JBL Stage 260W compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both A120 and Stage 260W are 2-way speakers.
| Driver |
JBL A120 |
JBL Stage 260W |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 4.5-inch
|
1 x 6.5-inch
|
A120 features a 1" aluminum Hard-Dome Tweeter and 1 x 4.5" Polycellulose Woofer . On the other hand, the Stage 260W features a 1" Horn-Loaded Tweeter and 1 x 6.5" Polycellulose Woofer .
Frequency Response
A120 has a frequency range of 60-40k Hz whereas Stage 260W has a frequency range of 50-25kHz. With a minimum frequency of 50Hz, the Stage 260W can go significantly deeper on the low side and provide stronger bass compared to the A120's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
A120 is a 6 ohms speaker compared to the Stage 260W which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. A120 sensitivity is rated at 86 dB and the Stage 260W's is rated at 87 dB. This 1 dB difference makes the JBL Stage 260W a more sensitive speaker compared to JBL A120, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
A120 can handle a max power of 125 watts RMS from the amp the whereas Stage 260W has a max power handling value of 100 watts RMS, 25 watts less than the A120.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
A120 features Spring clip type posts and Stage 260W has a Spring clip type posts. None of these speakers feature bi-amping/bi-wiring.
JBL A120's 5-way post terminals

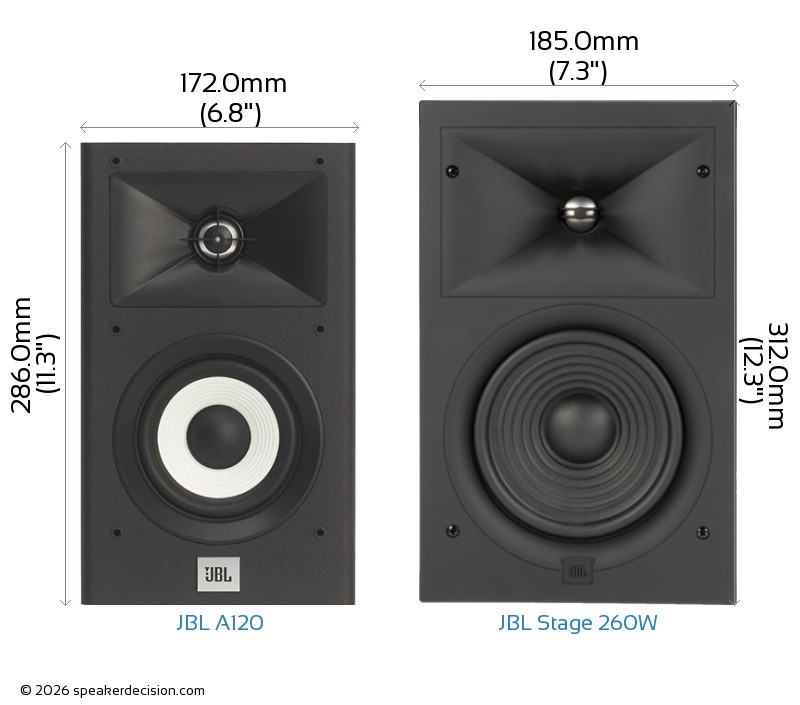

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL A120's and JBL Stage 260W's external dimensions. JBL A120 has external dimensions of 286.0 x 172.0 x 189.0mm ( 11-1/4 x 6-3/4 x 7-7/16inch) whereas JBL Stage 260W has external dimensions of 312.0 x 185.0 x 91.0mm ( 12.2500-inch x 7.2500-inch x 3.5625-inch) .
JBL A120 is 13mm narrower and 26mm shorter than JBL Stage 260W but it is also 98mm deeper.
What's in the Box of JBL A120?
Here are the items that are included inside the box of A120:
2 Bookshelf loudspeakers2 Grilles2 Foam plugs4 Brackets8 Rubber feet8 Screws (M6 x 8mm)Owner-feets ManualWarranty Card
What's in the Box of JBL Stage 260W?
Here are the items that come with the Stage 260W:
In-wall loudspeakerGrilleCut-Out TemplateQuick Start Guide
