In this review, we will be comparing two different type of speakers by JBL. JBL Stage 260W is a In-wall speaker whereas the A180 is a Floor-standing speaker.
Let's have a brief look at the main features
of JBL Stage 260W and JBL Stage A180 first before getting into our more
detailed comparison.
Stage 260W and A180 are members of JBL's Stage series of speakers. Below you can find the loudspeakers from this series.
What size room are the JBL Stage 260W and JBL Stage A180 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the JBL Stage 260W and JBL Stage A180 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Stage 260W and A180 are 2-way speakers.
| Driver |
JBL Stage 260W |
JBL Stage A180 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
2 x 6.5-inch
|
Stage 260W features a 1" Horn-Loaded Tweeter and 1 x 6.5" Polycellulose Woofer . On the other hand, the A180 features a 1" aluminum HDI (High Definition Imaging) waveguide Tweeter and 2 x 6.5" Polycellulose Woofer .
Frequency Response
Stage 260W has a frequency range of 50-25kHz whereas A180 has a frequency range of 40-40k Hz. With a minimum frequency of 40Hz, the A180 can go significantly deeper on the low side and provide stronger bass compared to the Stage 260W's min frequency of 50Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
High Frequency
In-wall Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Stage 260W is a 8 ohms speaker compared to the A180 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Stage 260W sensitivity is rated at 87 dB and the A180's is rated at 90 dB. This 3 dB difference makes the JBL Stage A180 a more sensitive speaker compared to JBL Stage 260W, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Stage 260W can handle a max power of 225 watts RMS from the amp the whereas Stage 260W has a max power handling value of 100 watts RMS , 125 watts less than the A180.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
A180 features 5-Way post posts which make bi-amping or bi-wiring possible. Stage 260W has a Spring clip which doesn't feature bi-amping/bi-wiring.
Physical Specs

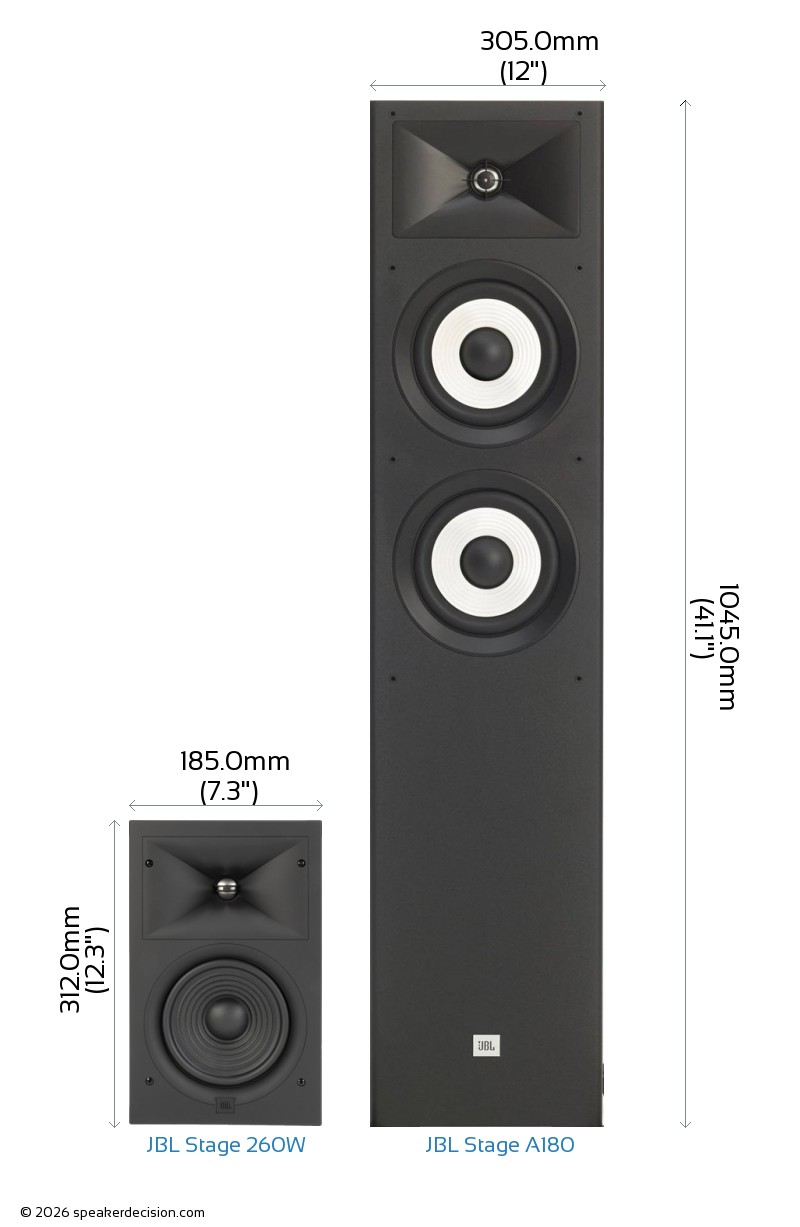

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage 260W's and JBL Stage A180's external dimensions. JBL Stage 260W has external dimensions of 312.0 x 185.0 x 91.0mm ( 12.2500-inch x 7.2500-inch x 3.5625-inch) whereas JBL Stage A180 has external dimensions of 1045.0 x 305.0 x 369.0mm ( 41-1/8 x 12 x 14-1/2inch) .
JBL Stage A180 is clearly the larger of the two speakers. Its body is 120mm wider, 733mm taller and 278mm deeper than JBL Stage 260W.
What's in the Box of JBL Stage 260W?
Here are the items that are included inside the box of Stage 260W:
In-wall loudspeakerGrilleCut-Out TemplateQuick Start Guide
What's in the Box of JBL Stage A180?
Here are the items that come with the A180:
Floorstanding loudspeakerGrille4 Outriggers4 Rubber feet4 Spikes8 Screws2 Terminal jumpers (pre-installed)Owners ManualWarranty Card
