In this review, we will be comparing two different types of speakers by JBL. JBL Stage 260W is a In-wall speaker whereas the A120 is a Bookshelf speaker.
Let's have a brief look at the main features
of JBL Stage 260W and JBL A120 first before getting into our more
detailed comparison.
| Key Specs | JBL Stage 260W | JBL A120 |
|---|
| Brand | JBL
United States · founded 1946 | JBL
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Horn-Loaded | 1" Hard-Dome |
|---|
| Woofer | 6.5" Polycellulose | 4.5" Polycellulose |
|---|
| Frequency response | 50-25kHz | 60-40k Hz |
|---|
| Sensitivity | 87 dB | 86 dB |
|---|
| Impedance | 8 ohms | 6 ohms |
|---|
| Power range | 20-100 watts | 20-125 watts |
|---|
| Weight | — | 3.82kg / 8.4lbs |
|---|
| Dimensions (H x W x D) | 12.2500" x 7.2500" x 3.5625"
312.0 x 185.0 x 91.0mm | 11-1/4" x 6-3/4" x 7-7/16"
286.0 x 172.0 x 189.0mm |
|---|
Stage 260W and A120 are members of JBL's Stage series of speakers. Below you can find the loudspeakers from this series.
What size room are the JBL Stage 260W and JBL A120 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Stage 260W |
JBL A120 |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Stage 260W and A120 are 2-way speakers.
JBL Stage 260WJBL A120
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
JBL Stage 260W |
JBL A120 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 4.5-inch
|
Stage 260W features a 1" Horn-Loaded Tweeter and 1 x 6.5" Polycellulose Woofer. On the other hand, the A120 features a 1" aluminum Hard-Dome Tweeter and 1 x 4.5" Polycellulose Woofer.
Frequency Response
Stage 260W has a frequency range of 50-25kHz whereas A120 has a frequency range of 60-40k Hz. With a minimum frequency of 50Hz, the Stage 260W can go significantly deeper on the low side and provide stronger bass compared to the A120's min frequency of 60Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Stage 260W is a 8 ohms speaker compared to the A120 which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Stage 260W sensitivity is rated at 87 dB and the A120's is rated at 86 dB. This 1 dB difference makes the JBL Stage 260W a more sensitive speaker compared to JBL A120, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
A120 can handle a max power of 125 watts RMS, whereas Stage 260W has a max power handling value of 100 watts RMS, 25 watts less than the A120.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Stage 260W features 5-way post type posts and A120 has a 5-way post type posts. None of these speakers feature bi-amping/bi-wiring.
JBL A120's 5-way post terminals
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage 260W's and JBL A120's external dimensions. JBL Stage 260W has external dimensions of 312.0 x 185.0 x 91.0mm (12.2500-inch x 7.2500-inch x 3.5625-inch) whereas JBL A120 has external dimensions of 286.0 x 172.0 x 189.0mm (11-1/4 x 6-3/4 x 7-7/16inch).
JBL A120 is 13mm narrower and 26mm shorter than JBL Stage 260W but it is also 98mm deeper.

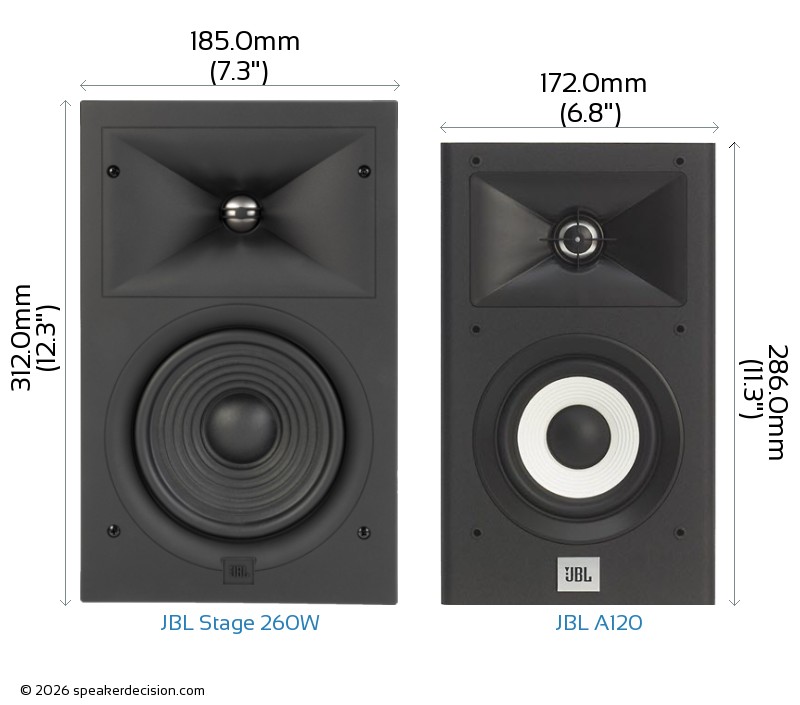

Below you can see the front view size comparison of JBL Stage 260W and JBL A120 in scale.
Comparison image of JBL Stage 260W and JBL A120 Size and External Dimensions
What's in the Box of JBL Stage 260W?
Here are the items that are included inside the box of Stage 260W:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
What's in the Box of JBL A120?
Here are the items that come with the A120:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 2 Foam plugs
- 4 Brackets
- 8 Rubber feet
- 8 Screws (M6 x 8mm)
- Owner-feets Manual
- Warranty Card
