In this review, we will be comparing two different types of speakers by JBL. JBL Stage 280W is a In-wall speaker whereas the A180 is a Floor-standing speaker.
Let's have a brief look at the main features
of JBL Stage 280W and JBL Stage A180 first before getting into our more
detailed comparison.
| Key Specs | JBL Stage 280W | JBL Stage A180 |
|---|
| Brand | JBL
United States · founded 1946 | JBL
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Horn-Loaded | 1" HDI (High Definition Imaging) waveguide |
|---|
| Woofer | 8" Polycellulose | 2 x 6.5" Polycellulose |
|---|
| Frequency response | 42-25kHz | 40-40k Hz |
|---|
| Sensitivity | 90 dB | 90 dB |
|---|
| Impedance | 8 ohms | 6 ohms |
|---|
| Power range | 20-120 watts | 20-225 watts |
|---|
| Weight | — | 17.29kg / 38lbs |
|---|
| Dimensions (H x W x D) | 14.6875" x 9.3750" x 3.8750"
374.0 x 239.0 x 99.0mm | 41-1/8" x 12" x 14-1/2"
1045.0 x 305.0 x 369.0mm |
|---|
Stage 280W and A180 are members of JBL's Stage series of speakers. Below you can find the loudspeakers from this series.
What size room are the JBL Stage 280W and JBL Stage A180 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Stage 280W |
JBL Stage A180 |
| Near-field |
Poor |
Bad |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Stage 280W and A180 are 2-way speakers.
JBL Stage 280WJBL Stage A180
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
JBL Stage 280W |
JBL Stage A180 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 8-inch
|
2 x 6.5-inch
|
Stage 280W features a 1" Horn-Loaded Tweeter and 1 x 8" Polycellulose Woofer. On the other hand, the A180 features a 1" aluminum HDI (High Definition Imaging) waveguide Tweeter and 2 x 6.5" Polycellulose Woofer.
Frequency Response
Stage 280W has a frequency range of 42-25kHz whereas A180 has a frequency range of 40-40k Hz. With a minimum frequency of 40Hz, the A180 can go slightly deeper then the Stage 280W's min frequency of 42Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Stage 280W is a 8 ohms speaker compared to the A180 which has a nominal impedance of 6 ohms.
On the other hand, they have the same sensitivity of 90 dBdB.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
A180 can handle a max power of 225 watts RMS, whereas Stage 280W has a max power handling value of 120 watts RMS, 105 watts less than the A180.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
A180 features 5-Way post posts which make bi-amping or bi-wiring possible. Stage 280W has a Spring clip which doesn't feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage 280W's and JBL Stage A180's external dimensions. JBL Stage 280W has external dimensions of 374.0 x 239.0 x 99.0mm (14.6875-inch x 9.3750-inch x 3.8750-inch) whereas JBL Stage A180 has external dimensions of 1045.0 x 305.0 x 369.0mm (41-1/8 x 12 x 14-1/2inch).
JBL Stage A180 is clearly the larger of the two speakers. Its body is 66mm wider, 671mm taller and 270mm deeper than JBL Stage 280W.

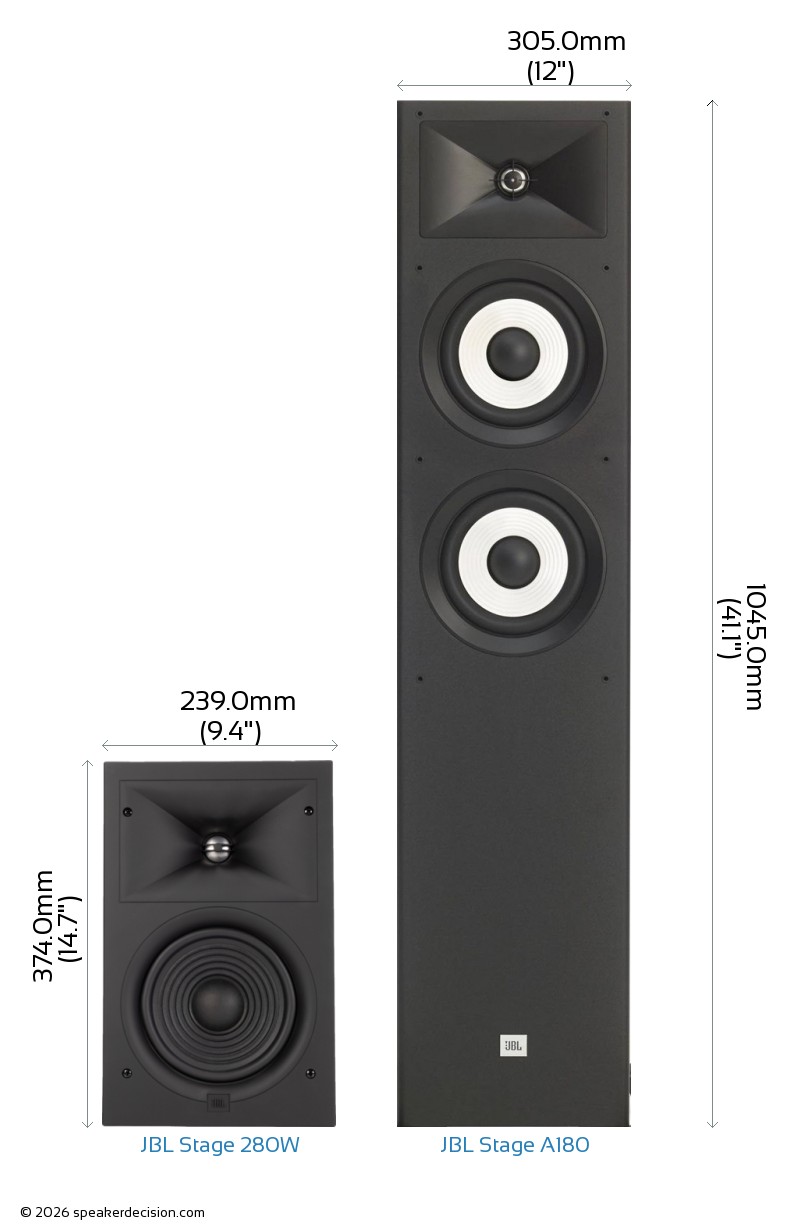

Below you can see the front view size comparison of JBL Stage 280W and JBL Stage A180 in scale.
Comparison image of JBL Stage 280W and JBL Stage A180 Size and External Dimensions
What's in the Box of JBL Stage 280W?
Here are the items that are included inside the box of Stage 280W:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
What's in the Box of JBL Stage A180?
Here are the items that come with the A180:
- Floorstanding loudspeaker
- Grille
- 4 Outriggers
- 4 Rubber feet
- 4 Spikes
- 8 Screws
- 2 Terminal jumpers (pre-installed)
- Owners Manual
- Warranty Card
