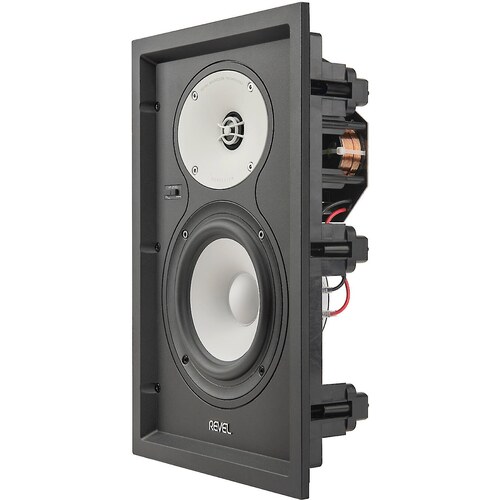

Revel W126Be is a 2-way Passive In-wall speaker by Revel. It was released in 2018. It features a 1" Tweeter and 1 x 6.5" Woofer. The speaker has a frequency range of 55-40k Hz and a sensitivity of 89 dB. Revel W126Be has an MSRP of 3850$ per pair but can often be found around 0$ per pair.
Revel's Architectural Series of Loudspeakers
W126Be is a member of Revel's Architectural series of Passive speakers. The Architectural range are Revel's in-wall and in-ceiling custom-install speakers. Below you can see the main specs of these speakers.
See all 10 Revel Architectural models compared »
Revel Architectural Series Speakers
Frequency Response of the Revel W126Be Speaker
Revel W126Be has a Frequency response range of 55-40k Hz. With a minimum frequency of 55 Hz, W126Be delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how W126Be's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
In-wall Speakers
Thinking about a subwoofer for the Revel W126Be?
Impedance and Sensitivity
Revel W126Be's nominal impedance level is
6 ohms and has a sensitivity of
89 dB.
Sensitivity
In-wall Speakers
Nominal Impedance of the 6 Ohms makes the Revel W126Be a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
89dB of the Revel W126Be is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Revel W126Be plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the Revel W126Be need?
At normal listening levels in a medium room, about
13–200 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $5,000, or every amplifier we cover.
Input Type
W126Be features Spring post type connectors.
Work out what gauge speaker cable this run needs →
Revel W126Be External Dimensions and Weight
Revel W126Be has external dimensions of (Height x Width x Depth) (396.9 x 260.4 x 96.8mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Revel W126Be is approximately 252.1cm2 / 39.1inch2.
To get a better perspective on the real life size of Revel W126Be, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

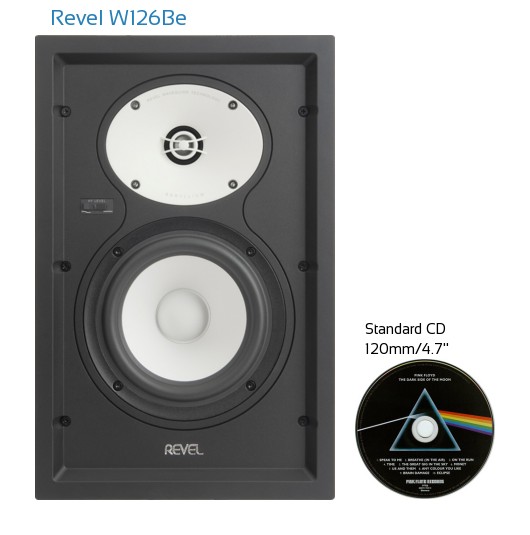

Revel W126Be Speaker Size Compared to a Compact Disc
Find speakers that fit your shelf or alcove →
Recommended Accessories
Here is a list of accessories that we think you may need for the Revel W126Be.
Warranty
Lifetime of parts warranty and Lifetime of labor warranty is generally provided by the manufacturer.
