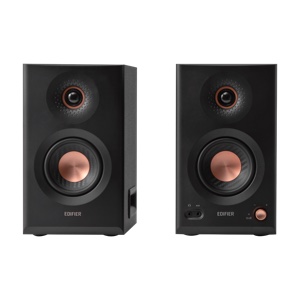

Edifier MR5 is a 3-way Powered Bass Reflex Bookshelf speaker by Edifier. It was released in June 2025. MR5's built-in amplifier provides 110-watt RMS. The built-in power amplifier saves space & eliminates the need to connect Edifier MR5 to a stereo receiver or external power amp. It features a 1" Soft-Dome Tweeter, 1 x 3.75" Midrange and 1 x 5" Woofer.
Edifier publishes 10.38 kg as the net weight of the PAIR, so the weight columns are left empty. Active speaker 280 mm deep, passive 257 mm; the row carries the active one. Three-way and tri-amped: 30, 15 and 10 watts per side with active crossovers at 155 Hz and 2.6 kHz. Hi-Res Audio and Hi-Res Audio Wireless certified, LDAC. No subwoofer output, no USB, no optical. Signal-to-noise ratio 85 dB(A).
The speaker has a frequency range of 46-40k Hz. Edifier MR5 has an MSRP of 350$ per pair.
Edifier's MR Series of Loudspeakers
MR5 is a member of Edifier's MR series of Powered speakers. Below you can see the main specs of these speakers.
See all 4 Edifier MR models compared »
Edifier MR Series Speakers
Frequency Response of the Edifier MR5 Speaker
Edifier MR5 has a Frequency response range of 46-40k Hz. With a minimum frequency of 46 Hz, MR5 will provide an average bass depth. Unfortunately, the Edifier MR5 speaker lacks a subwoofer output, making it impossible to connect a subwoofer and enhance the bass response of your system.
Here we have a comparison of how MR5's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Crossover frequency of the Edifier MR5?
The crossover points of the MR5 are set at 155Hz, 2600Hz.
Bluetooth Connectivity
Edifier MR5 employs Built-in 6.0 Bluetooth for wireless music streaming from your Bluetooth-enabled devices such as Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows PC, Mac computers/laptops. MR5 can playback up to 24-bit / 96 kHz with compatible devices.
Edifier MR5 supports the following Bluetooth Codecs when used with supported devices:
App-Based Control
Edifier MR5 can be controlled wirelessly via EDIFIER ConneX application available on Apple iOS and Android.
Inputs and Outputs
- 3.5mm Minijack Input
- RCA Input
- Headphone Jack: 3.5mm
Edifier MR5 External Dimensions and Weight
Edifier MR5 has external dimensions of (Height x Width x Depth) 10.4 x 6.3 x 11inch (264.0 x 159.0 x 280.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Edifier MR5 is approximately 445.2cm2 / 69.0inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
Cabinet type and Materials
Edifier MR5 has a
Bass Reflex type cabinet. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Edifier MR5 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Available colors
Edifier MR5 is available in Black and White.
Wall Mounting
MR5 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Recommended Accessories
Here is a list of accessories that we think you may need for the Edifier MR5.
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
Official Product Page
Official manufacturer's product page for the Edifier MR5 speaker can be found below:
Official Product Page for Edifier MR5
