Bowers Wilkins CWM663 Review
Bowers & Wilkins Performance Series CWM663

Main Features

  • 1" Soft-Dome Tweeter
  • 6" Kevlar Woofer
  • 45-50kHz Frequency Response
  • 88 dB Sensitivity
  • Impedance: 8ohms
  • Power Range: 25-150watts
  • Dimensions(HxWxD): 11.0000"x7.2500"x3.7500" / 280.0 x 185.0 x 96.0mm
CHECK PRICE

Compare To

x
Add a Speaker for comparison
B&W CWM663 Review
B&W CWM663 B&W CWM663
See at AMAZON

Bowers & Wilkins Performance Series CWM663 is a 2-way Passive In-wall In-wall speaker by Bowers Wilkins. It features a 1" Soft-Dome Tweeter and 1 x 6" Kevlar Woofer. The speaker has a frequency range of 45-50kHz and a sensitivity of 88 dB. B&W CWM663 has an MSRP of 900$ per pair.

Room Size Suitability

The size of the room where you plan to use the B&W CWM663 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:

Listening Environment* Suitability
Near-fieldPoor
Small RoomAverage
Mid-size RoomGood
Large RoomAverage
Very Large RoomPoor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Frequency Response of the B&W CWM663 Speaker

B&W CWM663 has a Frequency response range of 45-50kHz at ±3dB and Power Range of 25-150 watts. With a minimum frequency of 45 Hz, CWM663 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.

To focus on the subwoofers that are in a similar price range with B&W CWM663, check out the Powered Subwoofers under $1000. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how CWM663's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
In-wall Speakers
B&W CWM663
Min
Average
Max
High Frequency
In-wall Speakers
B&W CWM663
Min
Average
Max

Impedance and Sensitivity

B&W CWM663's nominal impedance level is 8 ohms and has a sensitivity of 88 dB.

Sensitivity
In-wall Speakers
B&W CWM663
Min
Average
Max

8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Bowers & Wilkins Performance Series CWM663 is not considered a difficult to drive speaker from nominal Impedance perspective.

Sensitivity

88dB of the Bowers & Wilkins Performance Series CWM663 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise.

Check the amplifiers that are in a similar price range to the B&W CWM663:

  • Integrated Amps under 750 USD
  • Integrated Amps under 1000 USD
  • Integrated Amps under 1500 USD
  • All Integrated Amplifiers

Input Type

CWM663 features Spring post type connectors. Bi-amping and Bi-wiring are not possible.

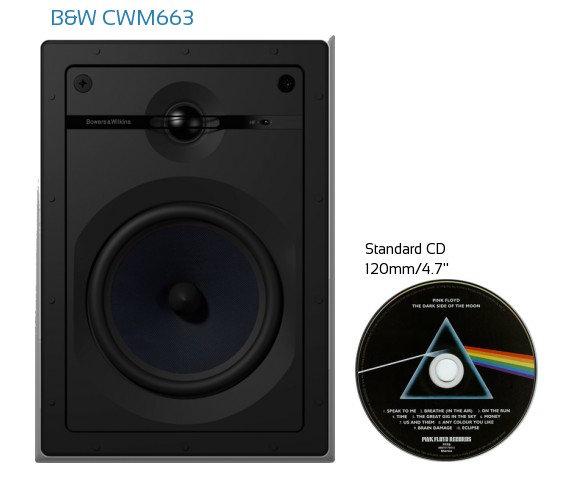

B&W CWM663 External Dimensions and Weight

B&W CWM663 has external dimensions of (Height x Width x Depth) 11.0000-inch x 7.2500-inch x 3.7500-inch (280.0 x 185.0 x 96.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of B&W CWM663 is approximately 177.6cm2 / 27.5inch2.

Cabinet type and Materials

B&W CWM663 has a In-wall type cabinet.

What's in the Box of B&W CWM663?

Here are the items that are included inside the box of CWM663:
  • 2 In-wall loudspeakers
  • 2 Mounting frames
  • 2 Grilles
  • 2 Paint mask
  • 2 Cut-out templates
  • Quick Start Guide
  • Template
  • Warranty Information
  • Recommended Accessories

    Here is a list of accessories that we think you may need for the Bowers & Wilkins Performance Series CWM663.

    • Speaker Cable and Connectors
      • Speaker Cables with Banana Plugs: If you know the lenght of the cable you need, this is the easier option to connect your speakers with your amp.
      • Speaker Cables without Connectors: If you are not sure about the lenght or need longer than standard cables with plugs, choose this option.
      • Banana Connectors and Plugs: If you chose the cables without connectors option or already have some cable around, pick the banana plugs separately.
    • Vibration Isolators: IsoAcoustics isolators more affordable options too.
    • Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.

    Warranty

    5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

    Bowers & Wilkins Performance Series CWM663 Alternatives in Passive In-wall Speakers
    Model Type Sensitivity Impedance Frequency
    B&W CWM664
    Compare
    2-way 87.5 dB 8 ohms 45-35kHz
    Sonos In-wall Speakers
    Compare
    2-way 89 dB 8 ohms 44-20kHz
    Focal 300 IW 6
    Compare
    2-way 90 dB 8 ohms 55-28kHz
    Focal 100 IW LCR5
    Compare
    2-way 90.5 dB 8 ohms 55-23kHz
    B&W CWM652
    Compare
    2-way 86 dB 8 ohms 54-50kHz
    B&W CWM362
    Compare
    2-way 89 dB 8 ohms 50-30kHz
    Definitive UIW RLS III
    Compare
    2-way 92 dB 8 ohms 24-30kHz
    Monitor Audio W250-LCR
    Compare
    2-way 88 dB 8 ohms 60-30kHz
    Frequently Asked Questions about Bowers & Wilkins Performance Series CWM663
    What is the External Dimensions of Bowers & Wilkins Performance Series CWM663
    What is the Speaker Sensitivity of Bowers & Wilkins Performance Series CWM663
    is the Bowers & Wilkins Performance Series CWM663 an easy to drive speaker?

    B&W CWM663 Detailed Specifications

    General
    BrandBowers Wilkins
    Full Model NameBowers & Wilkins Performance Series CWM663
    Speaker Type2-way In-wall
    Power Range25-150 watts
    Sensitivity88 dB
    Impedance8 ohms
    Frequency Response45-50kHz
    DRIVERS
    Woofer Size6-inch
    Woofer CompositionKevlar
    Woofer SurroundRubber
    Tweeter Size1-inch
    Tweeter TypeSoft-Dome
    Aimable TweeterNo
    Midrange SizeN/A-inch

    CONNECTIONS
    Connector TypeSpring post
    Biamp InputsNo
    PHYSICAL SPECS
    Height280.0mm ( 11.0000-inch)
    Width185.0mm ( 7.2500-inch)
    Depth96.0mm ( 3.7500-inch)
    Height280.0mm ( 11.0000-inch)
    Weightkg ( lbs)
    EnclosureIn-wall
    Moisture ResistanceNo
    OTHER
    Handheld RemoteNo
    Parts Warranty5 Years
    Labor Warranty5 Years
