In this review, we will be comparing In-wall Speakers and CWM663, two Passive In-wall speakers from Sonos and Bowers Wilkins.
Let's have a brief look at the main features
of Sonos In-wall Speakers and B&W CWM663 first before getting into our more
detailed comparison.
| Key Specs | Sonos In-wall Speakers | B&W CWM663 |
|---|
| Brand | Sonos
United States · founded 2002 | Bowers Wilkins
United Kingdom · founded 1966 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Soft-Dome | 1" Soft-Dome |
|---|
| Woofer | 6.5" Polypropylene | 6" Kevlar |
|---|
| Frequency response | 44-20kHz | 45-50kHz |
|---|
| Sensitivity | 89 dB | 88 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | up to 130 watts | 25-150 watts |
|---|
| Weight | 2.09kg / 4.6lbs | — |
|---|
| Dimensions (H x W x D) | 10.7500" x 6.9375" x 3.6250"
274.0 x 177.0 x 93.0mm | 11.0000" x 7.2500" x 3.7500"
280.0 x 185.0 x 96.0mm |
|---|
What size room are the Sonos In-wall Speakers and B&W CWM663 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Sonos In-wall Speakers |
B&W CWM663 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both In-wall Speakers and CWM663 are 2-way speakers.
Sonos In-wall SpeakersB&W CWM663
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Sonos In-wall Speakers |
B&W CWM663 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6-inch
|
In-wall Speakers features a 1" Soft-Dome Tweeter and 1 x 6.5" Polypropylene Woofer. On the other hand, the CWM663 features a 1" Soft-Dome Tweeter and 1 x 6" Kevlar Woofer.
Frequency Response
In-wall Speakers has a frequency range of 44-20kHz whereas CWM663 has a frequency range of 45-50kHz. With a minimum frequency of 44Hz, the In-wall Speakers can go slightly deeper then the CWM663's min frequency of 45Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
In-wall Speakers and CWM663 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. In-wall Speakers sensitivity is rated at 89 dB and the CWM663's is at 88 dB. This 1 dB difference makes the Sonos In-wall Speakers a more sensitive speaker compared to B&W CWM663, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
CWM663 can handle a max power of 150 watts RMS, whereas In-wall Speakers has a max power handling value of 130 watts RMS, 20 watts less than the CWM663.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
In-wall Speakers features Spring post type posts and CWM663 has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Sonos In-wall Speakers's and B&W CWM663's external dimensions. Sonos In-wall Speakers has external dimensions of 274.0 x 177.0 x 93.0mm (10.7500-inch x 6.9375-inch x 3.6250-inch) whereas B&W CWM663 has external dimensions of 280.0 x 185.0 x 96.0mm (11.0000-inch x 7.2500-inch x 3.7500-inch).
B&W CWM663 is clearly the larger of the two speakers. Its body is 8mm wider, 6mm taller and 3mm deeper than Sonos In-wall Speakers.

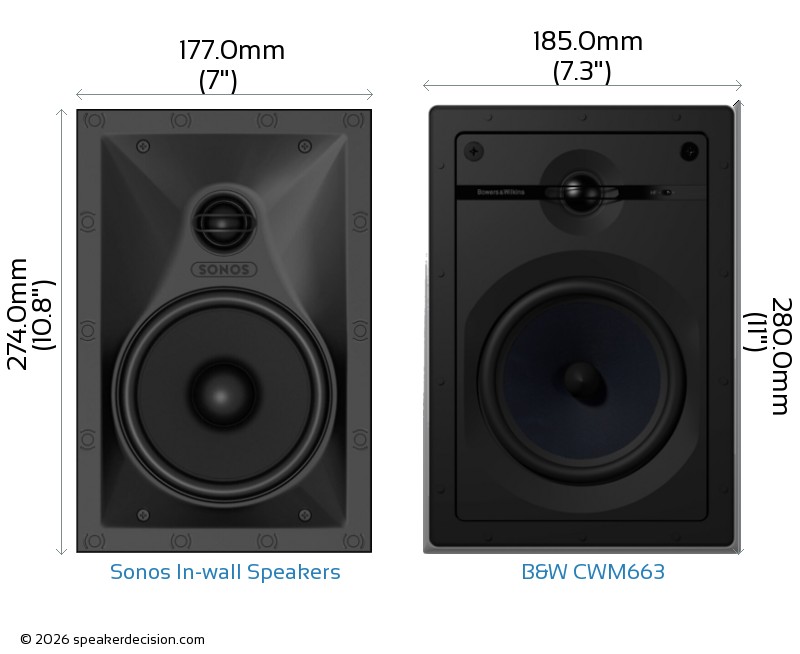

Below you can see the front view size comparison of Sonos In-wall Speakers and B&W CWM663 in scale.
Comparison image of Sonos In-wall Speakers and B&W CWM663 Size and External Dimensions
What's in the Box of Sonos In-wall Speakers?
Here are the items that are included inside the box of In-wall Speakers:
- 2 In-wall loudspeakers
- 2 Grilles
- 2 Cutout Templates
What's in the Box of B&W CWM663?
Here are the items that come with the CWM663:
- 2 In-wall loudspeakers
- 2 Mounting frames
- 2 Grilles
- 2 Paint mask
- 2 Cut-out templates
- Quick Start Guide
- Template
- Warranty Information
