In this review, we will be comparing two different type of speakers by JBL. JBL Stage A190 is a Floor-standing speaker whereas the Stage 260W is a In-wall speaker.
Let's have a brief look at the main features
of JBL Stage A190 and JBL Stage 260W first before getting into our more
detailed comparison.
A190 and Stage 260W are members of JBL's Stage series of speakers. Below you can find the loudspeakers from this series.
What size room are the JBL Stage A190 and JBL Stage 260W speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the JBL Stage A190 and JBL Stage 260W compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both A190 and Stage 260W are 2-way speakers.
| Driver |
JBL Stage A190 |
JBL Stage 260W |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 8-inch
|
1 x 6.5-inch
|
A190 features a 1" aluminum HDI (High Definition Imaging) waveguide Tweeter and 2 x 8" Polycellulose Woofer . On the other hand, the Stage 260W features a 1" Horn-Loaded Tweeter and 1 x 6.5" Polycellulose Woofer .
Frequency Response
A190 has a frequency range of 36-40k Hz whereas Stage 260W has a frequency range of 50-25kHz. With a minimum frequency of 36Hz, the A190 can go significantly deeper on the low side and provide stronger bass compared to the Stage 260W's min frequency of 50Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
A190 is a 6 ohms speaker compared to the Stage 260W which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. A190 sensitivity is rated at 91 dB and the Stage 260W's is rated at 87 dB. This 4 dB difference makes the JBL Stage A190 a more sensitive speaker compared to JBL Stage 260W, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
A190 can handle a max power of 225 watts RMS from the amp the whereas Stage 260W has a max power handling value of 100 watts RMS, 125 watts less than the A190.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
A190 features 5-Way post posts which make bi-amping or bi-wiring possible. Stage 260W has a Spring clip which doesn't feature bi-amping/bi-wiring.
Physical Specs

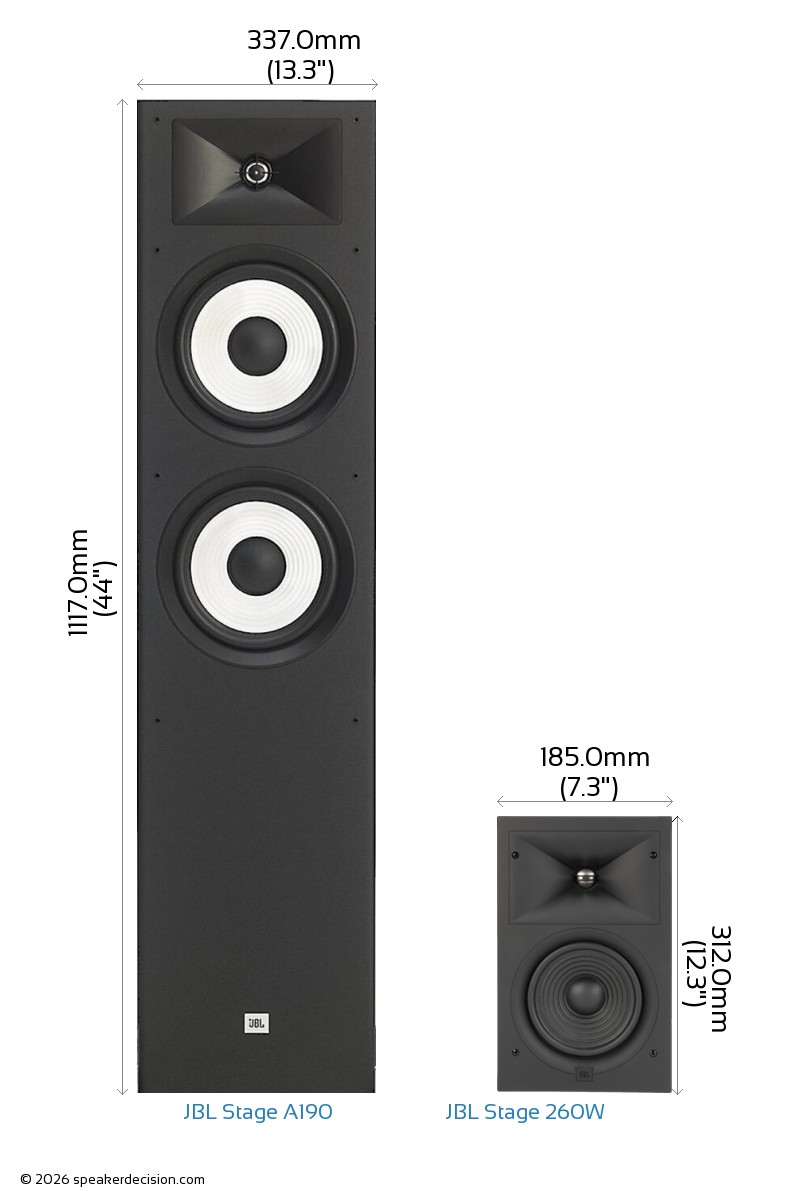

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Stage A190's and JBL Stage 260W's external dimensions. JBL Stage A190 has external dimensions of 1117.0 x 337.0 x 445.0mm ( 43-15/16 x 13-1/4 x 17-1/2inch) whereas JBL Stage 260W has external dimensions of 312.0 x 185.0 x 91.0mm ( 12.2500-inch x 7.2500-inch x 3.5625-inch) .
JBL Stage A190 is clearly the larger of the two speakers. Its body is 152mm wider, 805mm taller and 354mm deeper than JBL Stage 260W.
What's in the Box of JBL Stage A190?
Here are the items that are included inside the box of A190:
Floorstanding loudspeakerGrille4 Outriggers4 Rubber feet4 Spikes8 Screws2 Terminal jumpers (pre-installed)Owners ManualWarranty Card
What's in the Box of JBL Stage 260W?
Here are the items that come with the Stage 260W:
In-wall loudspeakerGrilleCut-Out TemplateQuick Start Guide
