In this review, we will be comparing R-8SW and R-120SW, two Powered Subwoofer speakers by Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch R-8SW and Klipsch R-120SW first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both Klipsch R-8SWand Klipsch R-120SW have a single woofer setup however the Klipsch R-8SW's woofer is 8-inch whereas the Klipsch R-120SW features a 12-inch woofer.
Frequency Response
R-8SW has a frequency range of 38-120 Hz whereas R-120SW has a frequency range of 29-120 Hz. With a minimum frequency of 29Hz, the R-120SW can go significantly deeper on the low side and provide stronger bass compared to the R-8SW's min frequency of 38Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch R-8SW has a Bass Reflex type cabinet. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs. On the other hand the Klipsch R-120SW have Bass reflex type enclosure.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-8SW's and Klipsch R-120SW's external dimensions. Klipsch R-8SW has external dimensions of 335.0 x 299.0 x 345.0mm (13-3/16 x 11-3/4 x 13-9/16inch) whereas Klipsch R-120SW has external dimensions of 423.0 x 358.0 x 532.0mm (16-5/8 x 14-1/16 x 20-15/16inch).
Klipsch R-120SW is clearly the larger of the two speakers. Its body is 59mm wider, 88mm taller and 187mm deeper than Klipsch R-8SW.

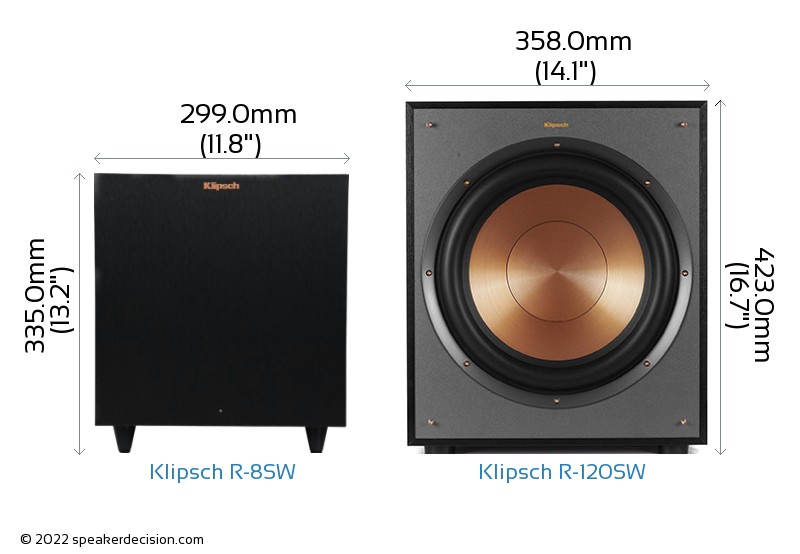

Below you can see the front view size comparison of Klipsch R-8SW and Klipsch R-120SW in scale.
Comparison image of Klipsch R-8SW and Klipsch R-120SW Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-8SW is approximately 1031.6cm2 / 159.9inch2 and base area of the Klipsch R-120SW is approximately 1904.6cm2 / 295.2inch2. The R-8SW requires 46% less surface area than the R-120SW which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch R-8SW weighs 6.82kg / 15lbs and the Klipsch R-120SW weighs 14.09kg / 31lbs. This makes the R-120SW 107% heavier than the R-8SW.
Here is a comparison of how R-8SW and R-120SW's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch R-8SW?
Here are the items that are included inside the box of R-8SW:
- Powered sub
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Sheet
What's in the Box of Klipsch R-120SW?
Here are the items that come with the R-120SW:
- Powered sub
- Grille (installed)
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
 Height |
335mm
vs
423mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1031cm2
vs
1904cm2
|
Takes less floor space |
 Price per pair* |
349USD
vs
599USD
|
costs less (*prices may change depending on the seller, location and time) |
 Woofer Size |
12 inches
vs
8 inches
|
Larger woofer |
| Low Frequency Response |
29 Hz
vs
38 Hz
|
Generates deeper bass |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch R-120SW needs about 85% more floor area. Klipsch R-120SW stands 187mm further into the room. Klipsch R-120SW is 88mm taller.
| General |
Klipsch Reference R-8SW |
Klipsch R-120SW |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
50 watts |
200 watts |
| Frequency Response |
38-120 Hz |
29-120 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
50-watt RMS |
200-watt RMS |
| Watts Peak (Max) |
n/a |
400-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
8" |
12" |
| Woofer Composition |
Copper IMG |
Copper-spun IMG |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
335.0mm (13.2") |
423.0mm (16.7") |
| Width |
299.0mm (11.8") |
358.0mm (14.1") |
| Depth |
345.0mm (13.6") |
532.0mm (20.9") |
| Weight |
6.82kg (15lbs) |
14.09kg (31lbs) |
| Enclosure |
Bass Reflex |
Bass reflex |
| Grille |
n/a |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
Siblings in Klipsch's Reference (R) Subwoofer range - same design thinking, different size. It comes down to your room and your budget.
| Area | Better | Why |
|---|
| Bass depth | B | Klipsch R-120SW goes deeper - 29Hz against 38Hz. A real difference, though most music has little content below 38Hz. |
| Amplifier power | B | Klipsch R-120SW has the bigger amplifier - 200W against 50W RMS, about 6dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | B | Klipsch R-120SW moves more air: 12" against 8" is 2.25x the cone area, not the 1.5x the diameters suggest. More area means the same output with less excursion, and less distortion with it. |
| Enclosure | evenly matched | Both are ported designs, so they roll off in much the same way. |
| Driver placement | depends | Klipsch R-8SW fires down and Klipsch R-120SW fires front. A down-firing driver is more forgiving of a grille-less look and of a hard floor; a front-firing one is the safer choice on a thick carpet or a suspended timber floor. |
| Cabinet size | depends | Klipsch R-8SW is about 57% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Price | A | Klipsch R-8SW costs less - $349 against $599, about 42% less. |
A Klipsch R-8SW B Klipsch R-120SW
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
The usual trade-off: Klipsch R-120SW measures better, Klipsch R-8SW costs about 42% less. In a normal room, placement will make a bigger difference than the gap between these two. Two small subwoofers beat one big one in most rooms - a pair evens out the room modes in a way no single box can, whatever its specs. At $349 each, two Klipsch R-8SW cost about $698 against $599 for one of the other, which is worth a thought. If placement is the constraint - a corner, behind a sofa, under a desk - Klipsch R-8SW is the one that will actually go there, and a well-placed small subwoofer beats a badly-placed big one every time.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
