In this review, we will be comparing R-120SW and R-112SW, two Powered Subwoofer speakers by Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch R-120SW and Klipsch R-112SW first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Klipsch R-120SWand Klipsch R-112SW have the same driver set up: Both subwoofers have 1 x 12" drivers.
Frequency Response
R-120SW has a frequency range of 29-120 Hz whereas R-112SW has a frequency range of 24-125 Hz. With a minimum frequency of 24Hz, the R-112SW can go significantly deeper on the low side and provide stronger bass compared to the R-120SW's min frequency of 29Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch R-120SW has a Bass reflex type cabinet. On the other hand the Klipsch R-112SW have Bass Reflex type enclosure. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-120SW's and Klipsch R-112SW's external dimensions. Klipsch R-120SW has external dimensions of 423.0 x 358.0 x 532.0mm (16-5/8 x 14-1/16 x 20-15/16inch) whereas Klipsch R-112SW has external dimensions of 442.0 x 391.0 x 532.0mm (17-3/8 x 15-3/8 x 20-15/16inch).

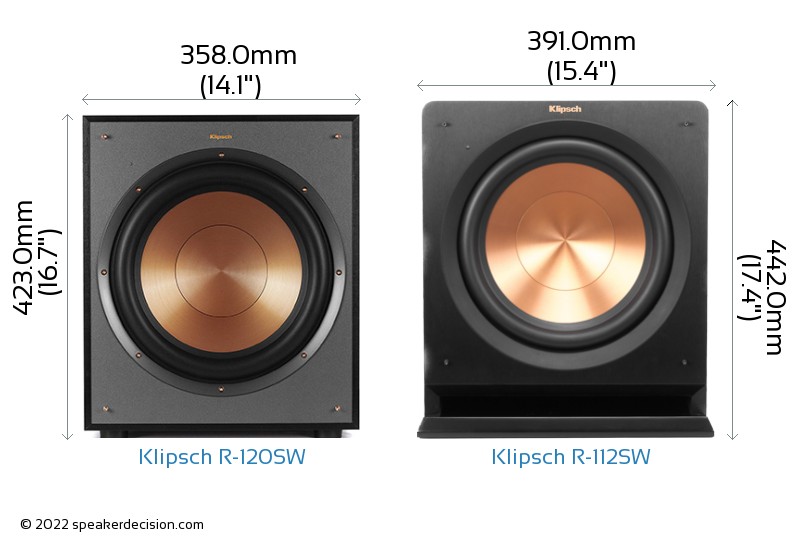

Below you can see the front view size comparison of Klipsch R-120SW and Klipsch R-112SW in scale.
Comparison image of Klipsch R-120SW and Klipsch R-112SW Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-120SW is approximately 1904.6cm2 / 295.2inch2 and base area of the Klipsch R-112SW is approximately 2080.1cm2 / 322.4inch2. The R-120SW requires 8% less surface area than the R-112SW which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch R-120SW weighs 14.09kg / 31lbs and the Klipsch R-112SW weighs 22.16kg / 48.8lbs. This makes the R-112SW 57% heavier than the R-120SW.
Here is a comparison of how R-120SW and R-112SW's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch R-120SW?
Here are the items that are included inside the box of R-120SW:
- Powered sub
- Grille (installed)
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Klipsch R-112SW?
Here are the items that come with the R-112SW:
- Powered subwoofer
- Grille
- 8.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
 Base Surface Area |
1904cm2
vs
2080cm2
|
Takes less floor space |
 Low Frequency Response |
24 Hz
vs
29 Hz
|
Generates deeper bass |
 High Frequency Response |
125 Hz
vs
120 Hz
|
Generates higher frequency |
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
 Price per pair* |
399USD
vs
599USD
|
costs less (*prices may change depending on the seller, location and time) |
 Wireless Operation |
Optional
vs
No
|
Connect your subwoofer to your system wireless |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch R-112SW needs about 9% more floor area.
| General |
Klipsch R-120SW |
Klipsch Reference R-112SW |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
200 watts |
300 watts |
| Frequency Response |
29-120 Hz |
24-125 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
200-watt RMS |
300-watt RMS |
| Watts Peak (Max) |
400-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
12" |
| Woofer Composition |
Copper-spun IMG |
Cerametallic |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
rear |
front |
Physical Specs |
|
|
| Height |
442.0mm (17.4") |
442.0mm (17.4") |
| Width |
358.0mm (14.1") |
391.0mm (15.4") |
| Depth |
532.0mm (20.9") |
532.0mm (20.9") |
| Weight |
14.09kg (31lbs) |
22.16kg (48.8lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
Siblings in Klipsch's Reference (R) Subwoofer range - same design thinking, different size. It comes down to your room and your budget.
| Area | Better | Why |
|---|
| Bass depth | B | Klipsch R-112SW goes deeper - 24Hz against 29Hz. A real difference, though most music has little content below 29Hz. |
| Amplifier power | B | Klipsch R-112SW has the bigger amplifier - 300W against 200W RMS, about 1.8dB more on tap. In a large room that is headroom before the DSP starts limiting. |
| Driver area | evenly matched | Near-identical radiating area (12" against 12"). |
| Enclosure | evenly matched | Both are ported designs, so they roll off in much the same way. |
| Wireless option | depends | Only Klipsch R-112SW offers a wireless link (as a paid option). It decides where the sub can go if you cannot run a cable, and is worth nothing if you can. |
| Price | B | Klipsch R-112SW costs less - $399 against $599, about 33% less. |
A Klipsch R-120SW B Klipsch R-112SW
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch R-112SW is the easier recommendation: it leads on most of the measured areas and costs less. Take Klipsch R-120SW if one of the "depends" rows describes your room.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
