In this review, we will be comparing R-120SW and R-10SWi, two Powered Subwoofer speakers by Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch R-120SW and Klipsch R-10SWi first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both Klipsch R-120SWand Klipsch R-10SWi have a single woofer setup however the Klipsch R-120SW's woofer is 12-inch whereas the Klipsch R-10SWi features a 10-inch woofer.
Frequency Response
R-120SW has a frequency range of 29-120 Hz whereas R-10SWi has a frequency range of 32-120 Hz. With a minimum frequency of 29Hz, the R-120SW can go slightly deeper then the R-10SWi's min frequency of 32Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch R-120SW has a Bass reflex type cabinet. On the other hand the Klipsch R-10SWi have Bass Reflex type enclosure. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Klipsch R-10SWi Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-120SW's and Klipsch R-10SWi's external dimensions. Klipsch R-120SW has external dimensions of 423.0 x 358.0 x 532.0mm (16-5/8 x 14-1/16 x 20-15/16inch) whereas Klipsch R-10SWi has external dimensions of 370.0 x 318.0 x 462.0mm (14-9/16 x 12-1/2 x 18-3/16inch).
Klipsch R-120SW is clearly the larger of the two speakers. Its body is 40mm wider, 53mm taller and 70mm deeper than Klipsch R-10SWi.

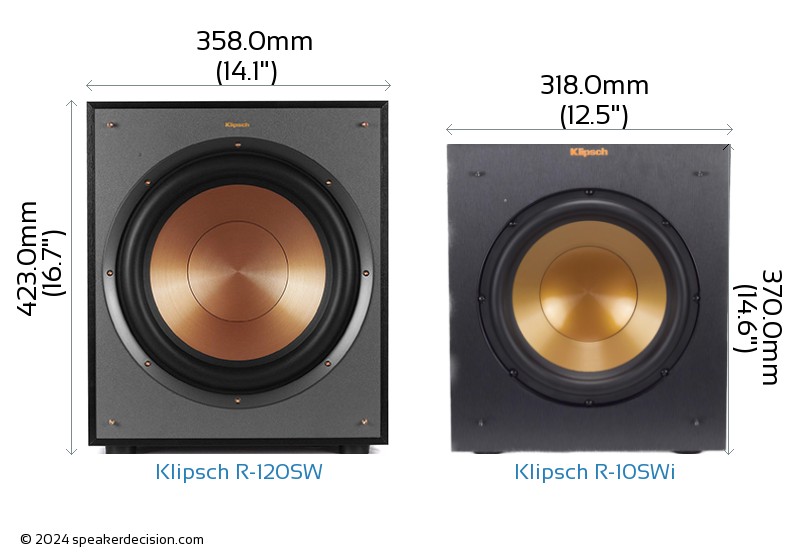

Below you can see the front view size comparison of Klipsch R-120SW and Klipsch R-10SWi in scale.
Comparison image of Klipsch R-120SW and Klipsch R-10SWi Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-120SW is approximately 1904.6cm2 / 295.2inch2 and base area of the Klipsch R-10SWi is approximately 1469.2cm2 / 227.7inch2. The R-120SW requires 30% more surface area than the R-10SWi which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch R-120SW weighs 14.09kg / 31lbs and the Klipsch R-10SWi weighs 11.59kg / 25.5lbs. This makes the R-120SW 22% heavier than the R-10SWi.
Here is a comparison of how R-120SW and R-10SWi's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch R-120SW?
Here are the items that are included inside the box of R-120SW:
- Powered sub
- Grille (installed)
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Klipsch R-10SWi?
Here are the items that come with the R-10SWi:
- Powered sub
- Wireless transmitter (attached 12
 Woofer Size |
12 inches
vs
10 inches
|
Larger woofer |
| Low Frequency Response |
29 Hz
vs
32 Hz
|
Generates deeper bass |
 Height |
370mm
vs
423mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1469cm2
vs
1904cm2
|
Takes less floor space |
 Wireless Operation |
Yes
vs
No
|
Connect your subwoofer to your system wireless |
| General |
Klipsch R-120SW |
Klipsch Reference R-10SWi |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
200 watts |
150 watts |
| Frequency Response |
29-120 Hz |
32-120 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
200-watt RMS |
150-watt RMS |
| Watts Peak (Max) |
400-watt RMS |
300-watt RMS |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
12" |
10" |
| Woofer Composition |
Copper-spun IMG |
Copper IMG |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
423.0mm (16.7") |
370.0mm (14.6") |
| Width |
358.0mm (14.1") |
318.0mm (12.5") |
| Depth |
532.0mm (20.9") |
462.0mm (18.2") |
| Weight |
14.09kg (31lbs) |
11.59kg (25.5lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
