In this review, we will be comparing R-100SW and R-112SW, two Powered Subwoofer speakers by Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch R-100SW and Klipsch R-112SW first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Both Klipsch R-100SWand Klipsch R-112SW have a single woofer setup however the Klipsch R-100SW's woofer is 10-inch whereas the Klipsch R-112SW features a 12-inch woofer.
Frequency Response
R-100SW has a frequency range of 32-120 Hz whereas R-112SW has a frequency range of 24-125 Hz. With a minimum frequency of 24Hz, the R-112SW can go significantly deeper on the low side and provide stronger bass compared to the R-100SW's min frequency of 32Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch R-100SW has a Bass reflex type cabinet. On the other hand the Klipsch R-112SW have Bass Reflex type enclosure. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-100SW's and Klipsch R-112SW's external dimensions. Klipsch R-100SW has external dimensions of 372.0 x 320.0 x 459.0mm (14-5/8 x 12-9/16 x 18-1/16inch) whereas Klipsch R-112SW has external dimensions of 442.0 x 391.0 x 532.0mm (17-3/8 x 15-3/8 x 20-15/16inch).
Klipsch R-112SW is clearly the larger of the two speakers. Its body is 71mm wider, 70mm taller and 73mm deeper than Klipsch R-100SW.

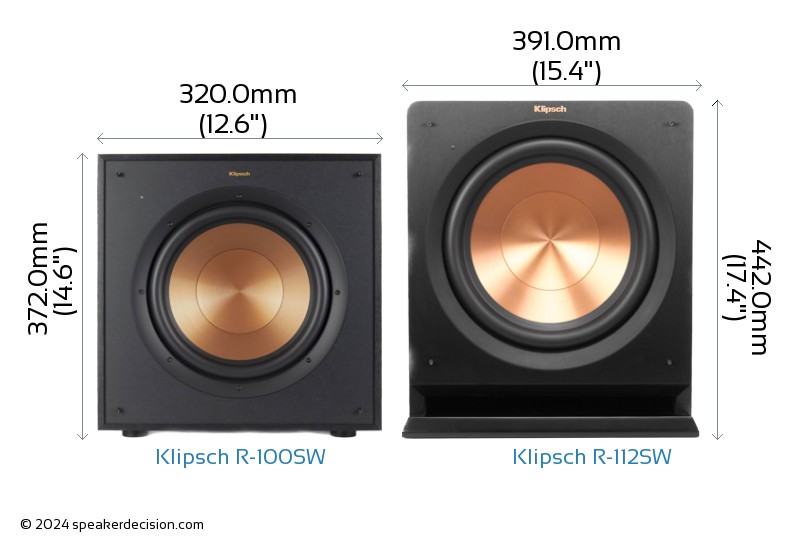

Below you can see the front view size comparison of Klipsch R-100SW and Klipsch R-112SW in scale.
Comparison image of Klipsch R-100SW and Klipsch R-112SW Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-100SW is approximately 1468.8cm2 / 227.7inch2 and base area of the Klipsch R-112SW is approximately 2080.1cm2 / 322.4inch2. The R-100SW requires 29% less surface area than the R-112SW which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch R-100SW weighs 10.91kg / 24lbs and the Klipsch R-112SW weighs 22.16kg / 48.8lbs. This makes the R-112SW 103% heavier than the R-100SW.
Here is a comparison of how R-100SW and R-112SW's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch R-100SW?
Here are the items that are included inside the box of R-100SW:
- Powered sub
- Grille (installed)
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Klipsch R-112SW?
Here are the items that come with the R-112SW:
- Powered subwoofer
- Grille
- 8.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
 Height |
372mm
vs
442mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1468cm2
vs
2080cm2
|
Takes less floor space |
 Price per pair* |
275USD
vs
399USD
|
costs less (*prices may change depending on the seller, location and time) |
 Woofer Size |
12 inches
vs
10 inches
|
Larger woofer |
| Low Frequency Response |
24 Hz
vs
32 Hz
|
Generates deeper bass |
 High Frequency Response |
125k Hz
vs
120k Hz
|
Generates higher frequency |
 Wireless Operation |
Optional
vs
No
|
Connect your subwoofer to your system wireless |
| General |
Klipsch R-100SW |
Klipsch Reference R-112SW |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
150 watts |
300 watts |
| Frequency Response |
32-120 Hz |
24-125 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
150-watt RMS |
300-watt RMS |
| Watts Peak (Max) |
300-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
10" |
12" |
| Woofer Composition |
Copper-spun IMG |
Cerametallic |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
372.0mm (14.6") |
442.0mm (17.4") |
| Width |
320.0mm (12.6") |
391.0mm (15.4") |
| Depth |
459.0mm (18.1") |
532.0mm (20.9") |
| Weight |
10.91kg (24lbs) |
22.16kg (48.8lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
