In this review, we will be comparing R-100SW and R-101SW, two Powered Subwoofer speakers by Klipsch. Being Powered subwoofers, they both have built-in amplifiers so you don't need an external power amp or an integrated amp to power them. Let's have a brief look at the main features of Klipsch R-100SW and Klipsch R-101SW first before getting into our more detailed comparison.
The sections below take each area in turn: driver and amplifier, frequency response, physical size and connectivity.
Drivers
The efficiency of a subwoofer is directly proportional to the total radiating are squared hence the woofer quantity and diameter.Klipsch R-100SWand Klipsch R-101SW have the same driver set up: Both subwoofers have 1 x 10" drivers.
Frequency Response
R-100SW has a frequency range of 32-120 Hz whereas R-101SW has a frequency range of 29.5-160 Hz. With a minimum frequency of 30Hz, the R-101SW can go slightly deeper then the R-100SW's min frequency of 32Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Subwoofer class in our database.
Low Frequency
Subwoofer Speakers
High Frequency
Subwoofer Speakers
Cabinet Type
The Klipsch R-100SW has a Bass reflex type cabinet. On the other hand the Klipsch R-101SW have Bass Reflex type enclosure. Bass Reflex type subwoofers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-100SW's and Klipsch R-101SW's external dimensions. Klipsch R-100SW has external dimensions of 372.0 x 320.0 x 459.0mm (14-5/8 x 12-9/16 x 18-1/16inch) whereas Klipsch R-101SW has external dimensions of 370.0 x 358.0 x 529.0mm (14-9/16inch x 14-1/16inch x 20-13/16inch).
Klipsch R-100SW is 38mm narrower and 70mm less deeper than Klipsch R-101SW but it is also 2mm taller.

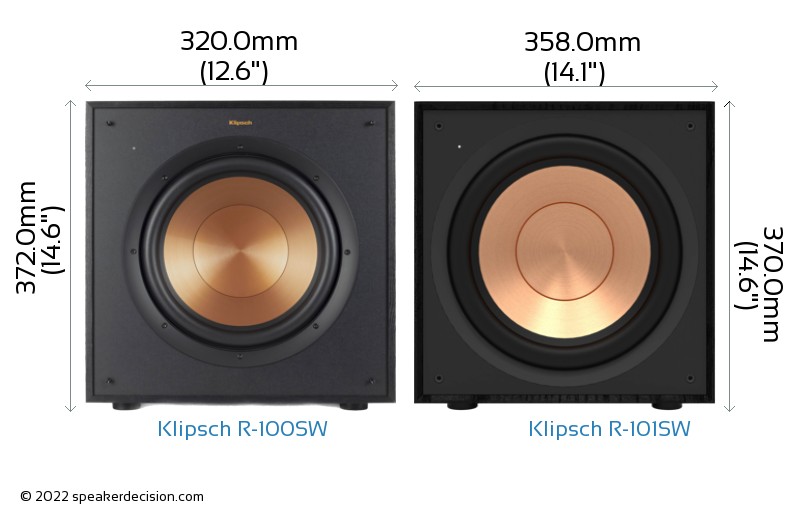

Below you can see the front view size comparison of Klipsch R-100SW and Klipsch R-101SW in scale.
Comparison image of Klipsch R-100SW and Klipsch R-101SW Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch R-100SW is approximately 1468.8cm2 / 227.7inch2 and base area of the Klipsch R-101SW is approximately 1893.8cm2 / 293.5inch2. The R-100SW requires 22% less surface area than the R-101SW which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a subwoofer may become an important factor if you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. The Klipsch R-100SW weighs 10.91kg / 24lbs and the Klipsch R-101SW weighs 13.91kg / 30.6lbs. This makes the R-101SW 27% heavier than the R-100SW.
Here is a comparison of how R-100SW and R-101SW's weights compare with the average, max and min weights in Powered Subwoofer class.
Weight
All Subwoofer Speakers
What's in the Box of Klipsch R-100SW?
Here are the items that are included inside the box of R-100SW:
- Powered sub
- Grille (installed)
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of Klipsch R-101SW?
Here are the items that come with the R-101SW:
- Powered subwoofer
- Grille
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
 Base Surface Area |
1468cm2
vs
1893cm2
|
Takes less floor space |
 Price per pair* |
275USD
vs
499USD
|
costs less (*prices may change depending on the seller, location and time) |
 Low Frequency Response |
30 Hz
vs
32 Hz
|
Generates deeper bass |
 High Frequency Response |
160 Hz
vs
120 Hz
|
Generates higher frequency |
 Height |
370mm
vs
372mm
|
Easier to fit in smaller spaces |
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch R-101SW needs about 29% more floor area. Klipsch R-101SW stands 70mm further into the room.
| General |
Klipsch R-100SW |
Klipsch Reference R-101SW |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Powered Subwoofer |
Powered Subwoofer |
| Max Amplifier Output |
150 watts |
150 watts |
| Frequency Response |
32-120 Hz |
29.5-160 Hz |
Amplifier |
|
|
| Watts RMS (Continuous) |
150-watt RMS |
150-watt RMS |
| Watts Peak (Max) |
300-watt RMS |
n/a |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
10" |
10" |
| Woofer Composition |
Copper-spun IMG |
Spun-Copper TCP |
| Tweeter Size |
- |
- |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
front |
front |
Physical Specs |
|
|
| Height |
372.0mm (14.6") |
370.0mm (14.6") |
| Width |
320.0mm (12.6") |
358.0mm (14.1") |
| Depth |
459.0mm (18.1") |
529.0mm (20.8") |
| Weight |
10.91kg (24lbs) |
13.91kg (30.6lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
2 Years |
2 Years |
| Labor Warranty |
2 Years |
2 Years |
Siblings in Klipsch's Reference (R) Subwoofer range - same design thinking, different size. It comes down to your room and your budget.
| Area | Better | Why |
|---|
| Bass depth | evenly matched | Effectively the same reach (32Hz vs 30Hz). |
| Amplifier power | evenly matched | Much the same amplifier (150W vs 150W RMS) - under 1dB apart. |
| Driver area | evenly matched | Near-identical radiating area (10" against 10"). |
| Enclosure | evenly matched | Both are ported designs, so they roll off in much the same way. |
| Cabinet size | depends | Klipsch R-100SW is about 22% smaller by volume. In a subwoofer that is a real trade rather than a preference: box volume is how you get output low down without a bigger amplifier. |
| Price | A | Klipsch R-100SW costs less - $275 against $499, about 45% less. |
A Klipsch R-100SW B Klipsch R-101SW
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both subwoofers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let your room size and where the box can actually stand settle it. Two small subwoofers beat one big one in most rooms - a pair evens out the room modes in a way no single box can, whatever its specs. At $275 each, two Klipsch R-100SW cost about $550 against $499 for one of the other, which is worth a thought.
One thing outweighs everything above: where the subwoofer stands. Room modes can add or remove 10dB or more at a given seat, which is far larger than any difference on this page. Before spending more, try the sub in two or three positions - the crawl test, where you put it in the listening seat and crawl the room to find where the bass sounds best, costs nothing and usually beats an upgrade.
