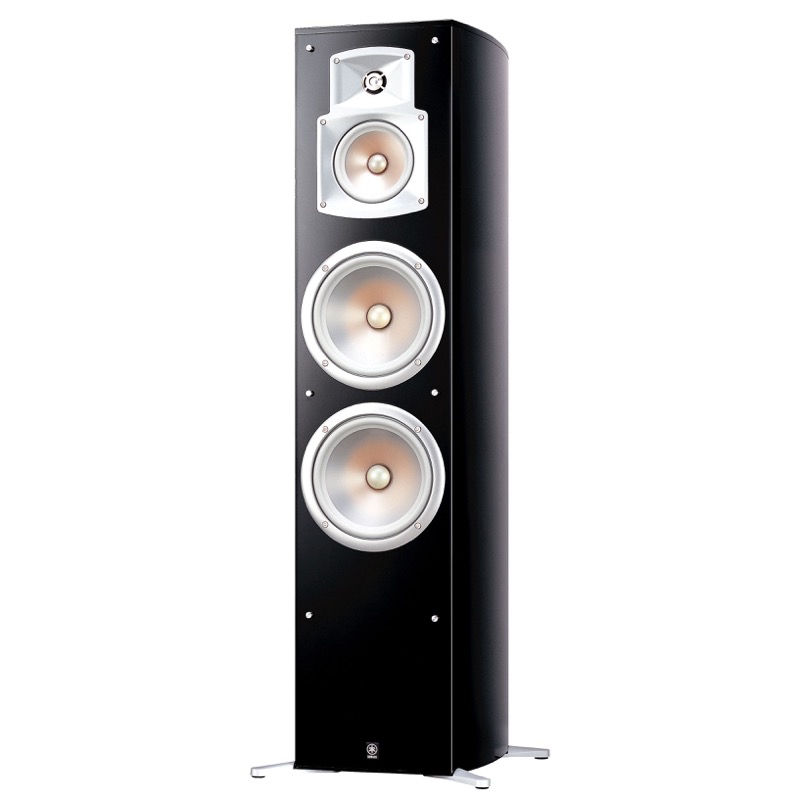

Yamaha NS-777 is a 3-way Passive Bass Reflex Floor-standing speaker by Yamaha. It was released in 2023. It features a 1" Aluminum dome with waveguide horn Tweeter, 1 x 5" Midrange and 2 x 8" PMD cone Woofer.
3-way bass-reflex floor-standing speaker with 2 x 8 inch pmd cone, a 5 inch cone with waveguide horn midrange and a 1 inch aluminum dome with waveguide horn tweeter. 89 dB sensitive, 6 ohms nominal, 30 Hz - 35 kHz.
The speaker has a frequency range of 30-35k Hz and a sensitivity of 89 dB. Yamaha NS-777 has an MSRP of 1200$ per pair.
Room Size Suitability
The size of the room where you plan to use the Yamaha NS-777 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Bad |
| Small Room | Poor |
| Mid-size Room | Average |
| Large Room | Good |
| Very Large Room | Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Yamaha's 777 Series Series of Loudspeakers
NS-777 is a member of Yamaha's 777 Series series of Passive speakers. Below you can see the main specs of these speakers.
See all 4 Yamaha 777 Series models compared »
Yamaha 777 Series Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the Yamaha NS-777 Speaker
Yamaha NS-777 has a Frequency response range of 30-35k Hz at ±3dB and Power Range of 100-250 watts. With a minimum frequency of 30 Hz, NS-777 delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how NS-777's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Floor-standing Speakers
Thinking about a subwoofer for the Yamaha NS-777?
Among the speakers in our database with a max MSRP price of 1500$ (Pair), there is only one Passive Floor-standing speaker that have the deeper bass levels than the Yamaha NS-777's 30Hz:
Impedance and Sensitivity
Yamaha NS-777's nominal impedance level is
6 ohms and has a sensitivity of
89 dB.
Sensitivity
Floor-standing Speakers
Nominal Impedance of the 6 Ohms makes the Yamaha NS-777 a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
89dB of the Yamaha NS-777 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Yamaha NS-777 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the Yamaha NS-777 need?
At normal listening levels in a medium room, about
13–200 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $1,500, or every amplifier we cover.
Input Type
NS-777 features Binding post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
Yamaha NS-777 External Dimensions and Weight
Yamaha NS-777 has external dimensions of (Height x Width x Depth) 43.3125 x 10.875 x 15.375inch (1100.1 x 276.2 x 390.5mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Yamaha NS-777 is approximately 1078.6cm2 / 167.2inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Yamaha NS-777 weighs 24.36kg / 53.6lbs per piece. Here is a comparison of how NS-777's weight compares with the average, max and min weights in its class.
Weight
All Floor-standing Speakers
Weight
Floor-standing Speakers under $1500
Cabinet type and Materials
Yamaha NS-777 has a
Bass Reflex type cabinet. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Does the Yamaha NS-777 come with a Grille?
NS-777 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Yamaha NS-777.
Official Product Page
Official manufacturer's product page for the Yamaha NS-777 speaker can be found below:
Official Product Page for Yamaha NS-777
