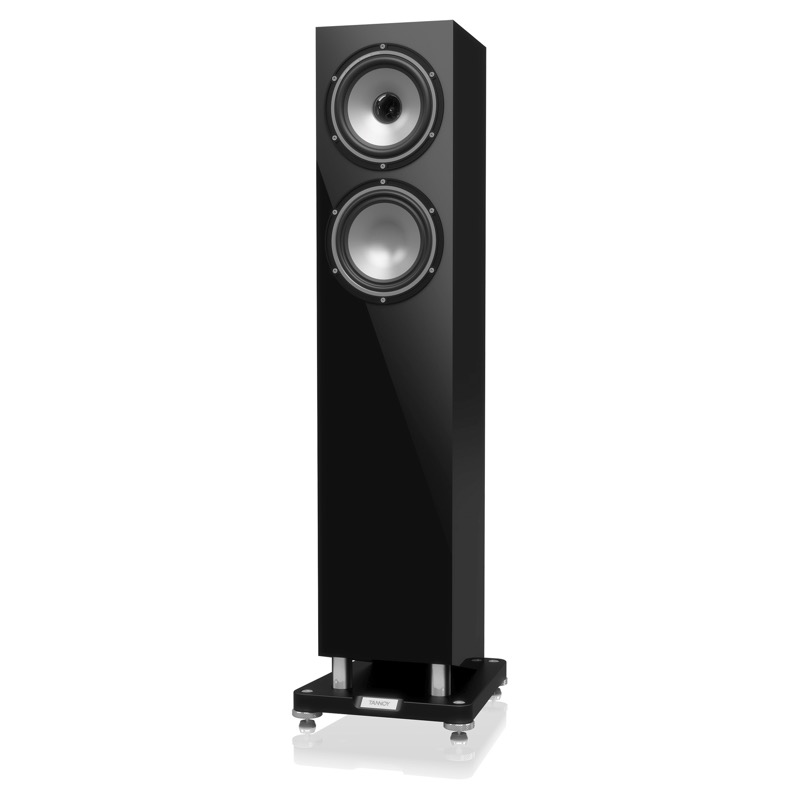

Tannoy Revolution XT 6F is a 3-way Passive Bass Reflex Floor-standing speaker by Tannoy. It was released in 2015. It features a Tweeter and x " Woofer.
150 mm (6") multi-fibre paper, 44 mm (1.75") voice coil Bass Driver: 150 mm (6") multi-fib.
The speaker has a frequency range of 38-32k Hz and a sensitivity of 90 dB. Tannoy Revolution XT 6F has an MSRP of 1998$ per pair.
Room Size Suitability
The size of the room where you plan to use the Tannoy Revolution XT 6F is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Frequency Response of the Tannoy Revolution XT 6F Speaker
Tannoy Revolution XT 6F has a Frequency response range of 38-32k Hz. With a minimum frequency of 38 Hz, Revolution XT 6F delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how Revolution XT 6F's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Floor-standing Speakers
Thinking about a subwoofer for the Tannoy Revolution XT 6F?
Among the speakers in our database priced under $2,000 a pair, these are the 5 Passive Floor-standing speakers that have deeper bass than the Tannoy Revolution XT 6F's 38Hz:
Crossover frequency of the Tannoy Revolution XT 6F?
Revolution XT 6F is a 3-way speaker and its crossover frequency between the woofer and the midrange is set to 250 Hz and the crossover frequency between the midrange and the tweeter is set to 1800 Hz.
Impedance and Sensitivity
Tannoy Revolution XT 6F's nominal impedance level is
8 ohms and has a sensitivity of
90 dB.
Sensitivity
Floor-standing Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Tannoy Revolution XT 6F is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
90dB of the Tannoy Revolution XT 6F is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Tannoy Revolution XT 6F plays in your room →
What amplifier does the Tannoy Revolution XT 6F need?
At normal listening levels in a medium room, about
7.5–120 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $2,000, or every amplifier we cover.
Input Type
Revolution XT 6F features Binding post type connectors.
Work out what gauge speaker cable this run needs →
Tannoy Revolution XT 6F External Dimensions and Weight
Tannoy Revolution XT 6F has external dimensions of (Height x Width x Depth) 39.6 x 10.6 x 12.5inch (1005.8 x 269.2 x 317.5mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Tannoy Revolution XT 6F is approximately 854.8cm2 / 132.5inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Tannoy Revolution XT 6F weighs 16.30kg / 35.9lbs per piece. Here is a comparison of how Revolution XT 6F's weight compares with the average, max and min weights in its class.
Weight
All Floor-standing Speakers
Weight
Floor-standing Speakers under $2,000
Cabinet type and Materials
Tannoy Revolution XT 6F has a
Bass Reflex type cabinet. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Does the Tannoy Revolution XT 6F come with a Grille?
Revolution XT 6F comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Tannoy Revolution XT 6F.
Official Product Page
Official manufacturer's product page for the Tannoy Revolution XT 6F speaker can be found below:
Official Product Page for Tannoy Revolution XT 6F
