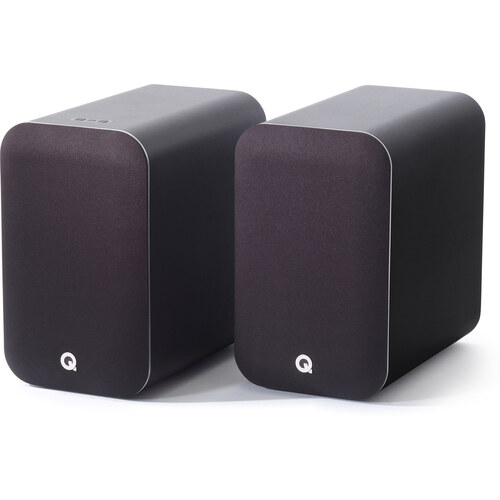

Q Acoustics M20 HD Wireless Music System is a 2-way Powered Bass Reflex Bookshelf speaker by Q Acoustics. It was released in 2020. M20 HD's built-in amplifier provides 128-watt RMS. The built-in power amplifier saves space & eliminates the need to connect Q Acoustics M20 HD to a stereo receiver or external power amp. It features a 0.875" Dome Tweeter and 1 x 5" Woofer. The speaker has a frequency range of 55-22k Hz. Q Acoustics M20 HD has an MSRP of 599$ per pair.
Q Acoustics M20 HD Speaker Structure
Frequency Response of the Q Acoustics M20 HD Speaker
Q Acoustics M20 HD has a Frequency response range of 55-22k Hz. With a minimum frequency of 55 Hz, M20 HD delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how M20 HD's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Q Acoustics M20 HD?
Q Acoustics M20 HD Back View
Handheld Remote
Q Acoustics M20 HD comes with a handheld remote which is obviously very useful to control your powered speakers from a distance.
Q Acoustics M20 HD Handheld Remote
Bluetooth Connectivity
Q Acoustics M20 HD employs Built-in 5.0 Bluetooth for wireless music streaming from your Bluetooth-enabled devices such as Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows PC, Mac computers/laptops. M20 HD can playback up to 24-bit / 192 kHz with compatible devices.
Q Acoustics M20 HD supports the following Bluetooth Codecs when used with supported devices:
Supported Wireless Streaming System
Q Acoustics M20 HD supports the following wireless streaming methods:
Inputs and Outputs
- 3.5mm Minijack Input
- RCA Input
- USB Port: USB-B
- mono-RCA Subwoofer Output
- Digital Input: Optical
Q Acoustics M20 HD Connections
Q Acoustics M20 HD External Dimensions and Weight
Q Acoustics M20 HD has external dimensions of (Height x Width x Depth) 10-15/16 x 6-11/16 x 12-3/16inch (278.0 x 170.0 x 310.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Q Acoustics M20 HD is approximately 527.0cm2 / 81.7inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
Weight The speaker with the built-in amplifier weighs 5.50kg / 12.1lbs whereas the other speaker weighs 5.10kg/ 11.2lbs. Here is a comparison of how M20 HD's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $750
Cabinet type and Materials
Q Acoustics M20 HD has a
Bass Reflex type cabinet. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Q Acoustics M20 HD is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe. M20 HD comes with
2 Foam port plugs so if you don't have any choice but place the speakers too close to the walls or other surfaces, you can use these plugs in order to avoid boomy or too much bass.
Available colors
Q Acoustics M20 HD is available in Black, White and Walnut.
Q Acoustics M20 HD Colors
Wall Mounting
M20 HD doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the Q Acoustics M20 HD come with a Grille?
M20 HD comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
What's in the Box of Q Acoustics M20 HD?
Here are the items that are included inside the box of M20 HD:
- Powered speaker
- Passive speaker
- 6-feet AC power cord
- Remote control
- 2 AAA batteries
- 13-feet Speaker wire
- 59-inch Optical digital cable
- 2 Foam port plugs
- Owners Manual
Recommended Accessories
Here is a list of accessories that we think you may need for the Q Acoustics M20 HD Wireless Music System.
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
User's Manual
For more information about how to setup, use and maintain the Q Acoustics M20 HD Wireless Music System, use the direct link below to download the official manual document:
Download User Manual for Q Acoustics M20 HD
Official Brochure
Here is a link to download the official brochure for the Q Acoustics M20 HD Wireless Music System speaker:
Official Brochure for Q Acoustics M20 HD
Official Product Page
Official manufacturer's product page for the Q Acoustics M20 HD Wireless Music System speaker can be found below:
Official Product Page for Q Acoustics M20 HD
Warranty
2 Years of parts warranty and 2 Years of labor warranty is generally provided by the manufacturer.
