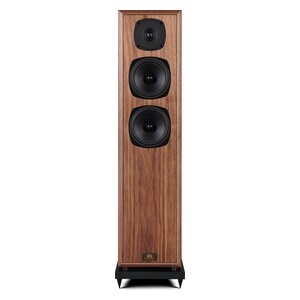

Castle Tintagel 2 is a 2-way Passive Bass Reflex Floor-standing speaker by Castle. It was released in September 2026. It features a 1.1" Soft-Dome Tweeter and 2 x 6.5" Advanced Fibre Woofer.
A floorstander with two 150 mm advanced fibre cones and a 28 mm silk dome tweeter. Castle's description calls it 2.5-way (the lower cone reinforces the bass), its own spec table says 2-way. The port fires down into a space formed by the plinth. 42.5 litres, 89 dB at 2.83 V, 8 ohm compatible with a 5.4 ohm minimum, 30-150 W. 44 Hz-20 kHz +/-3 dB, 38 Hz at -6 dB. Hand-built in the UK.
The speaker has a frequency range of 44-20k Hz and a sensitivity of 89 dB. Castle Tintagel 2 has an MSRP of 3999$ per pair.
Room Size Suitability
The size of the room where you plan to use the Castle Tintagel 2 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Castle's Tintagel Series of Loudspeakers
Tintagel 2 is a member of Castle's Tintagel series of Passive speakers. Below you can see the main specs of these speakers.
Castle Tintagel Series Speakers
Frequency Response of the Castle Tintagel 2 Speaker
Castle Tintagel 2 has a Frequency response range of 44-20k Hz and Power Range of 30-150 watts. With a minimum frequency of 44 Hz, Tintagel 2 delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how Tintagel 2's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Floor-standing Speakers
Thinking about a subwoofer for the Castle Tintagel 2?
Among the speakers in our database priced under $5,000 a pair, these are the 5 Passive Floor-standing speakers that have deeper bass than the Castle Tintagel 2's 44Hz:
Crossover frequency of the Castle Tintagel 2?
The crossover frequency of the Tintagel 2 is set to 2.5 kHz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Impedance and Sensitivity
Castle Tintagel 2's nominal impedance level is
8 ohms but can go down to as low as
5.4 ohms, and has a sensitivity of
89 dB.
Sensitivity
Floor-standing Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Castle Tintagel 2 is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
89dB of the Castle Tintagel 2 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Castle Tintagel 2 plays in your room →
Minimum Impedance of the Castle Tintagel 2
Even though the nominal impedance of the Tintagel 2 is 8 ohms, the minimum impedance level of this speaker according to Castle is 5.4 ohms Castle Tintagel 2 so while choosing an amplifier, you should ideally check if the unit you are considering can provide this impedance level.
What amplifier does the Castle Tintagel 2 need?
At normal listening levels in a medium room, about
9.5–150 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $5,000, or every amplifier we cover.
Input Type
Tintagel 2 features Binding post type connectors.
Work out what gauge speaker cable this run needs →
Castle Tintagel 2 External Dimensions and Weight
Castle Tintagel 2 has external dimensions of (Height x Width x Depth) 39-3/16 x 9-13/16 x 11-1/4inch (995.0 x 250.0 x 286.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Castle Tintagel 2 is approximately 715.0cm2 / 110.8inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Castle Tintagel 2 weighs 21.00kg / 46.2lbs per piece. Here is a comparison of how Tintagel 2's weight compares with the average, max and min weights in its class.
Weight
All Floor-standing Speakers
Weight
Floor-standing Speakers under $5,000
Cabinet type and Materials
Castle Tintagel 2 has a
Bass Reflex type cabinet and a Walnut veneer, Black Oak veneer finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Castle Tintagel 2 is a bottom-firing port speaker.
