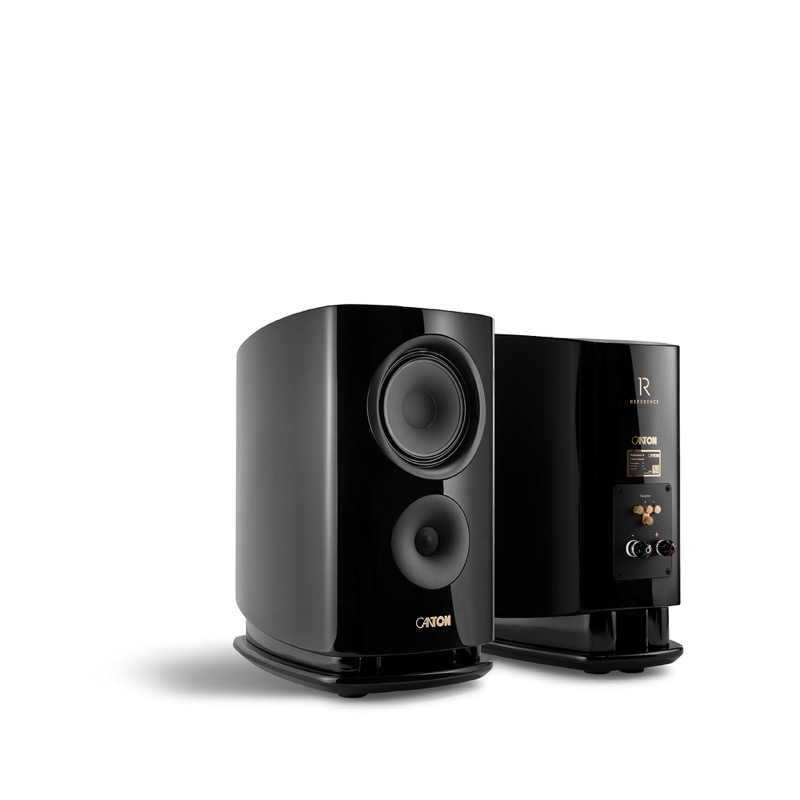

Canton Reference 9 2023 is a 2-way Passive Bass Reflex Bookshelf speaker by Canton. It was released in 2023. It features a 1" Tweeter and x " Woofer.
1" aluminum ceramic oxyd tweeter.
The speaker has a frequency range of 25-40k Hz and a sensitivity of 87 dB. Canton Reference 9 2023 has an MSRP of 6300$ per pair.
Room Size Suitability
The size of the room where you plan to use the Canton Reference 9 2023 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Good |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Frequency Response of the Canton Reference 9 2023 Speaker
Canton Reference 9 2023 has a Frequency response range of 25-40k Hz and Power Range of 125-220 watts. With a minimum frequency of 25 Hz, Reference 9 2023 delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how Reference 9 2023's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Canton Reference 9 2023?
As you can see from the chart, Canton Reference 9 2023 with its 25 Hz features the lowest Low Frequency level among the Bookshelf speakers in our database, promising a very good bass range.
Impedance and Sensitivity
Canton Reference 9 2023's nominal impedance level is
4 ohms and has a sensitivity of
87 dB.
Sensitivity
Bookshelf Speakers
Nominal Impedance of the 4 Ohms means that the Canton Reference 9 2023 is a difficult to drive speaker from nominal Impedance perspective, make sure that you choose an amplifier than can provide 4 Ohms for this speaker.
Many AVRs (audio/video receiver) in the market may have difficulty when the speakers dip below the 4 Ohms levels (this may cause clipping or even physical damage), so we recommend to not pair the Canton Reference 9 2023 with an AVR but use an Integrated Amplifier instead.
Sensitivity
With a sensitivity level of only 87 dB, Canton Reference 9 2023 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the Canton Reference 9 2023 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the Canton Reference 9 2023 need?
At normal listening levels in a medium room, about
30–220 W
per channel into 4 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? See every integrated amplifier we cover.
Input Type
Reference 9 2023 features Binding post type connectors.
Work out what gauge speaker cable this run needs →
Canton Reference 9 2023 External Dimensions and Weight
Canton Reference 9 2023 has external dimensions of (Height x Width x Depth) 17.7 x 10.2 x 15.4inch (449.6 x 259.1 x 391.2mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Canton Reference 9 2023 is approximately 1013.6cm2 / 157.1inch2.
Millimetres are hard to picture, so here is the Canton Reference 9 2023 drawn to scale next to the Sonus Sonetto II, the speaker our readers compare it with most often.
Size, drawn to scale
Both speakers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same surface and pushed back to the same wall, so the deeper one visibly sticks out further.
Canton Reference 9 2023 needs about 21% more floor or shelf area. Canton Reference 9 2023 is 57mm deeper, so it stands that much further out from the wall. Canton Reference 9 2023 is 80mm taller.
Full comparison: Canton Reference 9 2023 vs Sonus Sonetto II ›
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Canton Reference 9 2023 weighs 18.14kg / 39.9lbs per piece. Here is a comparison of how Reference 9 2023's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $10,000
Cabinet type and Materials
Canton Reference 9 2023 has a
Bass Reflex type cabinet. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Wall Mounting
Reference 9 2023 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the Canton Reference 9 2023 come with a Grille?
Reference 9 2023 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Canton Reference 9 2023.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
Official Product Page
Official manufacturer's product page for the Canton Reference 9 2023 speaker can be found below:
Official Product Page for Canton Reference 9 2023
