In this review, we will be comparing two different type of speakers by Revel. Revel PerformaBe F226Be is a Floor-standing speaker whereas the M126Be is a Bookshelf speaker.
Let's have a brief look at the main features
of Revel PerformaBe F226Be and Revel M126Be first before getting into our more
detailed comparison.
PerformaBe F226Be and M126Be are members of Revel's PerformaBe series of speakers. Below you can find the loudspeakers from this series.
Revel PerformaBe Series History
What size room are the Revel PerformaBe F226Be and Revel M126Be speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Revel PerformaBe F226Be and Revel M126Be compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that PerformaBe F226Be is a 3-way design whereas the M126Be is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Revel PerformaBe F226Be |
Revel M126Be |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
2 x 6.5-inch
|
1 x 6.5-inch
|
PerformaBe F226Be features a 1" beryllium dome with proprietary acoustic lens waveguide Tweeter , a 5.25" Midrange and 2 x 6.5" DCC Aluminum Woofer . On the other hand, the M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer .
Frequency Response
PerformaBe F226Be has a frequency range of 50-40k Hz whereas M126Be has a frequency range of 54-44k Hz. With a minimum frequency of 50Hz, the PerformaBe F226Be can go slightly deeper then the M126Be's min frequency of 54Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
PerformaBe F226Be and M126Be have the same Impedance of 8 ohms but where they differ is the sensitivity levels. PerformaBe F226Be sensitivity is rated at 90 dB and the M126Be's is at 86 dB. This 4 dB difference makes the Revel PerformaBe F226Be a more sensitive speaker compared to Revel M126Be, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
PerformaBe F226Be can handle a max power of 200 watts RMS from the amp the whereas M126Be has a max power handling value of 150 watts RMS, 50 watts less than the PerformaBe F226Be.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
PerformaBe F226Be features Binding post posts which make bi-amping or bi-wiring possible. M126Be has a Binding post which doesn't feature bi-amping/bi-wiring.
Cabinet Type and Port Position
PerformaBe F226Be has a front firing port whereas M126Be has a rear firing ports. Revel PerformaBe F226Be's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Revel M126Be with its rear-firing port.
Physical Specs

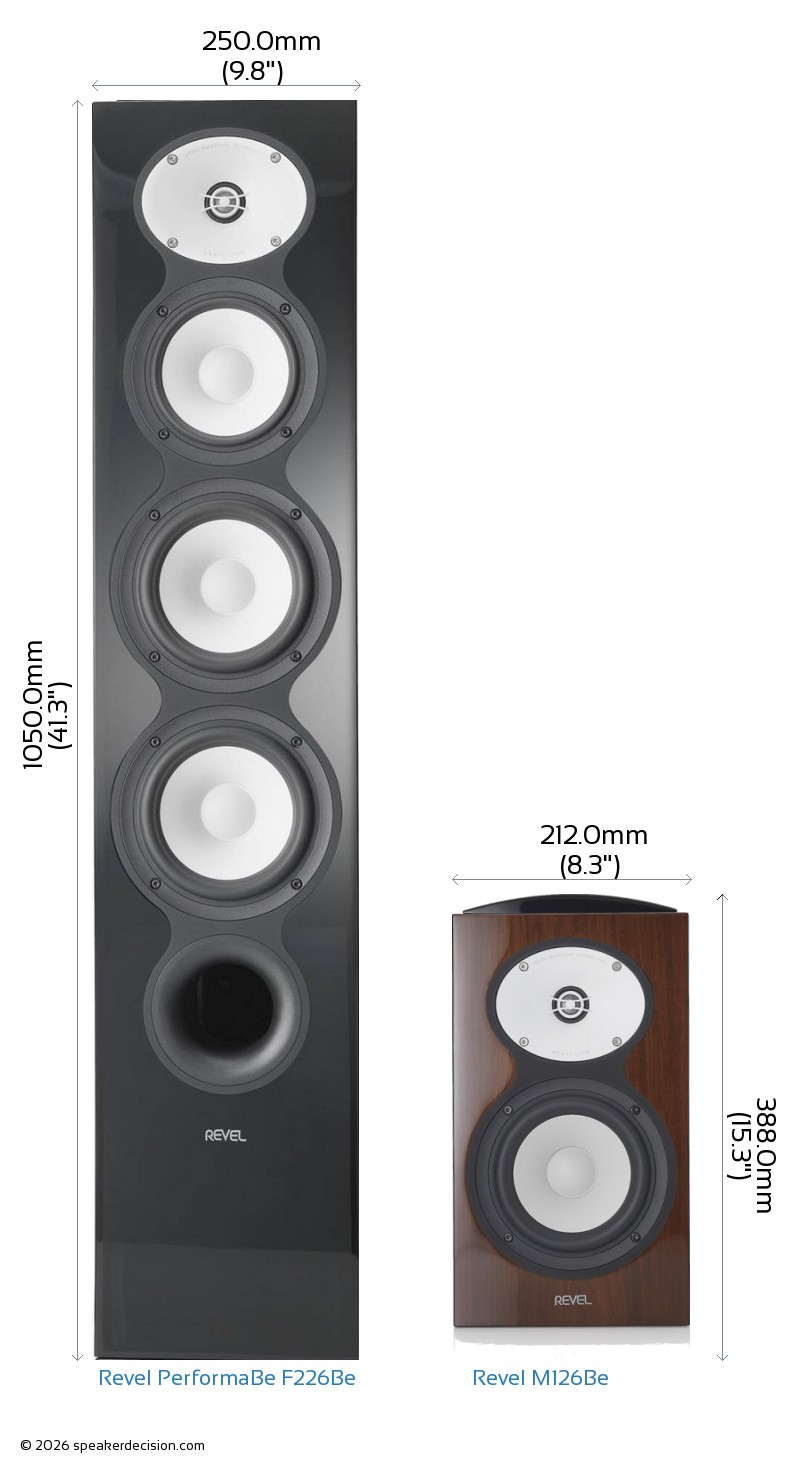

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel PerformaBe F226Be's and Revel M126Be's external dimensions. Revel PerformaBe F226Be has external dimensions of 1050.0 x 250.0 x 350.0mm ( 41-5/16 x 9-13/16 x 13-3/4inch) whereas Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm ( 15-1/4 x 8-5/16 x 10-5/16inch) .
Revel PerformaBe F226Be is clearly the larger of the two speakers. Its body is 38mm wider, 662mm taller and 88mm deeper than Revel M126Be.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel PerformaBe F226Be is approximately 875.0cm2 / 135.6inch2 and base area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2. The PerformaBe F226Be requires 58% more surface area than the M126Be which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Revel PerformaBe F226Be?
Here are the items that are included inside the box of PerformaBe F226Be:
Floorstanding loudspeakerGrille4 Spike feet4 Locking rings4 Washers2 Terminal jumpers (pre-installed)Foam port plugOwners Manual
What's in the Box of Revel M126Be?
Here are the items that come with the M126Be:
Bookshelf loudspeakerGrilleFoam port plugOwners Manual
