In this review, we will be comparing two different type of speakers by Revel. Revel Performa3 M105 is a Bookshelf speaker whereas the Performa3 F206 is a Floor-standing speaker.
Let's have a brief look at the main features
of Revel M105 and Revel Performa3 F206 first before getting into our more
detailed comparison.
Revel M105 Key Specs
- 2-way Design
- 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
- 5.25" Aluminum Woofer
- 60Hz- 20kHz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-120watts
- Weight:7.14kg
- Dimensions (H x W x D): 359.0" x 7-15/16" x 9-7/8"( 359.0 x 202.0 x 251.0mm )
Revel Performa3 F206 Key Specs
- 3-way Design
- 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
- 5.25" Midrange
- 2 x 6.5" Aluminum Woofer
- 5.25" Midrange
- 42Hz- 20kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-200watts
- Weight:26.41kg
- Dimensions (H x W x D): 1058.0" x 10" x 13-7/8"( 1058.0 x 254.0 x 353.0mm )
M105 and Performa3 F206 are members of Revel's Performa3 series of speakers. Below you can find the loudspeakers from this series.
Revel Performa3 Series History
What size room are the Revel M105 and Revel Performa3 F206 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
Revel M105 |
Revel Performa3 F206 |
| Near-field |
Poor |
Bad |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Revel M105 and Revel Performa3 F206 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that M105 is a 2-way design whereas the Performa3 F206 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Revel M105 |
Revel Performa3 F206 |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5.25-inch |
|
Woofer
|
1 x 5.25-inch
|
2 x 6.5-inch
|
M105 features a 1" aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter and 1 x 5.25" Aluminum Woofer with a Crossover frequency at 2300Hz. On the other hand, the Performa3 F206 features a 1" Aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter , a 5.25" Midrange and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 275Hz and 2150Hz.
Frequency Response
M105 has a frequency range of 60Hz- 20kHz whereas Performa3 F206 has a frequency range of 42Hz- 20kHz. With a minimum frequency of 42Hz, the Performa3 F206 can go significantly deeper on the low side and provide stronger bass compared to the M105's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
M105 and Performa3 F206 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. M105 sensitivity is rated at 86 dB and the Performa3 F206's is at 88 dB. This 2 dB difference makes the Revel Performa3 F206 a more sensitive speaker compared to Revel M105, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
M105 can handle a max power of 200 watts RMS from the amp the whereas M105 has a max power handling value of 120 watts RMS , 80 watts less than the Performa3 F206.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
M105 features Binding post type posts and Performa3 F206 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Revel M105's Binding post terminals
Revel Performa3 F206's Binding post terminals
Cabinet Type and Port Position
Both M105 and Performa3 F206 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

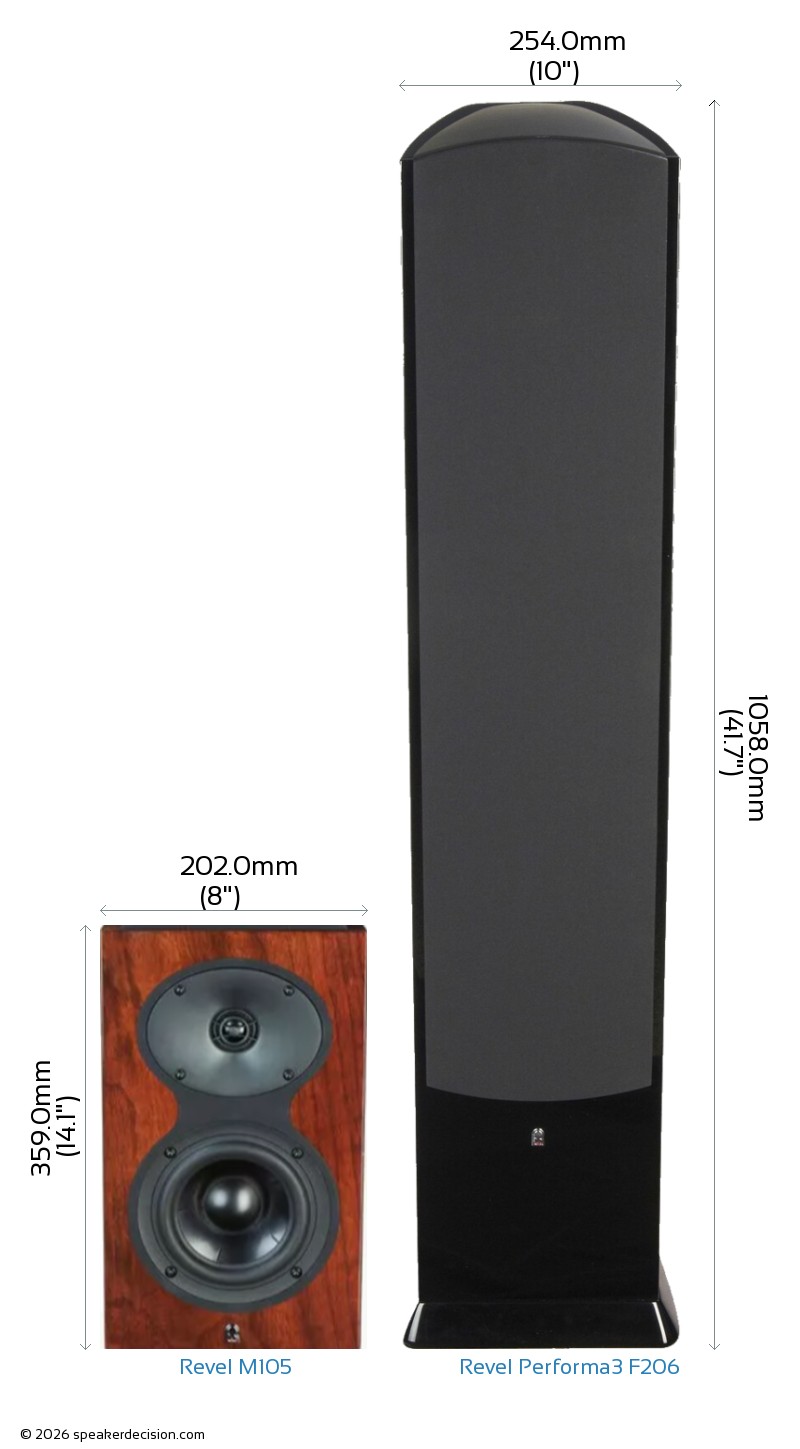

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel M105's and Revel Performa3 F206's external dimensions. Revel M105 has external dimensions of 359.0 x 202.0 x 251.0mm ( 14-1/8 x 7-15/16 x 9-7/8inch) whereas Revel Performa3 F206 has external dimensions of 1058.0 x 254.0 x 353.0mm ( 41-5/8 x 10 x 13-7/8inch) .
Revel Performa3 F206 is clearly the larger of the two speakers. Its body is 52mm wider, 699mm taller and 102mm deeper than Revel M105.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel M105 is approximately 507.0cm2 / 78.6inch2 and base area of the Revel Performa3 F206 is approximately 896.6cm2 / 139.0inch2. The M105 requires 43% less surface area than the Performa3 F206 which gives it a small advantage on placement in tight spaces.
What's in the Box of Revel M105?
Here are the items that are included inside the box of M105:
Bookshelf loudspeakerGrilleFoam port plugOwners Manual
What's in the Box of Revel Performa3 F206?
Here are the items that come with the Performa3 F206:
Floorstanding loudspeakerGrille4 Spike feet4 Locking rings4 WashersFoam port plugOwners Manual
