In this review, we will be comparing two different type of speakers by Revel. Revel Performa3 F206 is a Floor-standing speaker whereas the M105 is a Bookshelf speaker.
Let's have a brief look at the main features
of Revel Performa3 F206 and Revel M105 first before getting into our more
detailed comparison.
Revel Performa3 F206 Key Specs
- 3-way Design
- 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
- 5.25" Midrange
- 2 x 6.5" Aluminum Woofer
- 42Hz- 20kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-200watts
- Weight:26.41kg
- Dimensions (H x W x D): 1058.0" x 10" x 13-7/8"( 1058.0 x 254.0 x 353.0mm )
Revel M105 Key Specs
- 2-way Design
- 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
- 5.25" Aluminum Woofer
- 60Hz- 20kHz Frequency Response
- 86 dB Sensitivity
- Impedance: 8ohms
- Power Range:50-120watts
- Weight:7.14kg
- Dimensions (H x W x D): 359.0" x 7-15/16" x 9-7/8"( 359.0 x 202.0 x 251.0mm )
Performa3 F206 and M105 are members of Revel's Performa3 series of speakers. Below you can find the loudspeakers from this series.
Revel Performa3 Series
History
What size room are the Revel Performa3 F206 and Revel M105 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Revel Performa3 F206 |
Revel M105 |
| Near-field |
Bad |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Revel Performa3 F206 and Revel M105 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Performa3 F206 is a 3-way design whereas the M105 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Revel Performa3 F206 |
Revel M105 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
2 x 6.5-inch
|
1 x 5.25-inch
|
Performa3 F206 features a 1" Aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter , a 5.25" Midrange and 2 x 6.5" Aluminum Woofer with a Crossover frequency at 275Hz and 2150Hz. On the other hand, the M105 features a 1" aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter and 1 x 5.25" Aluminum Woofer with a Crossover frequency at 2300Hz.
Frequency Response
Performa3 F206 has a frequency range of 42Hz- 20kHz whereas M105 has a frequency range of 60Hz- 20kHz. With a minimum frequency of 42Hz, the Performa3 F206 can go significantly deeper on the low side and provide stronger bass compared to the M105's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Performa3 F206 and M105 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Performa3 F206 sensitivity is rated at 88 dB and the M105's is at 86 dB. This 2 dB difference makes the Revel Performa3 F206 a more sensitive speaker compared to Revel M105, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Performa3 F206 can handle a max power of 200 watts RMS from the amp the whereas M105 has a max power handling value of 120 watts RMS, 80 watts less than the Performa3 F206.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Performa3 F206 features Binding post type posts and M105 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Revel Performa3 F206's Binding post terminals
Revel M105's Binding post terminals
Cabinet Type and Port Position
Both Performa3 F206 and M105 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

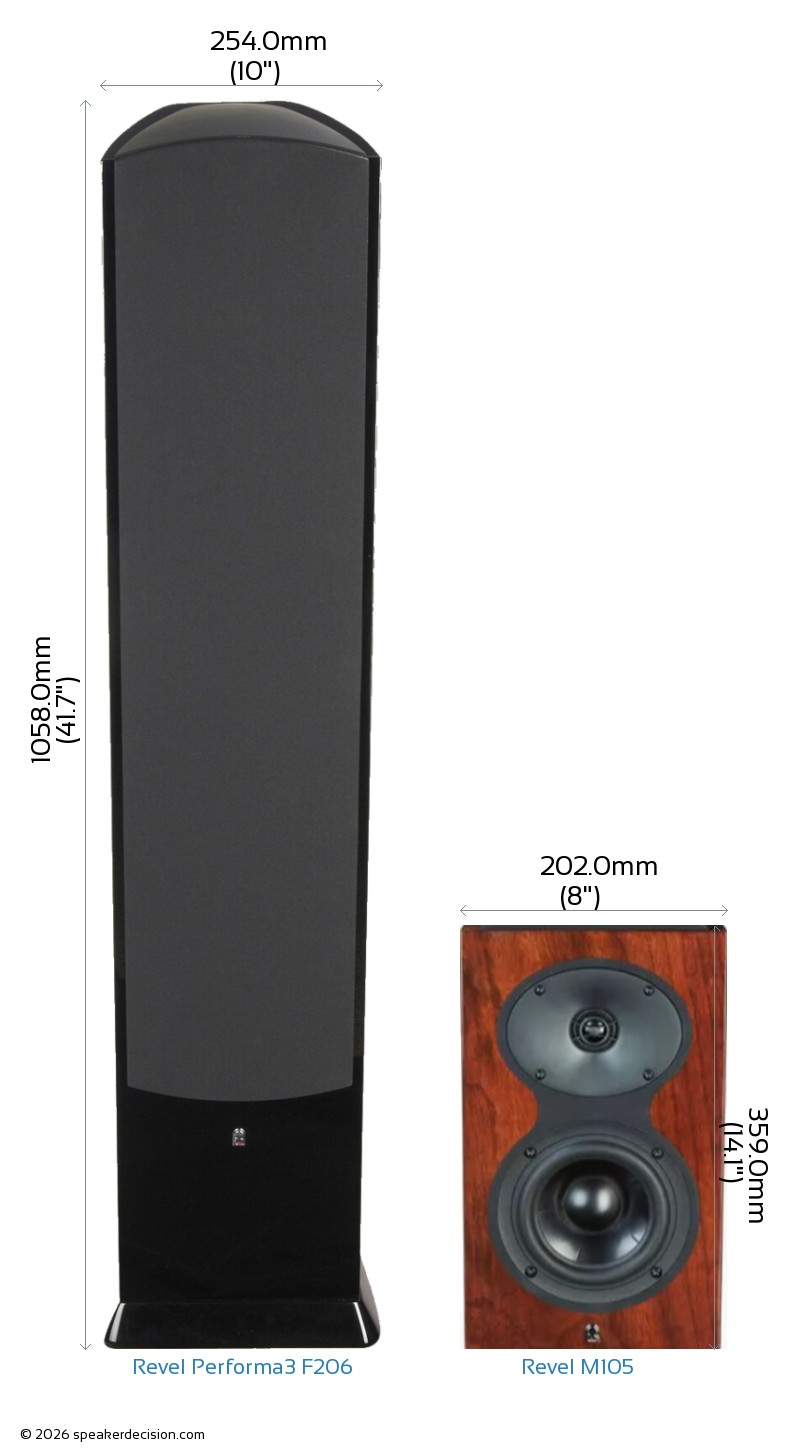

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Performa3 F206's and Revel M105's external dimensions. Revel Performa3 F206 has external dimensions of 1058.0 x 254.0 x 353.0mm ( 41-5/8 x 10 x 13-7/8inch) whereas Revel M105 has external dimensions of 359.0 x 202.0 x 251.0mm ( 14-1/8 x 7-15/16 x 9-7/8inch) .
Revel Performa3 F206 is clearly the larger of the two speakers. Its body is 52mm wider, 699mm taller and 102mm deeper than Revel M105.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Performa3 F206 is approximately 896.6cm2 / 139.0inch2 and base area of the Revel M105 is approximately 507.0cm2 / 78.6inch2. The Performa3 F206 requires 77% more surface area than the M105 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Revel Performa3 F206?
Here are the items that are included inside the box of Performa3 F206:
Floorstanding loudspeakerGrille4 Spike feet4 Locking rings4 WashersFoam port plugOwners Manual
What's in the Box of Revel M105?
Here are the items that come with the M105:
Bookshelf loudspeakerGrilleFoam port plugOwners Manual
