In this review, we will be comparing RP-504C and RP-450C, two Passive Center Channel speakers by Klipsch Let's have a brief look at the main features
of Klipsch RP-504C and Klipsch RP-450C first before getting into our more
detailed comparison.
RP-504C and RP-450C are members of Klipsch's Reference Premiere (RP) series of speakers. Below you can find the loudspeakers from this series.
Klipsch Reference Premiere (RP) Series History
What size room are the Klipsch RP-504C and Klipsch RP-450C speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Klipsch RP-504C and Klipsch RP-450C compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both RP-504C and RP-450C are 2-way speakers.
| Driver |
Klipsch RP-504C |
Klipsch RP-450C |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
4 x 5.25-inch
|
4 x 5.25-inch
|
RP-504C features a 1" titanium Tractrix horn Tweeter and 4 x 5.25" Cerametallic cone Woofer . On the other hand, the RP-450C features a 1" titanium Tractrix horn Tweeter and 4 x 5.25" Cerametallic cone Woofer .
Frequency Response
RP-504C and RP-450C has exactly the same frequency range of 58-25k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Center Channel class in our database.
Low Frequency
Center Channel Speakers
High Frequency
Center Channel Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-504C and RP-450C have the same Impedance of 8 ohms and their sensitivity is also same at 97 dB.
Sensitivity
Center Channel Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
RP-504C and RP-450C has the same power range of up to 150 watts.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RP-504C features Binding post type posts and RP-450C has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Klipsch RP-504C's Binding post terminals
Klipsch RP-450C's Binding post terminals
Cabinet Type and Port Position
Both RP-504C and RP-450C have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

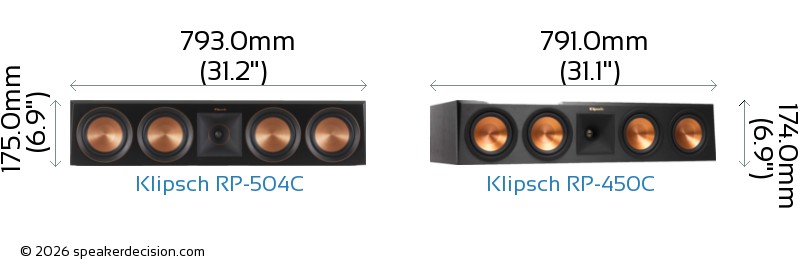

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-504C's and Klipsch RP-450C's external dimensions. Klipsch RP-504C has external dimensions of 175.0 x 793.0 x 367.0mm ( 6-7/8 x 31-3/16 x 14-7/16inch) whereas Klipsch RP-450C has external dimensions of 174.0 x 791.0 x 370.0mm ( 6-13/16 x 31-1/8 x 14-9/16inch) .
Klipsch RP-450C is 2mm narrower and 1mm shorter than Klipsch RP-504C but it is also 3mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-504C is approximately 2910.3cm2 / 451.1inch2 and base area of the Klipsch RP-450C is approximately 2926.7cm2 / 453.6inch2. The RP-504C requires 1% less surface area than the RP-450C which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch RP-504C weighs 15.45kg / 34lbs and the Klipsch RP-450C weighs 16.23kg / 35.7lbs. This makes the RP-450C 5% heavier than the RP-504C.
Here is a comparison of how RP-504C and RP-450C's weights compare with the average, max and min weights in Passive Center Channel class.
Weight
All Center Channel Speakers
What's in the Box of Klipsch RP-504C?
Here are the items that are included inside the box of RP-504C:
Center channel loudspeakerGrille (installed)4 Self-adhesive rubber feetUser ManualImportant Safety InstructionsWarranty Information
What's in the Box of Klipsch RP-450C?
Here are the items that come with the RP-450C:
Center-channel loudspeakerDetachable magnetic grille4 Rubber feetUser ManualWarranty InformationImportant Safety Instructions
 Base Surface Area |
2910cm2 (793x367mm)
vs
2926cm2 (791x370mm)
|
Takes less floor space |
 Price per pair* |
399USD
vs
650USD
|
costs less (*prices may change depending on the seller, location and time) |
 Height |
174mm
vs
175mm
|
Easier to fit in smaller spaces |
| General |
Klipsch Reference Premiere RP-504C |
Klipsch Reference Premiere RP-450C |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Center channel speaker |
Center channel speaker (Ebony) |
| Power Range |
up to 150 watts |
up to 150 watts |
| Sensitivity |
97 dB |
97 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
58-25k Hz |
58-25k Hz |
Drivers |
|
|
| Woofer Quantity |
4 |
4 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
Cerametallic cone |
Cerametallic cone |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix horn |
Tractrix horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
175.0mm (6.9") |
174.0mm (6.9") |
| Width |
793.0mm (31.2") |
791.0mm (31.1") |
| Depth |
367.0mm (14.4") |
370.0mm (14.6") |
| Weight |
15.45kg (34lbs) |
16.23kg (35.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
polymer veneer |
| Available Colors |
Walnut, Black |
Walnut, Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
