In this review, we will be comparing two different type of speakers . Klipsch Heritage Forte IV is a Floor-standing speaker whereas the LINTON Heritage is a Bookshelf speaker.
Let's have a brief look at the main features
of Klipsch Forte IV and Wharfedale LINTON first before getting into our more
detailed comparison.
Klipsch Forte IV Key Specs
- 3-way Design
- 1" horn-loaded Tweeter
- 1.75" Midrange
- 12" Fibercomposite Woofer
- 38-20k Hz Frequency Response
- 99 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:32.73kg
- Dimensions (H x W x D): 909.0" x 16-5/8" x 13"( 909.0 x 423.0 x 331.0mm )
Wharfedale LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Woven Kevlar Woofer
- 5" Midrange
- 40-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:18.40kg
- Dimensions (H x W x D): 565.0" x 11.8" x 14.2"( 565.0 x 300.0 x 360.0mm )
Forte IV and LINTON Heritage are members of Wharfedale's Heritage series of speakers. Below you can find the loudspeakers from this series.
Klipsch Heritage Series
History
In the following sections, we will get into more detail in order to better understand how the Klipsch Forte IV and Wharfedale LINTON compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Forte IV and LINTON Heritage are 3-way speakers.
| Driver |
Klipsch Forte IV |
Wharfedale LINTON |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 1.75-inch |
1 x 5-inch |
|
Woofer
|
1 x 12-inch
|
1 x 8-inch
|
Forte IV features a 1" titanium-diaphragm compression horn-loaded Tweeter , a 1.75" Midrange and 1 x 12" Fibercomposite Woofer . On the other hand, the LINTON Heritage features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Woven Kevlar Woofer with a Crossover frequency at 630Hz and 2400Hz.
Frequency Response
Forte IV has a frequency range of 38-20k Hz whereas LINTON Heritage has a frequency range of 40-20k Hz. With a minimum frequency of 38Hz, the Forte IV can go slightly deeper then the LINTON Heritage's min frequency of 40Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Forte IV is a 8 ohms speaker compared to the LINTON Heritage which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Forte IV sensitivity is rated at 99 dB and the LINTON Heritage's is rated at 90 dB. This 9 dB difference makes the Klipsch Forte IV a more sensitive speaker compared to Wharfedale LINTON, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Forte IV can handle a max power of 200 watts RMS from the amp the whereas Forte IV has a max power handling value of 100 watts RMS , 100 watts less than the LINTON Heritage.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Forte IV features Post posts which make bi-amping or bi-wiring possible. LINTON Heritage has a Post which doesn't feature bi-amping/bi-wiring.
Wharfedale LINTON's Post terminals
Cabinet Type and Port Position
Both Forte IV and LINTON Heritage have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

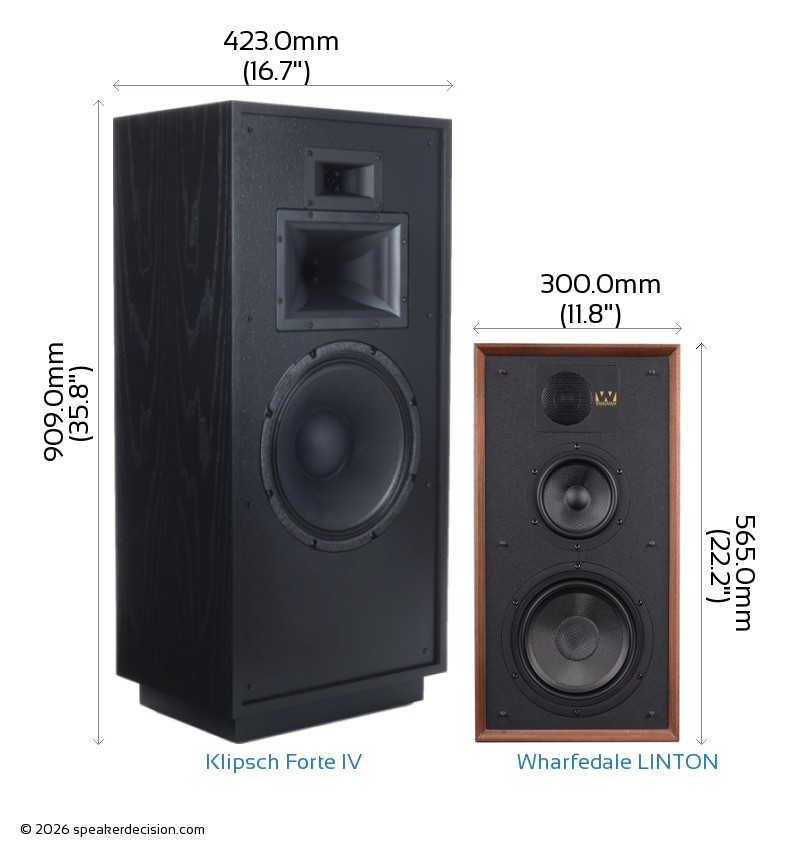

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch Forte IV's and Wharfedale LINTON's external dimensions. Klipsch Forte IV has external dimensions of 909.0 x 423.0 x 331.0mm ( 35-3/4 x 16-5/8 x 13inch) whereas Wharfedale LINTON has external dimensions of 565.0 x 300.0 x 360.0mm ( 22.2 x 11.8 x 12.9inch) .
Wharfedale LINTON is 123mm narrower and 344mm shorter than Klipsch Forte IV but it is also 29mm deeper.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch Forte IV is approximately 1400.1cm2 / 217.0inch2 and base area of the Wharfedale LINTON is approximately 990.0cm2 / 153.5inch2. The Forte IV requires 41% more surface area than the LINTON Heritage which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Klipsch Forte IV?
Here are the items that are included inside the box of Forte IV:
2 Floorstanding loudspeakers2 Grilles8 Self-adhesive rubber feetOwners ManualCongratulations letterKlipsch brochure
What's in the Box of Wharfedale LINTON?
Here are the items that come with the LINTON Heritage:
Bookshelf loudspeaker Grille (pre-installed) 4 Self-adhesive rubber feet Pair of white gloves User's Manual
