In this review, we will be comparing two different type of speakers by Bowers Wilkins. Bowers & Wilkins 703 S2 is a Floor-standing speaker whereas the 707 S2 is a Bookshelf speaker.
Let's have a brief look at the main features
of B&W 703 S2 and B&W 707 S2 first before getting into our more
detailed comparison.
703 S2 and 707 S2 are members of Bowers Wilkins's 700 S2 Anniversary Edition series of speakers. Below you can find the loudspeakers from this series.
What size room are the B&W 703 S2 and B&W 707 S2 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the B&W 703 S2 and B&W 707 S2 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that 703 S2 is a 3-way design whereas the 707 S2 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
B&W 703 S2 |
B&W 707 S2 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 6-inch |
- |
|
Woofer
|
2 x 6.5-inch
|
1 x 5-inch
|
703 S2 features a 1" Tweeter , a 6" Midrange and 2 x 6.5" Aerofoil Woofer . On the other hand, the 707 S2 features a 1" Decoupled Soft-Dome Tweeter and 1 x 5" Continuum Woofer .
Frequency Response
703 S2 has a frequency range of 46-28k Hz whereas 707 S2 has a frequency range of 50-28k Hz. With a minimum frequency of 46Hz, the 703 S2 can go slightly deeper then the 707 S2's min frequency of 50Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
703 S2 and 707 S2 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. 703 S2 sensitivity is rated at 89 dB and the 707 S2's is at 84 dB. This 5 dB difference makes the B&W 703 S2 a more sensitive speaker compared to B&W 707 S2, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
703 S2 can handle a max power of 200 watts RMS from the amp the whereas 707 S2 has a max power handling value of 100 watts RMS, 100 watts less than the 703 S2.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both 703 S2 and 707 S2 features dual binding post speaker terminals for bi-amping or bi-wiring.
B&W 703 S2's Binding post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both 703 S2 and 707 S2 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

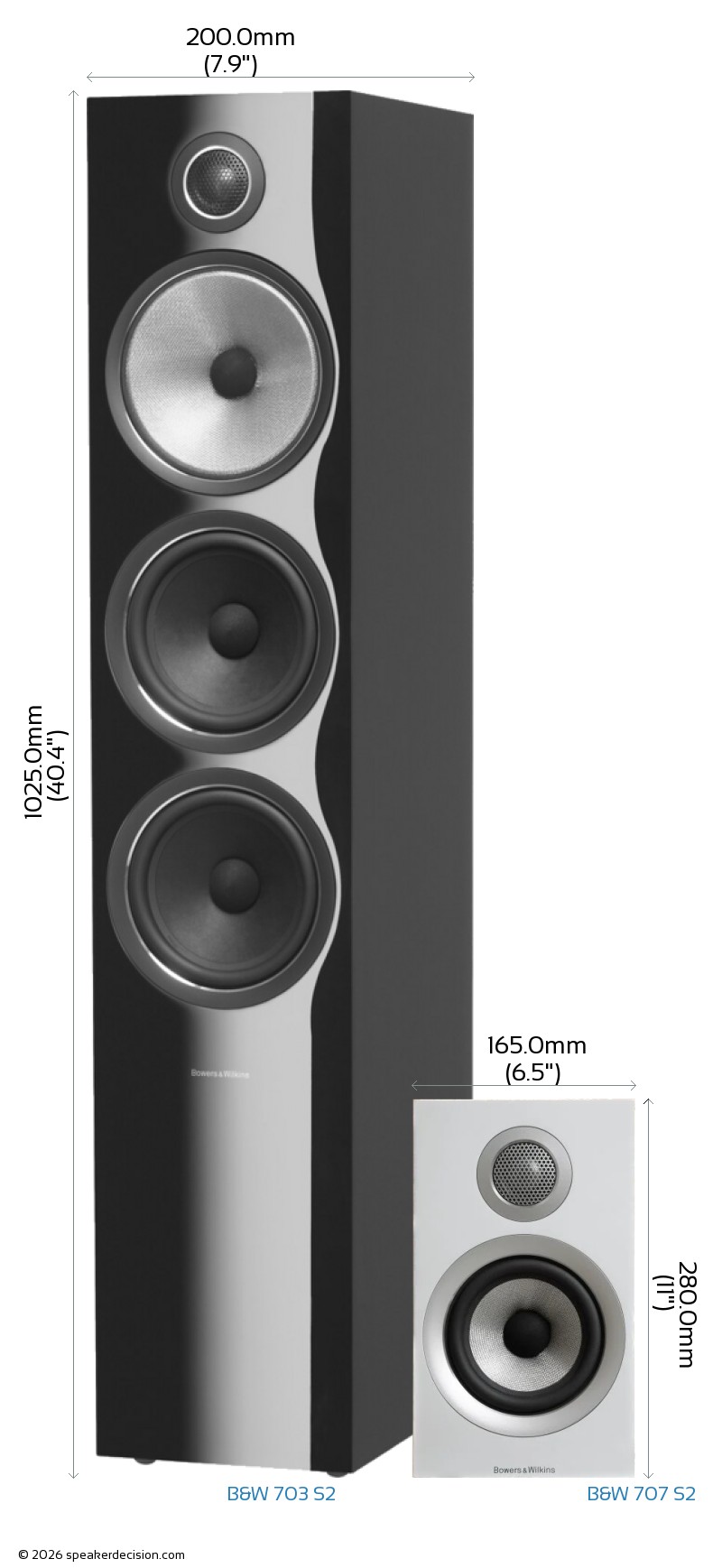

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare B&W 703 S2's and B&W 707 S2's external dimensions. B&W 703 S2 has external dimensions of 1025.0 x 200.0 x 321.0mm ( 40.4-inch x 12-11/16-inch x 12.6-inch) whereas B&W 707 S2 has external dimensions of 280.0 x 165.0 x 276.0mm ( 11-inch x 6.5-inch x 10.9-inch) .
B&W 703 S2 is clearly the larger of the two speakers. Its body is 35mm wider, 745mm taller and 45mm deeper than B&W 707 S2.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the B&W 703 S2 is approximately 642.0cm2 / 99.5inch2 and base area of the B&W 707 S2 is approximately 455.4cm2 / 70.6inch2. The 703 S2 requires 41% more surface area than the 707 S2 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of B&W 703 S2?
Here are the items that are included inside the box of 703 S2:
Floorstanding loudspeakerGrillePlinth (base)2 Jumper-straps (pre-installed)Two-piece foam port plug4 Rubber feet4 Spike feet4 Lock-nuts4 Screws4 Washers4 Lock washersHex-keyManualBowers & Wilkins brochureWarranty Information
What's in the Box of B&W 707 S2?
Here are the items that come with the 707 S2:
2 Bookshelf loudspeakers2 Grilles2 Two-piece foam port plugs8 Self-adhesive rubber feet4 Jumper-straps Manual Bowers & Wilkins brochureWarranty Information
