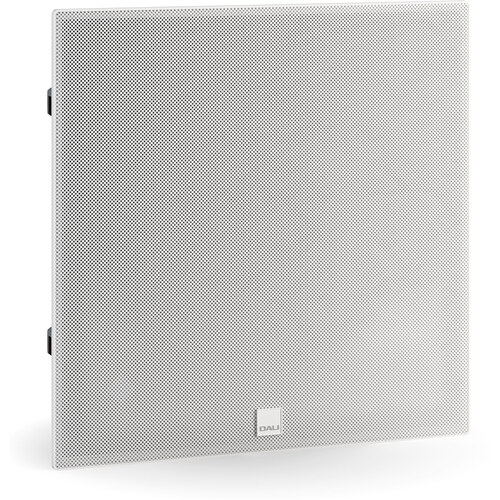

DALI Phantom H 80 is a 2-way Passive In-wall speaker by DALI. It was released in 2016. It features a 1.1" Tweeter and 1 x 8" Woofer. The speaker has a frequency range of 46-25k Hz and a sensitivity of 90 dB. DALI Phantom H 80 has an MSRP of 1000$ per pair but can often be found around 0$ per pair.
DALI's Phantom Series of Loudspeakers
Phantom H 80 is a member of DALI's Phantom series of Passive speakers. The Phantom range are DALI's in-wall and in-ceiling custom-install speakers. Below you can see the main specs of these speakers.
DALI Phantom Series Speakers
Frequency Response of the DALI Phantom H 80 Speaker
DALI Phantom H 80 has a Frequency response range of 46-25k Hz. With a minimum frequency of 46 Hz, Phantom H 80 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how Phantom H 80's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
In-wall Speakers
Thinking about a subwoofer for the DALI Phantom H 80?
Impedance and Sensitivity
DALI Phantom H 80's nominal impedance level is
6 ohms and has a sensitivity of
90 dB.
Sensitivity
In-wall Speakers
Nominal Impedance of the 6 Ohms makes the DALI Phantom H 80 a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
90dB of the DALI Phantom H 80 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the DALI Phantom H 80 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the DALI Phantom H 80 need?
At normal listening levels in a medium room, about
10–160 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $1,000, or every amplifier we cover.
Input Type
Phantom H 80 features Spring post type connectors.
Work out what gauge speaker cable this run needs →
DALI Phantom H 80 External Dimensions and Weight
DALI Phantom H 80 has external dimensions of (Height x Width x Depth) (336.6 x 336.6 x 103.2mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of DALI Phantom H 80 is approximately 347.4cm2 / 53.8inch2.
To get a better perspective on the real life size of DALI Phantom H 80, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

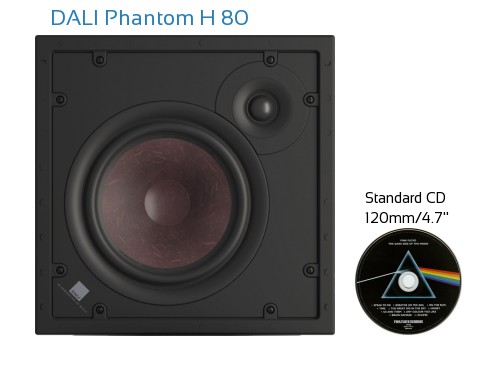

DALI Phantom H 80 Speaker Size Compared to a Compact Disc
Find speakers that fit your shelf or alcove →
Recommended Accessories
Here is a list of accessories that we think you may need for the DALI Phantom H 80.
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
