In this review, we will be comparing EVO5.3 and Imagine X2T, two Passive Floor-standing speakers from Wharfedale and PSB.
Let's have a brief look at the main features
of Wharfedale EVO5.3 and PSB Imagine X2T first before getting into our more
detailed comparison.
Wharfedale EVO5.3 Key Specs
- 3-way Design
- 1.375" AMT (Ribbon) Tweeter
- 2" Midrange
- 2 x 5" woven Kevlar Woofer
- 46-24k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 4ohms
- Power Range:25-150watts
- Weight:21.50kg
- Dimensions (H x W x D): 933.0" x 10.5" x 12.8"( 933.0 x 266.0 x 285.0mm )
PSB Imagine X2T Key Specs
- 3-way Design
- 1" Dome Tweeter
- 5.25" Midrange
- 2 x 6.2" Clay/Ceramic/Poly Woofer
- 5.25" Midrange
- 30-23k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-200watts
- Weight:23.60kg
- Dimensions (H x W x D): 1020.0" x 9" x 16-3/4"( 1020.0 x 229.0 x 426.0mm )
What size room are the Wharfedale EVO5.3 and PSB Imagine X2T speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO5.3 |
PSB Imagine X2T |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale EVO5.3 and PSB Imagine X2T compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both EVO5.3 and Imagine X2T are 3-way speakers.
| Driver |
Wharfedale EVO5.3 |
PSB Imagine X2T |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1.375-inch
|
1-inch
|
|
Midrange
|
1 x 2-inch |
1 x 5.25-inch |
|
Woofer
|
2 x 5-inch
|
2 x 6.2-inch
|
EVO5.3 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter , a 2" Midrange and 2 x 5" woven Kevlar Woofer with a Crossover frequency at 825 Hz and 4 kHz. On the other hand, the Imagine X2T features a 1" titanium with neodymium magnets Dome Tweeter , a 5.25" Midrange and 2 x 6.2" Clay/Ceramic/Poly Woofer with a Crossover frequency at 500Hz and 2200Hz.
Frequency Response
EVO5.3 has a frequency range of 46-24k Hz whereas Imagine X2T has a frequency range of 30-23k Hz. With a minimum frequency of 30Hz, the Imagine X2T can go significantly deeper on the low side and provide stronger bass compared to the EVO5.3's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.3 is a 4 ohms speaker compared to the Imagine X2T which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.3 can provide this impedance level.
These two speakers also have different sensitivity levels. EVO5.3 sensitivity is rated at 88 dB and the Imagine X2T's is rated at 90 dB. This 2 dB difference makes the PSB Imagine X2T a more sensitive speaker compared to Wharfedale EVO5.3, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
EVO5.3 can handle a max power of 200 watts RMS from the amp the whereas EVO5.3 has a max power handling value of 150 watts RMS , 50 watts less than the Imagine X2T.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Imagine X2T features 5-Way post posts which make bi-amping or bi-wiring possible. EVO5.3 has a Binding post which doesn't feature bi-amping/bi-wiring.
Wharfedale EVO5.3's Binding post terminals
PSB Imagine X2T's 5-Way post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
EVO5.3 has a bottom firing port whereas Imagine X2T has a front firing ports. PSB Imagine X2T's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Wharfedale EVO5.3 with its rear-firing port.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.3's and PSB Imagine X2T's external dimensions. Wharfedale EVO5.3 has external dimensions of 933.0 x 266.0 x 285.0mm ( 36.7" × 10.5" × 12.8") whereas PSB Imagine X2T has external dimensions of 1020.0 x 229.0 x 426.0mm ( 40-1/8 x 9 x 16-3/4inch) .
Wharfedale EVO5.3 is 87mm shorter and 141mm less deeper than PSB Imagine X2T but it is also 37mm wider.

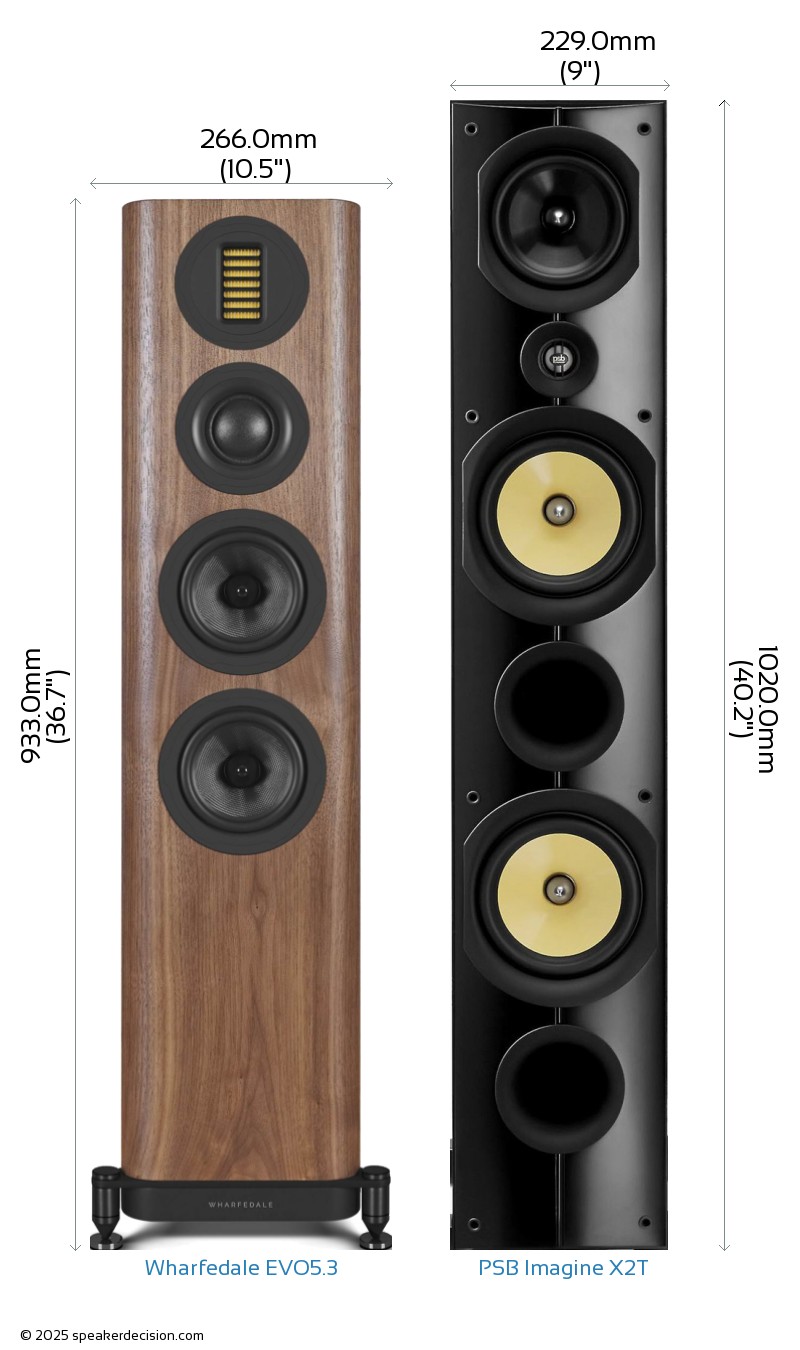

Below you can see the front view size comparison of Wharfedale EVO5.3 and PSB Imagine X2T in scale.
Comparison image of Wharfedale EVO5.3 and PSB Imagine X2T Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.3 is approximately 758.1cm2 / 117.5inch2 and base area of the PSB Imagine X2T is approximately 975.5cm2 / 151.2inch2. The EVO5.3 requires 22% less surface area than the Imagine X2T which gives it a small advantage on placement in tight spaces.
