In this review, we will be comparing EVO5.3 and Kendall, two Passive Floor-standing speakers from Wharfedale and KLH.
Let's have a brief look at the main features
of Wharfedale EVO5.3 and KLH Kendall first before getting into our more
detailed comparison.
Wharfedale EVO5.3 Key Specs
- 3-way Design
- 1.375" AMT (Ribbon) Tweeter
- 2" Midrange
- 2 x 5" woven Kevlar Woofer
- 46-24k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 4ohms
- Power Range:25-150watts
- Weight:21.50kg
- Dimensions (H x W x D): 933.0" x 10.5" x 12.8"( 933.0 x 266.0 x 285.0mm )
KLH Kendall Key Specs
- 3-way Design
- 1" Tweeter
- 5.25" Midrange
- 2 x 6.5" Woven Kevlar Woofer
- 5.25" Midrange
- 25-23k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 250watts
- Weight:22.14kg
- Dimensions (H x W x D): 1021.0" x 8-5/16" x 14-15/16"( 1021.0 x 212.0 x 380.0mm )
In the following sections, we will get into more detail in order to better understand how the Wharfedale EVO5.3 and KLH Kendall compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both EVO5.3 and Kendall are 3-way speakers.
| Driver |
Wharfedale EVO5.3 |
KLH Kendall |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1.375-inch
|
1-inch
|
|
Midrange
|
1 x 2-inch |
1 x 5.25-inch |
|
Woofer
|
2 x 5-inch
|
2 x 6.5-inch
|
EVO5.3 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter , a 2" Midrange and 2 x 5" woven Kevlar Woofer with a Crossover frequency at 825 Hz and 4 kHz. On the other hand, the Kendall features a 1" anodized aluminum Tweeter , a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer .
Frequency Response
EVO5.3 has a frequency range of 46-24k Hz whereas Kendall has a frequency range of 25-23k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the EVO5.3's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.3 is a 4 ohms speaker compared to the Kendall which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.3 can provide this impedance level.
These two speakers also have different sensitivity levels. EVO5.3 sensitivity is rated at 88 dB and the Kendall's is rated at 96 dB. This 8 dB difference makes the KLH Kendall a more sensitive speaker compared to Wharfedale EVO5.3, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
EVO5.3 can handle a max power of 150 watts RMS from the amp the whereas Kendall has a max power handling value of watts RMS, 150 watts less than the EVO5.3.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Kendall features Binding post posts which make bi-amping or bi-wiring possible. EVO5.3 has a Binding post which doesn't feature bi-amping/bi-wiring.
Wharfedale EVO5.3's Binding post terminals
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.3's and KLH Kendall's external dimensions. Wharfedale EVO5.3 has external dimensions of 933.0 x 266.0 x 285.0mm ( 36.7" × 10.5" × 12.8") whereas KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm ( 40-3/16 x 8-5/16 x 14-15/16inch) .
Wharfedale EVO5.3 is 88mm shorter and 95mm less deeper than KLH Kendall but it is also 54mm wider.

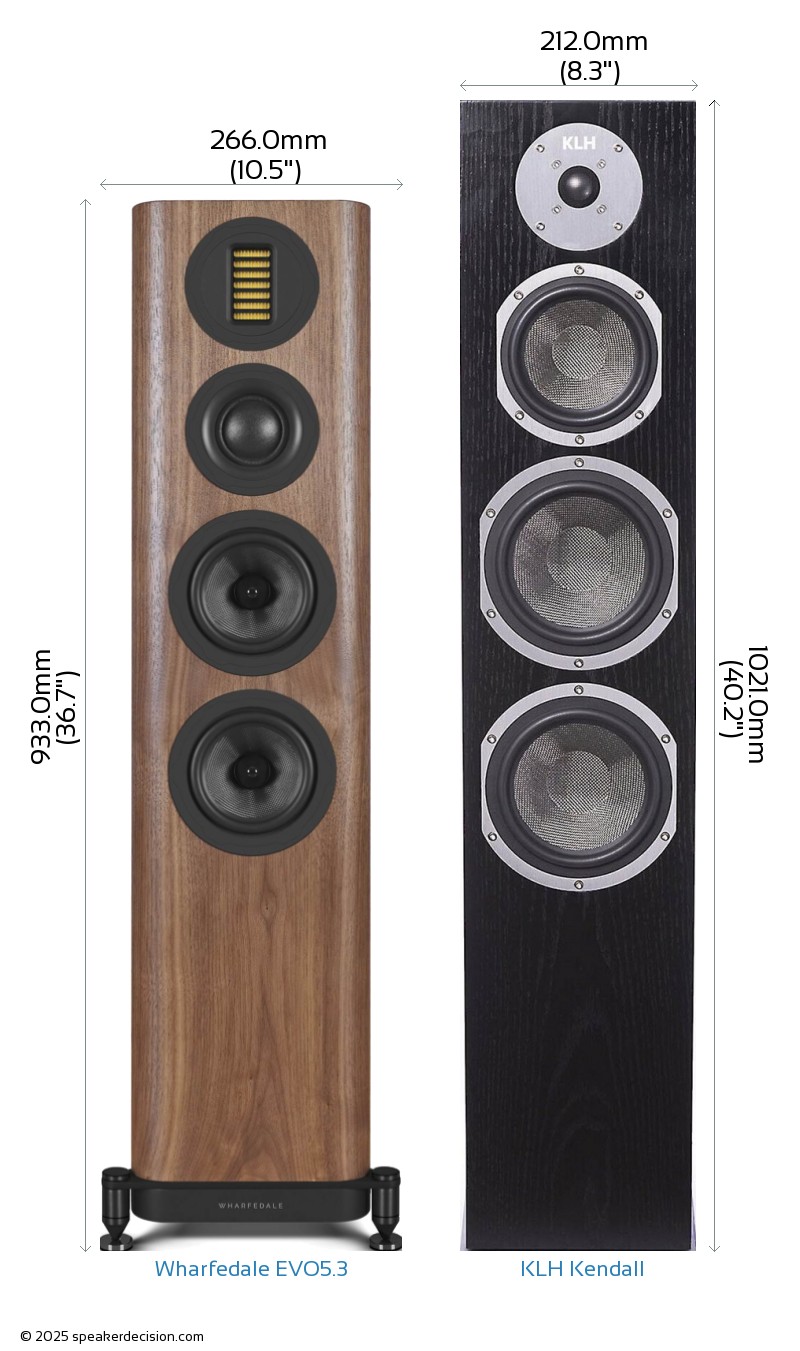

Below you can see the front view size comparison of Wharfedale EVO5.3 and KLH Kendall in scale.
Comparison image of Wharfedale EVO5.3 and KLH Kendall Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.3 is approximately 758.1cm2 / 117.5inch2 and base area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2. The EVO5.3 requires 6% less surface area than the Kendall which gives it a small advantage on placement in tight spaces.
