In this review, we will be comparing EVO5.2 and Evoke 30, two Passive Bookshelf speakers from Wharfedale and Dynaudio.
Let's have a brief look at the main features
of Wharfedale EVO5.2 and Dynaudio Evoke 10 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale EVO5.2 | Dynaudio Evoke 10 |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Dynaudio
Denmark · founded 1977 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1.375" AMT (Ribbon) | 1.1" |
|---|
| Midrange | 2" | — |
|---|
| Woofer | 6.5" woven Kevlar | 5.5" Magnesium Silicate Polymer |
|---|
| Frequency response | 44-24k Hz | 47-23k Hz |
|---|
| Sensitivity | 88 dB | 84 dB |
|---|
| Impedance | 4 ohms | 6 ohms |
|---|
| Power range | 25-120 watts | up to 160 watts |
|---|
| Weight | 15.05kg / 33.1lbs | 6.70kg / 14.7lbs |
|---|
| Dimensions (H x W x D) | 19.6" x 10.2" x 15.4"
497.0 x 260.0 x 391.0mm | 12.4" x 7.1" x 10.5"
315.0 x 180.0 x 266.0mm |
|---|
What size room are the Wharfedale EVO5.2 and Dynaudio Evoke 10 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO5.2 |
Dynaudio Evoke 10 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that EVO5.2 is a 3-way design whereas the Evoke 30 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Wharfedale EVO5.2Dynaudio Evoke 10
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale EVO5.2 |
Dynaudio Evoke 10 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1.375-inch
|
1.1-inch
|
|
Midrange
|
1 x 2-inch |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 5.5-inch
|
EVO5.2 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter, a 2" Midrange and 1 x 6.5" woven Kevlar Woofer with a Crossover frequency at 800 Hz and 4.3 kHz. On the other hand, the Evoke 30 features a 1.1" Cerotar with Hexis Tweeter and 1 x 5.5" Magnesium Silicate Polymer Woofer with a Crossover frequency at 1400Hz.
Frequency Response
EVO5.2 has a frequency range of 44-24k Hz whereas Evoke 30 has a frequency range of 47-23k Hz. With a minimum frequency of 44Hz, the EVO5.2 can go slightly deeper then the Evoke 30's min frequency of 47Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.2 is a 4 ohms speaker compared to the Evoke 30 which has a nominal impedance of 6 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.2 can provide this impedance level.
These two speakers also have different sensitivity levels. EVO5.2 sensitivity is rated at 88 dB and the Evoke 30's is rated at 84 dB. This 4 dB difference makes the Wharfedale EVO5.2 a more sensitive speaker compared to Dynaudio Evoke 10, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Evoke 30 can handle a max power of 160 watts RMS, whereas EVO5.2 has a max power handling value of 120 watts RMS, 40 watts less than the Evoke 30.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
EVO5.2 features Binding post type posts and Evoke 30 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale EVO5.2's Binding post terminals
Dynaudio Evoke 10's Binding post terminals
Cabinet Type and Port Position
EVO5.2 has a bottom firing port whereas Evoke 30 has a rear firing ports. Wharfedale EVO5.2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Dynaudio Evoke 10 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.2's and Dynaudio Evoke 10's external dimensions. Wharfedale EVO5.2 has external dimensions of 497.0 x 260.0 x 391.0mm (19.6" × 10.2" × 15.4") whereas Dynaudio Evoke 10 has external dimensions of 315.0 x 180.0 x 266.0mm (12.4 x 7.1 x 10.5inch).
Wharfedale EVO5.2 is clearly the larger of the two speakers. Its body is 80mm wider, 182mm taller and 125mm deeper than Dynaudio Evoke 10.

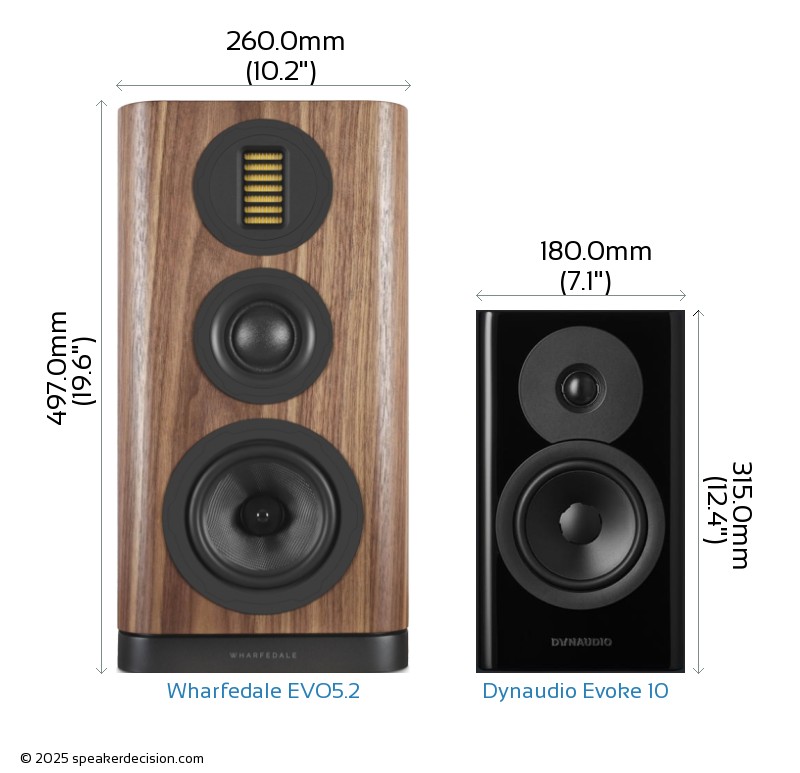

Below you can see the front view size comparison of Wharfedale EVO5.2 and Dynaudio Evoke 10 in scale.
Comparison image of Wharfedale EVO5.2 and Dynaudio Evoke 10 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.2 is approximately 1016.6cm2 / 157.6inch2 and base area of the Dynaudio Evoke 10 is approximately 478.8cm2 / 74.2inch2. The EVO5.2 requires 112% more surface area than the Evoke 30 which gives it a small disadvantage on placement in tight spaces.

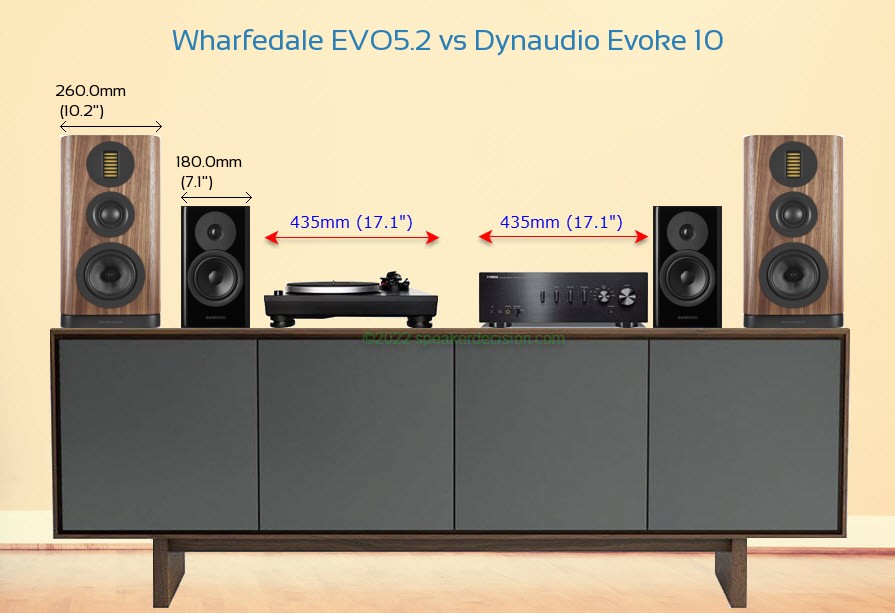

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Wharfedale EVO5.2 and Dynaudio Evoke 10 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale EVO5.2 weighs 15.05kg / 33.1lbs and the Dynaudio Evoke 10 weighs 6.70kg / 14.7lbs. This makes the EVO5.2 125% heavier than the Evoke 30.
Here is a comparison of how EVO5.2 and Evoke 30's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale EVO5.2?
Here are the items that are included inside the box of EVO5.2:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 4 Jumper-bars (pre-installed)
- 8 Self-adhesive rubber feet
- Pair of white cloth gloves
- User Manual
What's in the Box of Dynaudio Evoke 10?
Here are the items that come with the Evoke 30:
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
88 dB
vs
84 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.5 inches
vs
5.5 inches
|
Larger woofer |
|
Low Frequency Response |
44 Hz
vs
47 Hz
|
Generates deeper bass |
 High Frequency Response |
24k Hz
vs
23k Hz
|
Generates higher frequency |
 Price per pair* |
1799USD
vs
3398USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
160 watts
vs
120 watts
|
Handle more power from your amplifier |
 Nominal Impedance |
6 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Height |
315mm
vs
497mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
478cm2
vs
1016cm2
|
Takes less floor space |
| General |
Wharfedale EVO5.2 |
Dynaudio Evoke 10 |
| Brand |
Wharfedale |
Dynaudio |
| Speaker Type |
Bookshelf speakers |
Floor-standing speaker |
| Power Range |
25-120 watts |
up to 160 watts |
| Sensitivity |
88 dB |
84 dB |
| Impedance |
4 ohms |
6 ohms |
| Impedance |
3.2 ohms |
n/a |
| Frequency Response |
44-24k Hz |
47-23k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
5.5" |
| Woofer Composition |
woven Kevlar |
Magnesium Silicate Polymer |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.375" |
1.1" |
| Tweeter Type |
AMT (Ribbon) |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
2" |
No |
| Crossover Frequency |
800 Hz and 4.3 kHz |
1400Hz |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
497.0mm (19.6") |
315.0mm (12.4") |
| Width |
260.0mm (10.2") |
180.0mm (7.1") |
| Depth |
391.0mm (15.4") |
266.0mm (10.5") |
| Weight |
15.05kg (33.1lbs) |
6.70kg (14.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-veneer |
MDF/Wood veneer |
| Available Colors |
Walnut, Grey. Black, White |
Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
18-22" |
n/a |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years (8 Years registered) |
| Labor Warranty |
5 Years |
5 Years (8 Years registered) |
These sit in different price classes - Dynaudio Evoke 10 costs roughly 1.9x what Wharfedale EVO5.2 does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | A | Wharfedale EVO5.2 digs deeper - 44Hz against 47Hz. A subwoofer would even that out. |
| Amplifier needs | A | Wharfedale EVO5.2 is more sensitive (88dB vs 84dB), so it goes louder on the same amplifier. |
| Amplifier match | B | Dynaudio Evoke 10 is the easier load at 6 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | B | Dynaudio Evoke 10 takes more power (160W vs 120W) - more in hand in a big room. |
| Size | depends | Dynaudio Evoke 10 is easier to place; Wharfedale EVO5.2 is bigger, which usually goes with fuller bass. Your room decides. |
| Price | A | Wharfedale EVO5.2 is cheaper - $1,799 against $3,398, about 47% less; arguably a different class. |
A Wharfedale EVO5.2 B Dynaudio Evoke 10
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. In a large or open-plan room, Wharfedale EVO5.2 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Dynaudio Evoke 10 is the easier speaker to get right. If your amplifier is modest, vintage or valve-based, Wharfedale EVO5.2 is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
