In this review, we will be comparing two different type of speakers by SVS. SVS Prime Wireless is a Bookshelf speaker whereas the Prime Pinnacle is a Floor-standing speaker.
Let's have a brief look at the main features
of SVS Prime Wireless and SVS Prime Pinnacle first before getting into our more
detailed comparison.
SVS Prime Wireless Key Specs
- 2-way Design
- 200-watt RMS Integrated Amplifier
- 1" Dome Tweeter
- 4.5" composite glass-fiber Woofer
- 52-25k Hz Frequency Response
- 24-bit Max Depth / 192 kHz Max Sample Rate
- Built-in 4.0 Bluetooth
- App Control Feature
- Weight:3.96kg
- Dimensions (H x W x D): 260.0" x 6.125" x 8.6875"( 260.0 x 155.0 x 160.0mm )
SVS Prime Pinnacle Key Specs
- 3-way Design
- 1" dome Tweeter
- 5.25" Midrange
- 3 x 6.5" Polypropylene Woofer
- 5.25" Midrange
- 29-25k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-300watts
- Weight:25.95kg
- Dimensions (H x W x D): 1042.0" x 8" x 13-15/16"( 1042.0 x 204.0 x 355.0mm )
Prime Wireless and Prime Pinnacle are members of SVS's Prime series of speakers. Below you can find the loudspeakers from this series.
SVS Prime Series
History
|
Model |
Body |
Frequency |
Watts RMS | Max Depth / Sample Rate | Woofer |
 |
SVS Prime Wireless Pro
|
Bookshelf |
42-25k Hz |
200-watt | 24-bit/192 kHzΩ |
1 x 5.25"
|
 |
SVS Prime Wireless
|
Bookshelf |
52-25k Hz |
200-watt | 24-bit/192 kHzΩ |
1 x 4.5"
|
In the following sections, we will get into more detail in order to better understand how the SVS Prime Wireless and SVS Prime Pinnacle compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Prime Wireless is a 2-way design whereas the Prime Pinnacle is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
SVS Prime Wireless |
SVS Prime Pinnacle |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5.25-inch |
|
Woofer
|
1 x 4.5-inch
|
3 x 6.5-inch
|
Prime Wireless features a 1" aluminum Dome Tweeter and 1 x 4.5" composite glass-fiber Woofer with a Crossover frequency at 2000Hz. On the other hand, the Prime Pinnacle features a 1" aluminum dome Tweeter , a 5.25" Midrange and 3 x 6.5" Polypropylene Woofer with a Crossover frequency at 300Hz and 2100Hz.
Frequency Response
Prime Wireless has a frequency range of 52-25k Hz whereas Prime Pinnacle has a frequency range of 29-25k Hz. With a minimum frequency of 29Hz, the Prime Pinnacle can go significantly deeper on the low side and provide stronger bass compared to the Prime Wireless's min frequency of 52Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Cabinet Type and Port Position
Both Prime Wireless and Prime Pinnacle have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare SVS Prime Wireless's and SVS Prime Pinnacle's external dimensions. SVS Prime Wireless has external dimensions of 260.0 x 155.0 x 160.0mm ( 10.3125 x 6.125 x 8.6875inch) whereas SVS Prime Pinnacle has external dimensions of 1042.0 x 204.0 x 355.0mm ( 41 x 8 x 13-15/16inch) .
SVS Prime Pinnacle is clearly the larger of the two speakers. Its body is 49mm wider, 782mm taller and 195mm deeper than SVS Prime Wireless.

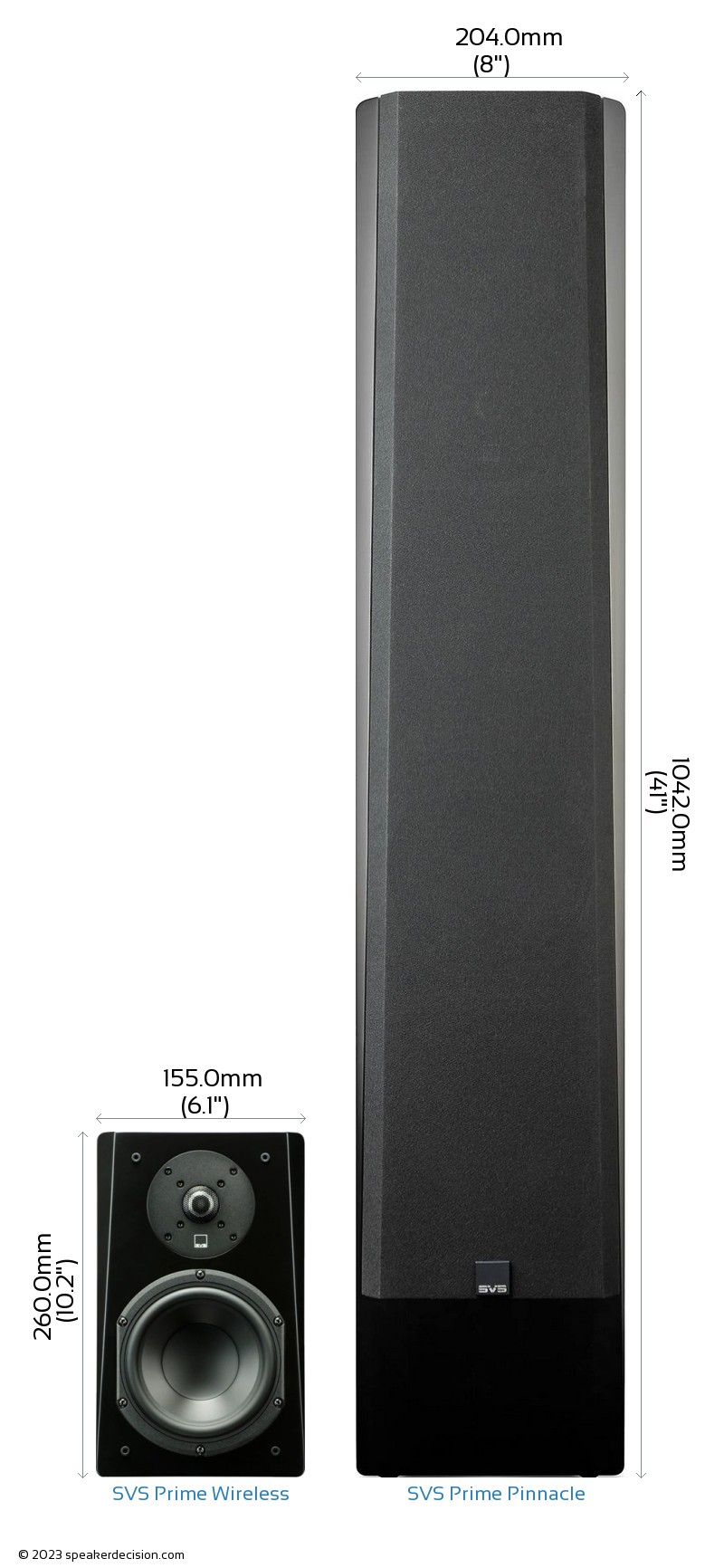

Below you can see the front view size comparison of SVS Prime Wireless and SVS Prime Pinnacle in scale.
Comparison image of SVS Prime Wireless and SVS Prime Pinnacle Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the SVS Prime Wireless is approximately 248.0cm2 / 38.4inch2 and base area of the SVS Prime Pinnacle is approximately 724.2cm2 / 112.3inch2. The Prime Wireless requires 66% less surface area than the Prime Pinnacle which gives it a small advantage on placement in tight spaces.
What's in the Box of SVS Prime Wireless?
Here are the items that are included inside the box of Prime Wireless:
Active wireless speaker6-feet AC power cordGrille (pre-installed)4 Self-adhesive feetQuick Start GuideWarranty/Registration CardSVS brochure
What's in the Box of SVS Prime Pinnacle?
Here are the items that come with the Prime Pinnacle:
Floorstanding loudspeakerGrille (pre-installed)4 Elastomer isolation feet (pre-installed)4 Spike feet4 Nuts4 Protective discsOwners ManualSVS brochureOnline Product Registration Card
