In this review, we will be comparing Prime Pinnacle and R-625FA, two Passive Floor-standing speakers from SVS and Klipsch.
Let's have a brief look at the main features
of SVS Prime Pinnacle and Klipsch R-625FA first before getting into our more
detailed comparison.
| Key Specs | SVS Prime Pinnacle | Klipsch R-625FA |
|---|
| Brand | SVS
United States · founded 1998 | Klipsch
United States · founded 1946 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1" dome | 1" |
|---|
| Midrange | 5.25" | — |
|---|
| Woofer | 3 x 6.5" Polypropylene | 2 x 6.5" Copper-spun IMG |
|---|
| Frequency response | 29-25k Hz | 38-21k Hz |
|---|
| Sensitivity | 88 dB | 96 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 20-300 watts | up to 100 watts |
|---|
| Weight | 25.95kg / 57.1lbs | 22.20kg / 48.8lbs |
|---|
| Dimensions (H x W x D) | 41" x 8" x 13-15/16"
1042.0 x 204.0 x 355.0mm | 40-3/16" x 9-3/8" x 16-3/4"
1021.0 x 239.0 x 426.0mm |
|---|
What size room are the SVS Prime Pinnacle and Klipsch R-625FA speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
SVS Prime Pinnacle |
Klipsch R-625FA |
| Near-field |
Bad |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Good |
Poor |
| Very Large Room |
Average |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Prime Pinnacle is a 3-way design whereas the R-625FA is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
SVS Prime PinnacleKlipsch R-625FA
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
SVS Prime Pinnacle |
Klipsch R-625FA |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
3 x 6.5-inch
|
2 x 6.5-inch
|
Prime Pinnacle features a 1" aluminum dome Tweeter, a 5.25" Midrange and 3 x 6.5" Polypropylene Woofer with a Crossover frequency at 300Hz and 2100Hz. On the other hand, the R-625FA features a 1" Tweeter and 2 x 6.5" Copper-spun IMG Woofer with a Crossover frequency at 2000Hz.
Frequency Response
Prime Pinnacle has a frequency range of 29-25k Hz whereas R-625FA has a frequency range of 38-21k Hz. With a minimum frequency of 29Hz, the Prime Pinnacle can go significantly deeper on the low side and provide stronger bass compared to the R-625FA's min frequency of 38Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Prime Pinnacle and R-625FA have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Prime Pinnacle sensitivity is rated at 88 dB and the R-625FA's is at 96 dB. This 8 dB difference makes the Klipsch R-625FA a more sensitive speaker compared to SVS Prime Pinnacle, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Prime Pinnacle can handle a max power of 300 watts RMS, whereas R-625FA has a max power handling value of 100 watts RMS, 200 watts less than the Prime Pinnacle.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Prime Pinnacle features Post type posts and R-625FA has a Post type posts. None of these speakers feature bi-amping/bi-wiring.
SVS Prime Pinnacle's 5-Way post terminals
Klipsch R-625FA's Post terminals
Cabinet Type and Port Position
Both Prime Pinnacle and R-625FA have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare SVS Prime Pinnacle's and Klipsch R-625FA's external dimensions. SVS Prime Pinnacle has external dimensions of 1042.0 x 204.0 x 355.0mm (41 x 8 x 13-15/16inch) whereas Klipsch R-625FA has external dimensions of 1021.0 x 239.0 x 426.0mm (40-3/16 x 9-3/8 x 16-3/4inch).
SVS Prime Pinnacle is 35mm narrower and 71mm less deeper than Klipsch R-625FA but it is also 21mm taller.

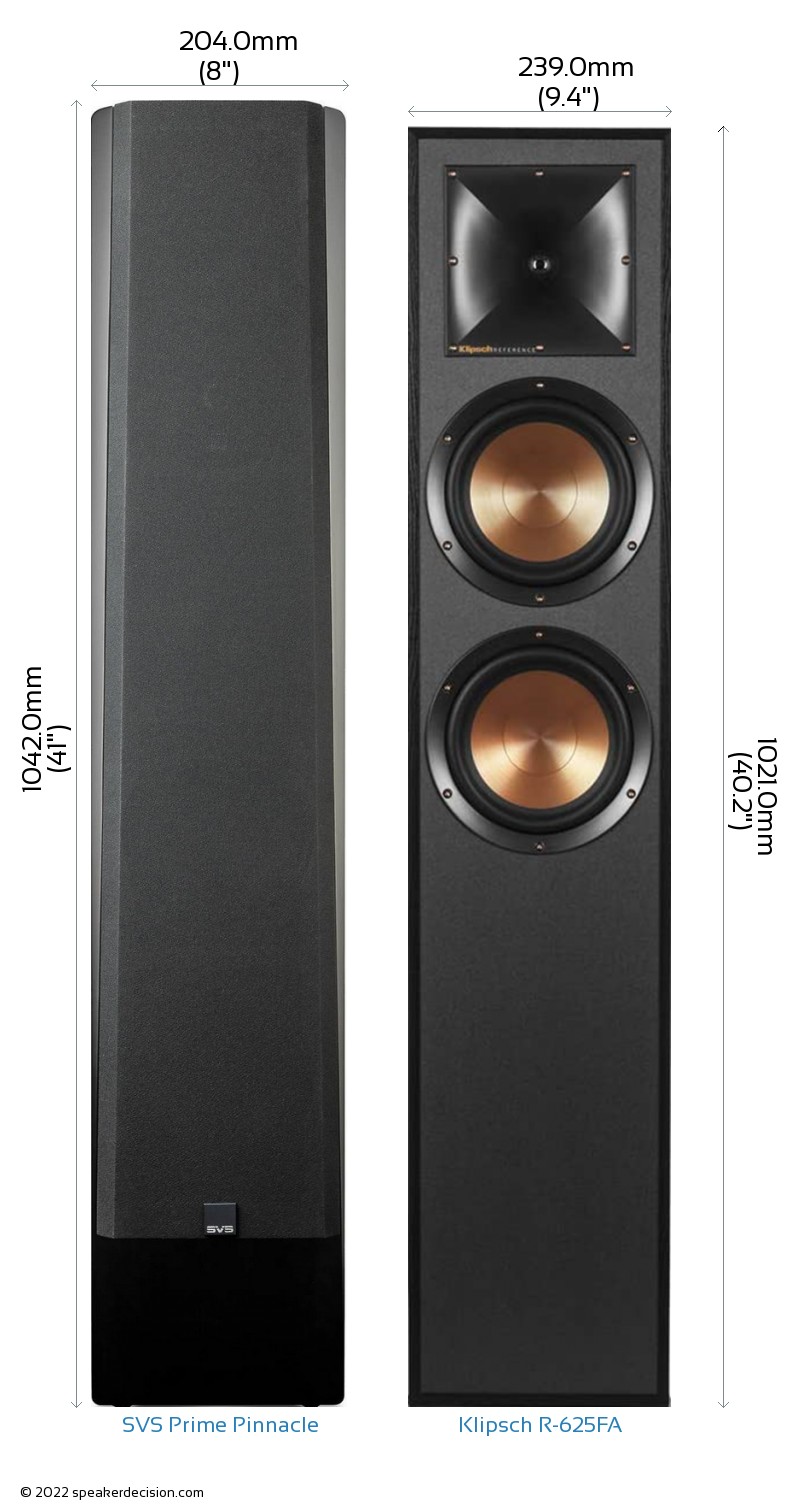

Below you can see the front view size comparison of SVS Prime Pinnacle and Klipsch R-625FA in scale.
Comparison image of SVS Prime Pinnacle and Klipsch R-625FA Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the SVS Prime Pinnacle is approximately 724.2cm2 / 112.3inch2 and base area of the Klipsch R-625FA is approximately 1018.1cm2 / 157.8inch2. The Prime Pinnacle requires 29% less surface area than the R-625FA which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The SVS Prime Pinnacle weighs 25.95kg / 57.1lbs and the Klipsch R-625FA weighs 22.20kg / 48.8lbs. This makes the Prime Pinnacle 17% heavier than the R-625FA.
Here is a comparison of how Prime Pinnacle and R-625FA's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of SVS Prime Pinnacle?
Here are the items that are included inside the box of Prime Pinnacle:
- Floorstanding loudspeaker
- Grille (pre-installed)
- 4 Elastomer isolation feet (pre-installed)
- 4 Spike feet
- 4 Nuts
- 4 Protective discs
- Owners Manual
- SVS brochure
- Online Product Registration Card
What's in the Box of Klipsch R-625FA?
Here are the items that come with the R-625FA:
- Floorstanding loudspeaker
- 2 Grilles (installed)
- 2 Feet
- 4 Screws
- Quick Setup Guide
- Important Safety Instructions
- Warranty Information
- Loudspeaker Feet note
 Max Input Power |
300 watts
vs
100 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Number of Woofers |
3
vs
2
|
More woofers |
|
Low Frequency Response |
29 Hz
vs
38 Hz
|
Generates deeper bass |
 High Frequency Response |
25k Hz
vs
21k Hz
|
Generates higher frequency |
 Base Surface Area |
724cm2
vs
1018cm2
|
Takes less floor space |
 Sensitivity |
96 dB
vs
88 dB
|
Play louder with same amount of amplification power |
 Dolby Atmos Drivers |
Built-in 1 x 5.25
vs
No
|
Dolby Atmos Compatibility |
 Height |
1021mm
vs
1042mm
|
Easier to fit in smaller spaces |
 Price per pair* |
1658USD
vs
2000USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
SVS Prime Pinnacle |
Klipsch Reference R-625FA |
| Brand |
SVS |
Klipsch |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
20-300 watts |
up to 100 watts |
| Sensitivity |
88 dB |
96 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
29-25k Hz |
38-21k Hz |
Drivers |
|
|
| Woofer Quantity |
3 |
2 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Polypropylene |
Copper-spun IMG |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
dome |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
No |
| Crossover Frequency |
300Hz and 2100Hz |
2000Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
1042.0mm (41") |
1021.0mm (40.2") |
| Width |
204.0mm (8") |
239.0mm (9.4") |
| Depth |
355.0mm (14") |
426.0mm (16.8") |
| Weight |
25.95kg (57.1lbs) |
22.20kg (48.8lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
MDF/Wood-grain vinyl |
| Available Colors |
Black |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | A | SVS Prime Pinnacle digs deeper - 29Hz against 38Hz. A subwoofer would even that out. |
| Amplifier needs | B | Klipsch R-625FA is more sensitive (96dB vs 88dB), so it goes louder on the same amplifier. |
| Headroom | A | SVS Prime Pinnacle takes more power (300W vs 100W) - more in hand in a big room. |
| Size | depends | SVS Prime Pinnacle is easier to place; Klipsch R-625FA is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Klipsch R-625FA: Atmos drivers. SVS Prime Pinnacle sits in a wider range (8 models), so a matched surround system is easier later. |
| Price | B | Klipsch R-625FA is cheaper - $1,658 against $2,000, about 17% less. |
A SVS Prime Pinnacle B Klipsch R-625FA
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
The usual trade-off: SVS Prime Pinnacle measures better, Klipsch R-625FA costs about about 21% more% less. Whether that gap is worth the money is the call only you can make - and in a normal room it is often smaller than the numbers suggest. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 38Hz anyway, which makes the cheaper Klipsch R-625FA much easier to justify. Match it to your room: we rate SVS Prime Pinnacle the better fit for a large room and a very large room, and Klipsch R-625FA for a small room and a mid-size room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
