Revel W363 vs Revel W763 Speaker Comparison

In this review, we will be comparing W363 and W763, two Passive In-wall speakers by Revel.

Let's have a brief look at the main features of Revel W363 and Revel W763 first before getting into our more detailed comparison.

Key Specs	Revel W363	Revel W763
Brand	Revel United States · founded 1996	Revel United States · founded 1996
Design	2-way	2-way
Tweeter	1"	1"
Woofer	6.5"	6.5"
Sensitivity	88 dB	89 dB
Impedance	8 ohms	8 ohms
Power range	10 - 120 W watts	10 - 140 W watts
Weight	1.72kg / 3.8lbs	2.45kg / 5.4lbs
Dimensions (H x W x D)	10-7/8" x 8-3/8" x 3-9/16" 276.2 x 212.7 x 91.0mm	10-7/8" x 8-3/8" x 3-9/16" 276.2 x 212.7 x 91.0mm

W363 and W763 are members of Revel's Architectural series of speakers. Below you can find the loudspeakers from this series.

Revel Architectural Series History

Model	Body	Frequency	Sensitivity	Impedance	Woofer
Revel W253L	In-wall	55-18kHz	91 dB	8Ω	2 x 5.25"
Revel W553L	Center Channel		90.5 dB	8Ω	2 x 5.25"
Revel W383	In-wall		89 dB	8Ω	1 x 8"
Revel W763	In-wall		89 dB	8Ω	1 x 6.5"
Revel W783	In-wall		89 dB	8Ω	1 x 8"
Revel W990	In-wall		89 dB	8Ω	1 x 9"
Revel W228Be	In-wall	35-40k Hz	90 dB	6Ω	2 x 8"
Revel W126Be	In-wall	55-40k Hz	89 dB	6Ω	1 x 6.5"
Revel W226Be	In-wall	45-40k Hz	90 dB	6Ω	2 x 6.5"
Revel W263	In-wall		88 dB	8Ω	1 x 6.5"

The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.

Drivers

Both W363 and W763 are 2-way speakers.

Revel W363

Revel W763

TweeterWoofer

Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.

Driver	Revel W363	Revel W763
Driver Setup	2-way	2-way
Tweeter	1-inch	1-inch
Midrange	-	-
Woofer	1 x 6.5-inch	1 x 6.5-inch

W363 features a 1" Tweeter and 1 x 6.5" Woofer. On the other hand, the W763 features a 1" Tweeter and 1 x 6.5" Woofer.

Frequency Response

W363 and W763 has exactly the same frequency range of .

The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

W363

W763

Min

Average

Median

Impedance and Sensitivity

W363 and W763 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. W363 sensitivity is rated at 88 dB and the W763's is at 89 dB. This 1 dB difference makes the Revel W763 a more sensitive speaker compared to Revel W363, hence will play louder with the same amount of watts.

Sensitivity

In-wall Speakers

W363

W763

Min

Average

Median

Power Range

Power range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.

W763 can handle a max power of 140 watts RMS, whereas W363 has a max power handling value of 120 watts RMS, 20 watts less than the W763.

Note that higher power handling does not make a speaker louder: that depends mainly on sensitivity and impedance. The calculator below shows how loud each of these actually plays on a real amplifier.

Which plays louder on your amplifier?

Starting with a popular amplifier - change it to the one you own, or any you are considering, and watch both numbers move.

Amplifier - change this

Distance

Playing as

Revel W363

Revel W763

Input Type and Bi-Amping / Bi-Wiring

W363 features Spring post type posts and W763 has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.

Physical Specs

The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel W363's and Revel W763's external dimensions. Revel W363 has external dimensions of 276.2 x 212.7 x 91.0mm () whereas Revel W763 has external dimensions of 276.2 x 212.7 x 91.0mm ().

In this case, we can see that Revel W363 and Revel W763 have the exact same height, width and thickness.

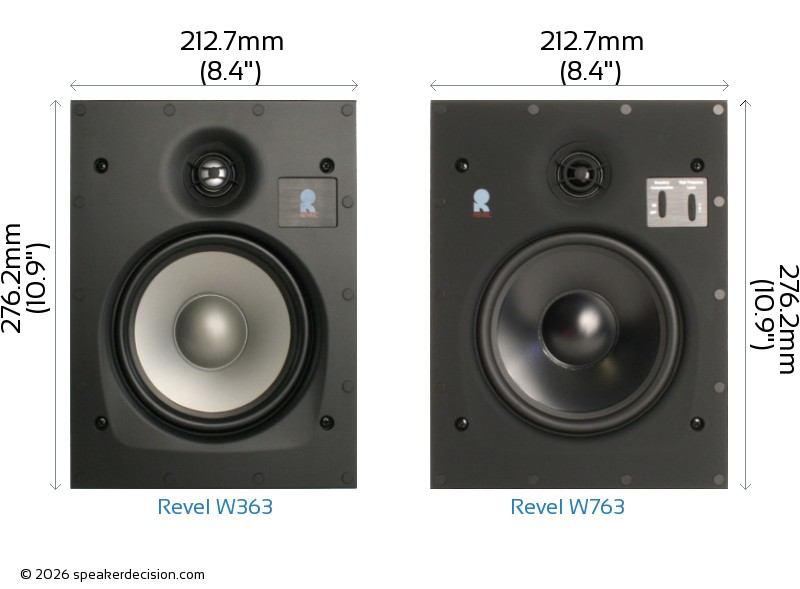

Below you can see the front view size comparison of Revel W363 and Revel W763 in scale.

Comparison image of Revel W363 and Revel W763 Size and External Dimensions

Weight Comparison

The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel W363 weighs 1.72kg / 3.8lbs and the Revel W763 weighs 2.45kg / 5.4lbs. This makes the W763 42% heavier than the W363.

Here is a comparison of how W363 and W763's weights compare with the average, max and min weights in Passive In-wall class.

Weight
All In-wall Speakers

Revel W363

Revel W763

Min

Average

Max

Reasons to choose Revel W363 over Revel W763

Price per pair*	610USD vs 1210USD	costs less (*prices may change depending on the seller, location and time)

Reasons to choose Revel W763 over Revel W363

Max Input Power	140 watts vs 120 watts	Handle more power from your amplifier
Sensitivity	89 dB vs 88 dB	Play louder with same amount of amplification power

Revel W363 vs Revel W763 Specs Table

Detailed comparison of specifications

General	Revel W363	Revel W763
Brand	Revel	Revel
Speaker Type	Passive In-wall Speaker	Passive In-wall Speaker
Power Range	10 - 120 W watts	10 - 140 W watts
Sensitivity	88 dB	89 dB
Impedance	8 ohms	8 ohms
Frequency Response
Drivers
Woofer Quantity	1	1
Woofer Size	6.5"	6.5"
Woofer Composition
Tweeter Size	1"	1"
Aimable Tweeter	No	No
Midrange Driver	No	No
Physical Specs
Height	276.2mm (10.9")	276.2mm (10.9")
Width	212.7mm (8.4")	212.7mm (8.4")
Depth	91.0mm (3.6")	91.0mm (3.6")
Weight	1.72kg (3.8lbs)	2.45kg (5.4lbs)
Enclosure
Moisture Resistancy	No	No
Connections
Other
Parts Warranty	Lifetime	Lifetime
Labor Warranty	Lifetime	Lifetime

Verdict

Siblings in Revel's Architectural series, so they share a family sound. It comes down to size, output and price.

Area	Better	Why
Amplifier needs	evenly matched	Similar sensitivity (88dB vs 89dB) - both want much the same power.
Headroom	evenly matched	Similar power handling (120W vs 140W).
Size	depends	Similar cabinet size - neither is easier to fit.
Price	A	Revel W363 is cheaper - $610 against $1,210, about 50% less; arguably a different class.

A Revel W363 B Revel W763
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.

Which should you choose?

Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. Think about the whole system, not just the speakers: the roughly $600 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.

And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
