In this review, we will be comparing Revel Performa4 F346 and Motion XT F200, two Passive Floor-standing speakers from Revel and MartinLogan.
Let's have a brief look at the main features
of Revel Performa4 F346 and MartinLogan Motion XT F200 first before getting into our more
detailed comparison.
Revel Performa4 F346 Key Specs
- 1" Hard-Dome Tweeter
- 3 x 6.5" Micro Ceramic Composite (MCC) Woofer
- 30-40k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-250watts
- Weight:39.77kg
- Dimensions (H x W x D): 1129.0" x 14-1/8" x 16-3/8"( 1129.0 x 359.0 x 416.0mm )
MartinLogan Motion XT F200 Key Specs
- 3-way Design
- 1.25 x 2.4" Folded Motion XT Tweeter
- 6.5" Midrange
- 3 x 8" Aluminum Woofer
- 6.5" Midrange
- 27-25k Hz Frequency Response
- 92 dB Sensitivity
- Impedance: 4ohms
- Power Range:20-600watts
- Weight:39.00kg
- Dimensions (H x W x D): 1289.0" x 13-3/4" x 16-1/2"( 1289 x 349 x 419mm )
In the following sections, we will get into more detail in order to better understand how the Revel Performa4 F346 and MartinLogan Motion XT F200 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that Revel Performa4 F346 is a -way design whereas the Motion XT F200 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Revel Performa4 F346 |
MartinLogan Motion XT F200 |
|
Driver Setup
|
-way
|
3-way
|
|
Tweeter
|
1-inch
|
1.25 x 2.4-inch
|
|
Midrange
|
- |
1 x 6.5-inch |
|
Woofer
|
3 x 6.5-inch
|
3 x 8-inch
|
Revel Performa4 F346 features a 1" Hard-Dome Tweeter and 3 x 6.5" Micro Ceramic Composite (MCC) Woofer . On the other hand, the Motion XT F200 features a 1.25 x 2.4" Folded Motion XT Tweeter , a 6.5" Midrange and 3 x 8" Aluminum Woofer with a Crossover frequency at 300Hz and 2600Hz.
Frequency Response
Revel Performa4 F346 has a frequency range of 30-40k Hz whereas Motion XT F200 has a frequency range of 27-25k Hz. With a minimum frequency of 27Hz, the Motion XT F200 can go slightly deeper then the Revel Performa4 F346's min frequency of 30Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
MartinLogan Motion XT F200
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Revel Performa4 F346 is a 6 ohms speaker compared to the Motion XT F200 which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Motion XT F200 can provide this impedance level.
These two speakers also have different sensitivity levels. Revel Performa4 F346 sensitivity is rated at 88 dB and the Motion XT F200's is rated at 92 dB. This 4 dB difference makes the MartinLogan Motion XT F200 a more sensitive speaker compared to Revel Performa4 F346, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Revel Performa4 F346 can handle a max power of 600 watts RMS from the amp the whereas Revel Performa4 F346 has a max power handling value of 250 watts RMS , 350 watts less than the Motion XT F200.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Revel Performa4 F346 and Motion XT F200 features dual binding post speaker terminals for bi-amping or bi-wiring.
MartinLogan Motion XT F200's Custom 5-way bi-wire tool-less binding posts terminals allows Bi-amping or bi-wiring
Physical Specs

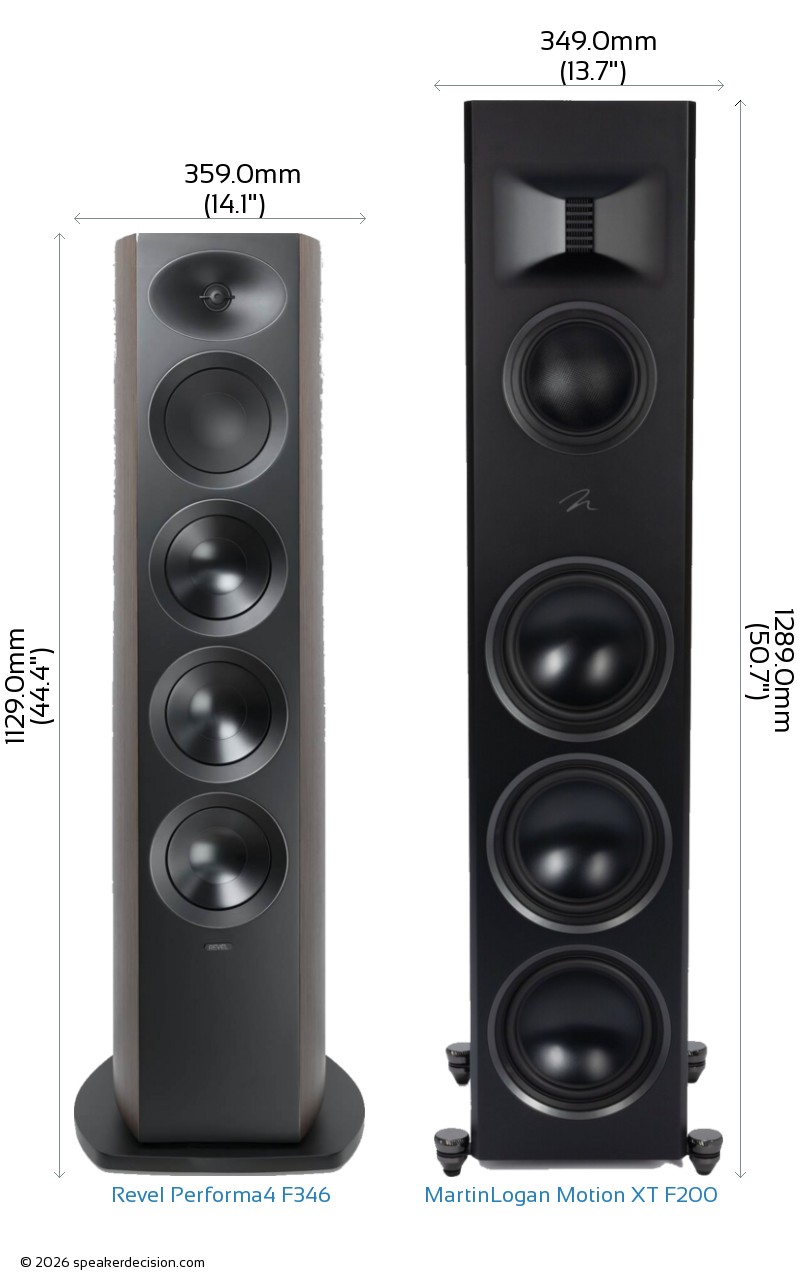

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Performa4 F346's and MartinLogan Motion XT F200's external dimensions. Revel Performa4 F346 has external dimensions of 1129.0 x 359.0 x 416.0mm ( 44-7/16inch x 14-1/8inch x 16-3/8inch ) whereas MartinLogan Motion XT F200 has external dimensions of 1289 x 349 x 419mm ( 50-3/4inch x 13-3/4inch x 16-1/2inch ) .
Revel Performa4 F346 is 160mm shorter and 3mm less deeper than MartinLogan Motion XT F200 but it is also 10mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Performa4 F346 is approximately 1493.4cm2 / 231.5inch2 and base area of the MartinLogan Motion XT F200 is approximately 1462.3cm2 / 226.7inch2. The Revel Performa4 F346 requires 2% more surface area than the Motion XT F200 which gives it a small disadvantage on placement in tight spaces.
