In this review, we will be comparing Performa4 F345 and Performa4 F346, two Passive Floor-standing speakers by Revel.
Let's have a brief look at the main features
of Revel Performa4 F345 and Revel Performa4 F346 first before getting into our more
detailed comparison.
| Key Specs | Revel Performa4 F345 | Revel Performa4 F346 |
|---|
| Brand | Revel
United States · founded 1996 | Revel
United States · founded 1996 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Hard-Dome | 1" Hard-Dome |
|---|
| Woofer | 3 x 5.25" Micro Ceramic Composite (MCC) | 3 x 6.5" Micro Ceramic Composite (MCC) |
|---|
| Frequency response | 36-40k Hz | 30-40k Hz |
|---|
| Sensitivity | 87 dB | 88 dB |
|---|
| Impedance | 6 ohms | 6 ohms |
|---|
| Power range | 30-225 watts | 20-250 watts |
|---|
| Weight | 29.09kg / 64lbs | 39.77kg / 87.5lbs |
|---|
| Dimensions (H x W x D) | 41" x 11-15/16" x 13-15/16"
1042.0 x 304.0 x 355.0mm | 44-7/16" x 14-1/8" x 16-3/8"
1129.0 x 359.0 x 416.0mm |
|---|
Performa4 F345 and Performa4 F346 are members of Revel's Performa4 series of speakers. Below you can find the loudspeakers from this series.
Revel Performa4 Series
History
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Performa4 F345 and Performa4 F346 are 2-way speakers.
Revel Performa4 F345Revel Performa4 F346
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Revel Performa4 F345 |
Revel Performa4 F346 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
3 x 5.25-inch
|
3 x 6.5-inch
|
Performa4 F345 features a 1" Hard-Dome Tweeter and 3 x 5.25" Micro Ceramic Composite (MCC) Woofer. On the other hand, the Performa4 F346 features a 1" Hard-Dome Tweeter and 3 x 6.5" Micro Ceramic Composite (MCC) Woofer.
Frequency Response
Performa4 F345 has a frequency range of 36-40k Hz whereas Performa4 F346 has a frequency range of 30-40k Hz. With a minimum frequency of 30Hz, the Performa4 F346 can go significantly deeper on the low side and provide stronger bass compared to the Performa4 F345's min frequency of 36Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Performa4 F345 and Performa4 F346 have the same Impedance of 6 ohms but where they differ is the sensitivity levels. Performa4 F345 sensitivity is rated at 87 dB and the Performa4 F346's is at 88 dB. This 1 dB difference makes the Revel Performa4 F346 a more sensitive speaker compared to Revel Performa4 F345, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Performa4 F346 can handle a max power of 250 watts RMS, whereas Performa4 F345 has a max power handling value of 225 watts RMS, 25 watts less than the Performa4 F346.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Performa4 F345 and Performa4 F346 features dual binding post speaker terminals for bi-amping or bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Performa4 F345's and Revel Performa4 F346's external dimensions. Revel Performa4 F345 has external dimensions of 1042.0 x 304.0 x 355.0mm (41inch x 11-15/16inch x 13-15/16inch) whereas Revel Performa4 F346 has external dimensions of 1129.0 x 359.0 x 416.0mm (44-7/16inch x 14-1/8inch x 16-3/8inch).
Revel Performa4 F346 is clearly the larger of the two speakers. Its body is 55mm wider, 87mm taller and 61mm deeper than Revel Performa4 F345.

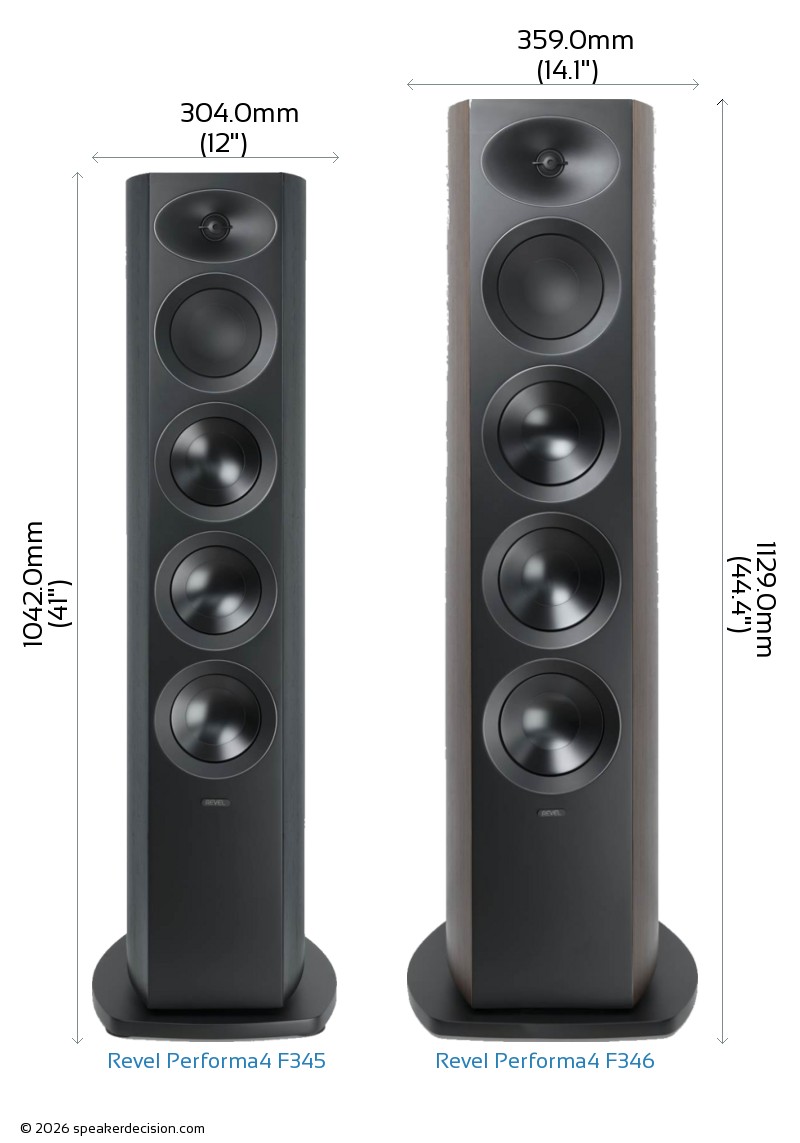

Below you can see the front view size comparison of Revel Performa4 F345 and Revel Performa4 F346 in scale.
Comparison image of Revel Performa4 F345 and Revel Performa4 F346 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Performa4 F345 is approximately 1079.2cm2 / 167.3inch2 and base area of the Revel Performa4 F346 is approximately 1493.4cm2 / 231.5inch2. The Performa4 F345 requires 28% less surface area than the Performa4 F346 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel Performa4 F345 weighs 29.09kg / 64lbs and the Revel Performa4 F346 weighs 39.77kg / 87.5lbs. This makes the Performa4 F346 37% heavier than the Performa4 F345.
Here is a comparison of how Performa4 F345 and Performa4 F346's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Revel Performa4 F345?
Here are the items that are included inside the box of Performa4 F345:
- Floorstanding loudspeaker
- Grille
- 2 Terminal jumpers (pre-installed)
- Four M8 Spikes
- 4 Nuts
- 4 Discs
- Quick Start Guide
What's in the Box of Revel Performa4 F346?
Here are the items that come with the Performa4 F346:
- Floorstanding loudspeaker
- Grille
- 2 Terminal jumpers (pre-installed)
- Four M8 Spikes
- 4 Nuts
- 4 Discs
- Quick Start Guide
 Height |
1042mm
vs
1129mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
1079cm2
vs
1493cm2
|
Takes less floor space |
 Price per pair* |
4998USD
vs
6998USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
250 watts
vs
225 watts
|
Handle more power from your amplifier |
 Sensitivity |
88 dB
vs
87 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.5 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
30 Hz
vs
36 Hz
|
Generates deeper bass |
| General |
Revel Performa4 F345 |
Revel Performa4 F346 |
| Brand |
Revel |
Revel |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
30-225 watts |
20-250 watts |
| Sensitivity |
87 dB |
88 dB |
| Impedance |
6 ohms |
6 ohms |
| Frequency Response |
36-40k Hz |
30-40k Hz |
Drivers |
|
|
| Woofer Quantity |
3 |
3 |
| Woofer Size |
5.25" |
6.5" |
| Woofer Composition |
Micro Ceramic Composite (MCC) |
Micro Ceramic Composite (MCC) |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome |
Hard-Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
6.5" |
Physical Specs |
|
|
| Height |
1042.0mm (41") |
1129.0mm (44.4") |
| Width |
304.0mm (12") |
359.0mm (14.1") |
| Depth |
355.0mm (14") |
416.0mm (16.4") |
| Weight |
29.09kg (64lbs) |
39.77kg (87.5lbs) |
| Enclosure |
|
|
| Finish |
MDF/Wood Veneer |
MDF/Wood Veneer |
| Available Colors |
Black |
Walnut |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
Siblings in Revel's Performa4 series, so they share a family sound. It comes down to size, output and price.
| Area | Better | Why |
|---|
| Bass | B | Revel Performa4 F346 digs deeper - 30Hz against 36Hz. A subwoofer would even that out. |
| Amplifier needs | evenly matched | Similar sensitivity (87dB vs 88dB) - both want much the same power. |
| Headroom | evenly matched | Similar power handling (225W vs 250W). |
| Size | depends | Revel Performa4 F345 is easier to place; Revel Performa4 F346 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Revel Performa4 F345: bi-amping; Revel Performa4 F346: bi-amping. |
| Price | A | Revel Performa4 F345 is cheaper - $4,998 against $6,998, about 29% less. |
A Revel Performa4 F345 B Revel Performa4 F346
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Revel Performa4 F346 is ahead, but only on 1 of the measured areas, and it costs about 40% more. That is a lot of money for a narrow margin on paper - Revel Performa4 F345 looks like the sensible buy unless something else about the Revel Performa4 F346 appeals to you. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 36Hz anyway, which makes the cheaper Revel Performa4 F345 much easier to justify. In a large or open-plan room, Revel Performa4 F346 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Revel Performa4 F345 is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
