Revel Performa4 C245 vs Revel Performa4 M145 Comparison

x
Speaker to replace
Change

Revel Performa4 C245

Passive Center Channel | 55-40k Hz

Revel Performa4 C245
Check price atAmazon›
Change

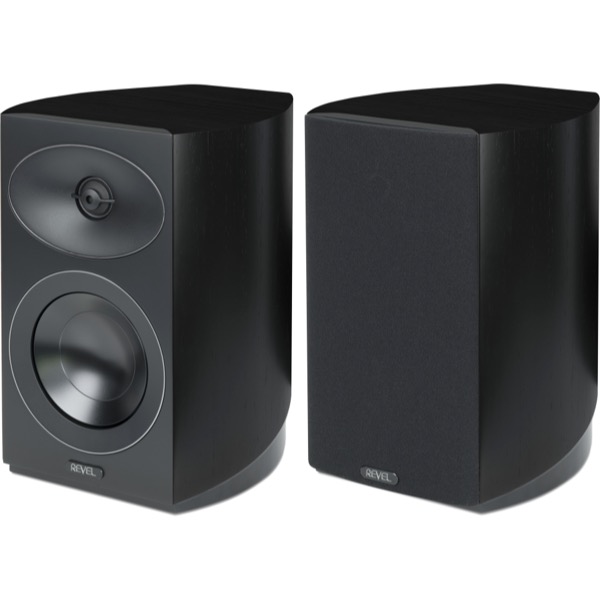

Revel Performa4 M145

Passive Bookshelf | 54-40k Hz

Revel Performa4 M145
Check price atAmazon›
Revel Performa4 C245 Revel Performa4 C245
Check price atAmazon›
Revel Performa4 M145 Revel Performa4 M145
Check price atAmazon›
Revel Performa4 C245
See at AMAZON
Revel Performa4 M145
See at AMAZON

Revel Performa4 C245 vs Revel Performa4 M145 Speaker Comparison

In this review, we will be comparing two different types of speakers by Revel. Revel Performa4 C245 is a Center Channel speaker whereas the Performa4 M145 is a Bookshelf speaker.

Let's have a brief look at the main features of Revel Performa4 C245 and Revel Performa4 M145 first before getting into our more detailed comparison.

Key SpecsRevel Performa4 C245Revel Performa4 M145
BrandRevel
United States · founded 1996
Revel
United States · founded 1996
Design2-way2-way
Tweeter1" Hard-Dome1" Hard-Dome
Woofer2 x 5-1/4"5.25" Micro Ceramic Composite (MCC)
Frequency response55-40k Hz54-40k Hz
Sensitivity86 dB85 dB
Impedance6 ohms6 ohms
Power range—15-150 watts
Weight12.32kg / 27.1lbs6.82kg / 15lbs
Dimensions (H x W x D)7-3/16" x 23-7/16" x 10-9/16"
183.0 x 596.0 x 269.0mm
11-5/8" x 7-15/16" x 9-5/8"
296.0 x 202.0 x 245.0mm

Performa4 C245 and Performa4 M145 are members of Revel's Performa4 series of speakers. Below you can find the loudspeakers from this series.

Revel Performa4 Series History
Model Body Frequency SensitivityImpedance Woofer
Revel Performa4 F346

Floor-standing 30-40k Hz 88 dB6Ω 3 x 6.5"
Revel Performa4 C245
Center Channel 55-40k Hz 86 dB6Ω 2 x 5-1/4"
Revel Performa4 M145
Bookshelf 54-40k Hz 85 dB6Ω 1 x 5.25"
Revel Performa4 F345

Floor-standing 36-40k Hz 87 dB6Ω 3 x 5.25"
Revel Performa4 M146

Bookshelf 43-40k Hz 85.5 dB6Ω 1 x 6.5"

The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.


Drivers

Both Performa4 C245 and Performa4 M145 are 2-way speakers.

Tweeter - 1 inch
Revel Performa4 C245
Tweeter - 1 inchWoofer - 5.25 inch
Revel Performa4 M145

TweeterWoofer

Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.

Driver Revel Performa4 C245 Revel Performa4 M145
Driver Setup 2-way 2-way
Tweeter 1-inch 1-inch
Midrange - -
Woofer 2 x 5-1/4-inch 1 x 5.25-inch

Performa4 C245 features a 1" Hard-Dome Tweeter and 2 x 5-1/4" Woofer. On the other hand, the Performa4 M145 features a 1" Hard-Dome Tweeter and 1 x 5.25" Micro Ceramic Composite (MCC) Woofer.

Frequency Response

Performa4 C245 has a frequency range of 55-40k Hz whereas Performa4 M145 has a frequency range of 54-40k Hz. With a minimum frequency of 54Hz, the Performa4 M145 can go slightly deeper then the Performa4 C245's min frequency of 55Hz.

The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Center Channel class in our database.

Low Frequency

Center Channel Speakers

Performa4 C245
Performa4 M145
Min
Average
Median

Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

Performa4 C245 and Performa4 M145 have the same Impedance of 6 ohms but where they differ is the sensitivity levels. Performa4 C245 sensitivity is rated at 86 dB and the Performa4 M145's is at 85 dB. This 1 dB difference makes the Revel Performa4 C245 a more sensitive speaker compared to Revel Performa4 M145, hence will play louder with the same amount of watts.

Sensitivity

Center Channel Speakers

Performa4 C245
Performa4 M145
Min
Average
Median

Which plays louder on your amplifier?

Starting with a popular amplifier - change it to the one you own, or any you are considering, and watch both numbers move.

Revel Performa4 C245

Revel Performa4 M145


Input Type and Bi-Amping / Bi-Wiring

Performa4 C245 features Binding post type posts and Performa4 M145 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.

Physical Specs

The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Performa4 C245's and Revel Performa4 M145's external dimensions. Revel Performa4 C245 has external dimensions of 183.0 x 596.0 x 269.0mm (7-3/16inch x 23-7/16inch x 10-9/16inch) whereas Revel Performa4 M145 has external dimensions of 296.0 x 202.0 x 245.0mm (11-5/8inch x 7-15/16inch x 9-5/8inch).

Revel Performa4 M145 is 394mm narrower and 24mm less deeper than Revel Performa4 C245 but it is also 113mm taller.

Size, drawn to scale

FRONTRevel Performa4 C245 front: 596 x 183 mm (23.5 x 7.2 in)Revel Performa4 M145 front: 202 x 296 mm (8 x 11.7 in)Revel Performa4 C245596 × 183 mmRevel Performa4 M145202 × 296 mmTOP / FOOTPRINTRevel Performa4 C245 footprint: 596 x 269 mm (23.5 x 10.6 in)Revel Performa4 M145 footprint: 202 x 245 mm (8 x 9.6 in)Revel Performa4 C245596 × 269 mmRevel Performa4 M145202 × 245 mm
Both speakers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.

One scale for both, standing on the same surface and pushed back to the same wall, so the deeper one visibly sticks out further.

Revel Performa4 C245 needs about 224% more floor or shelf area. Revel Performa4 C245 is 24mm deeper, so it stands that much further out from the wall. Revel Performa4 M145 is 113mm taller.

Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base surface area of the Revel Performa4 C245 is approximately 1603.2cm2 / 248.5inch2 and base area of the Revel Performa4 M145 is approximately 494.9cm2 / 76.7inch2. The Performa4 C245 requires 224% more surface area than the Performa4 M145 which gives it a small disadvantage on placement in tight spaces.

What's in the Box of Revel Performa4 C245?

Here are the items that are included inside the box of Performa4 C245:
  • Center-channel loudspeaker
  • Grille
  • Four M8 Spike feet
  • 4 Protective discs
  • 4 Nuts
  • Port plug
  • Quick Start Guide

What's in the Box of Revel Performa4 M145?

Here are the items that come with the Performa4 M145:
  • 2 Bookshlef loudspeakers
  • 2 Grilles
  • 8 Self-adhesive feet
  • 2 Port plugs
  • Quick Start Guide


Reasons to choose Revel Performa4 C245 over Revel Performa4 M145

Sensitivity 86 dB vs 85 dB Play louder with same amount of amplification power
Number of Woofers 2 vs 1 More woofers
Height 183mm vs 296mm Easier to fit in smaller spaces

Reasons to choose Revel Performa4 M145 over Revel Performa4 C245

Woofer Size 5.25 inches vs 5-1/4 inches Larger woofer
Low Frequency Response 54 Hz vs 55 Hz Generates deeper bass
Base Surface Area 494cm2 vs 1603cm2 Takes less floor space
Price per pair* 1999USD vs 3998USD costs less (*prices may change depending on the seller, location and time)

Revel Performa4 C245 vs Revel Performa4 M145 Specs Table

Detailed comparison of specifications
General Revel Performa4 C245 Revel Performa4 M145
Brand Revel Revel
Speaker Type Center channel speaker Bookshelf speakers
Sensitivity 86 dB 85 dB
Impedance 6 ohms 6 ohms
Frequency Response 55-40k Hz 54-40k Hz
Drivers
Woofer Quantity 2 1
Woofer Size 5-1/4" 5.25"
Woofer Composition Micro Ceramic Composite (MCC)
Woofer Surround Material n/a Rubber
Tweeter Size 1" 1"
Tweeter Type Hard-Dome Hard-Dome
Aimable Tweeter No No
Midrange Driver No No
Physical Specs
Height 183.0mm (7.2") 296.0mm (11.7")
Width 596.0mm (23.5") 202.0mm (8")
Depth 269.0mm (10.6") 245.0mm (9.6")
Weight 12.32kg (27.1lbs) 6.82kg (15lbs)
Enclosure
Finish n/a MDF/Wood Veneer
Available Colors Walnut Black
Mounting Bracket No No
Recommended Stand Height n/a 26-28"
Moisture Resistancy No No
Connections
Biamp Inputs n/a No
Other
Parts Warranty 5 Years 5 Years
Labor Warranty 5 Years 5 Years

Verdict

Siblings in Revel's Performa4 series, so they share a family sound. It comes down to size, output and price.

AreaBetterWhy
Bassevenly matchedMuch the same reach (55Hz vs 54Hz).
Amplifier needsevenly matchedSimilar sensitivity (86dB vs 85dB) - both want much the same power.
SizedependsRevel Performa4 M145 is easier to place; Revel Performa4 C245 is bigger, which usually goes with fuller bass. Your room decides.
TypedependsA Passive Center Channel against a Passive Bookshelf - a different job rather than a better one.
PriceBRevel Performa4 M145 is cheaper - $1,999 against $3,998, about 50% less; arguably a different class.

A Revel Performa4 C245  B Revel Performa4 M145
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.

Which should you choose?

Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. In a large or open-plan room, Revel Performa4 C245 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Revel Performa4 M145 is the easier speaker to get right. Think about the whole system, not just the speakers: the roughly $1,999 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.

And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
