In this review, we will be comparing Q Acoustics 5020 and Q Acoustics 5010, two Passive Bookshelf speakers by Q Acoustics Let's have a brief look at the main features
of Q Acoustics 5020 and Q Acoustics 5010 first before getting into our more
detailed comparison.
Q Acoustics 5020 and Q Acoustics 5010 are members of Q Acoustics's 5000 series of speakers. Below you can find the loudspeakers from this series.
Q Acoustics 5000 Series History
What size room are the Q Acoustics 5020 and Q Acoustics 5010 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Q Acoustics 5020 and Q Acoustics 5010 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Q Acoustics 5020 and Q Acoustics 5010 are 2-way speakers.
Driver |
Q Acoustics 5020 |
Q Acoustics 5010 |
Driver Setup
|
2-way
|
2-way
|
Tweeter
|
1-inch
|
1-inch
|
Midrange
|
- |
- |
Woofer
|
1 x 5-inch
|
1 x 4.5-inch
|
Q Acoustics 5020 features a 1" Soft-dome Tweeter and 1 x 5" Continuous Curved Cone Woofer with a Crossover frequency at 2500 Hz. On the other hand, the Q Acoustics 5010 features a 1" Soft-dome Tweeter and 1 x 4.5" Continuous Curved Cone Woofer with a Crossover frequency at 2500 Hz.
Frequency Response
Q Acoustics 5020 has a frequency range of 53-30k Hz whereas Q Acoustics 5010 has a frequency range of 56-30k Hz. With a minimum frequency of 53Hz, the Q Acoustics 5020 can go slightly deeper then the Q Acoustics 5010's min frequency of 56Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Q Acoustics 5020 and Q Acoustics 5010 have the same Impedance of 6 ohms but where they differ is the sensitivity levels. Q Acoustics 5020 sensitivity is rated at 87.9 dB and the Q Acoustics 5010's is at 86.3 dB. This 2 dB difference makes the Q Acoustics 5020 a more sensitive speaker compared to Q Acoustics 5010, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Q Acoustics 5020 can handle a max power of 100 watts RMS from the amp the whereas Q Acoustics 5010 has a max power handling value of 90 watts RMS, 10 watts less than the Q Acoustics 5020.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Q Acoustics 5020 features Binding post type posts and Q Acoustics 5010 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Q Acoustics 5020's Binding post terminals
Q Acoustics 5010's Binding post terminals
Cabinet Type and Port Position
Both Q Acoustics 5020 and Q Acoustics 5010 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

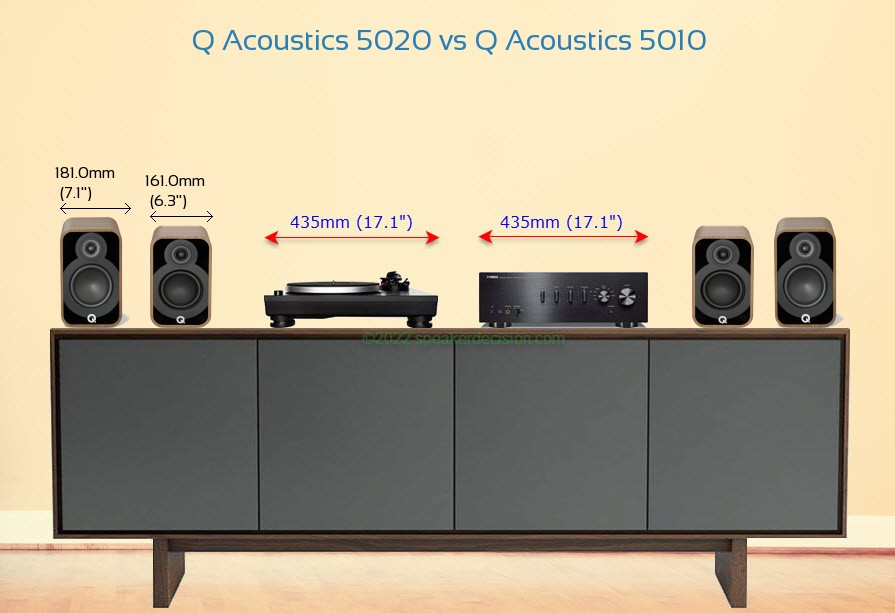

Physical Specs

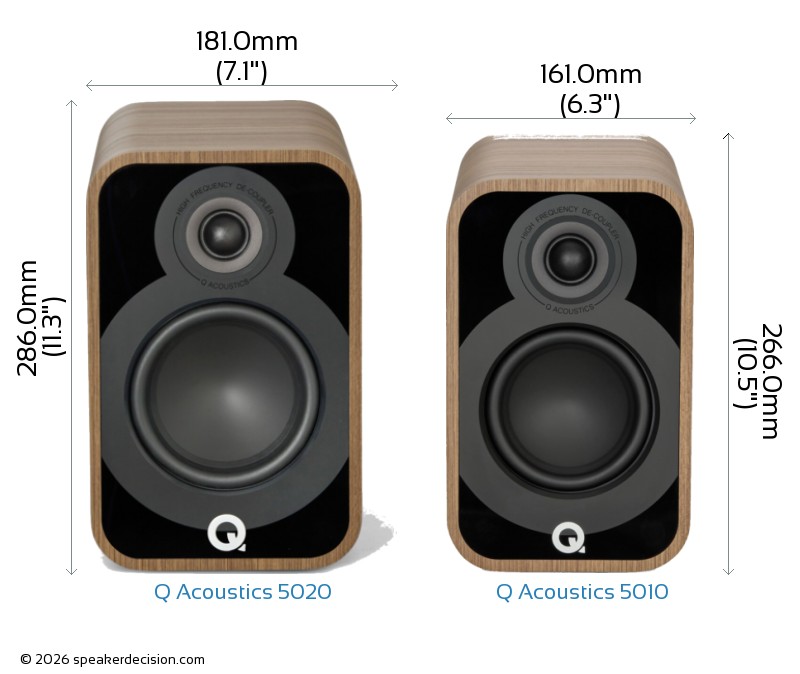

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Q Acoustics 5020's and Q Acoustics 5010's external dimensions. Q Acoustics 5020 has external dimensions of 286.0 x 181.0 x 293.0mm ( 11-1/4nch x 7-1/8inch x 11-1/2inch ) whereas Q Acoustics 5010 has external dimensions of 266.0 x 161.0 x 266.0mm ( 10-7/16inch x 6-5/16inch x 10-7/16inch ) .
Q Acoustics 5020 is clearly the larger of the two speakers. Its body is 20mm wider, 20mm taller and 27mm deeper than Q Acoustics 5010.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Q Acoustics 5020 is approximately 530.3cm2 / 82.2inch2 and base area of the Q Acoustics 5010 is approximately 428.3cm2 / 66.4inch2. The Q Acoustics 5020 requires 24% more surface area than the Q Acoustics 5010 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Q Acoustics 5020 weighs 7.00kg / 15.4lbs and the Q Acoustics 5010 weighs 5.59kg / 12.3lbs. This makes the Q Acoustics 5020 25% heavier than the Q Acoustics 5010.
Here is a comparison of how Q Acoustics 5020 and Q Acoustics 5010's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Q Acoustics 5020?
Here are the items that are included inside the box of Q Acoustics 5020:
2x 5020 loudspeaker 1x Owners manual 2x Foam bung
What's in the Box of Q Acoustics 5010?
Here are the items that come with the Q Acoustics 5010:
2x 5010 loudspeaker 1x Owners manual 2x Foam bung
Max Input Power |
100 watts
vs
90 watts
|
Handle more power from your amplifier |
Sensitivity |
88 dB
vs
86 dB
|
Play louder with same amount of amplification power |
Woofer Size |
5 inches
vs
4.5 inches
|
Larger woofer |
Low Frequency Response |
53 Hz
vs
56 Hz
|
Generates deeper bass |
Height |
266mm
vs
286mm
|
Easier to fit in smaller spaces |
Base Surface Area |
428cm2 (161x266mm)
vs
530cm2 (181x293mm)
|
Takes less floor space |
Price per pair* |
749USD
vs
899USD
|
costs less (*prices may change depending on the seller, location and time) |
General |
Q Acoustics 5020 |
Q Acoustics 5010 |
Brand |
Q Acoustics |
Q Acoustics |
Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
Power Range |
25-100 watts |
15-90 watts |
Sensitivity |
87.9 dB |
86.3 dB |
Impedance |
6 ohms |
6 ohms |
Impedance |
3.3 ohms |
3.3 ohms |
Frequency Response |
53-30k Hz |
56-30k Hz |
Drivers |
|
|
Woofer Quantity |
1 |
1 |
Woofer Size |
5" |
4.5" |
Woofer Composition |
Continuous Curved Cone |
Continuous Curved Cone |
Woofer Surround Material |
Rubber |
Rubber |
Tweeter Size |
1" |
1" |
Tweeter Type |
Soft-dome |
Soft-dome |
Aimable Tweeter |
No |
No |
Midrange Driver |
No |
No |
Crossover Frequency |
2500 Hz |
2500 Hz |
Firing Direction |
rear |
rear |
Physical Specs |
|
|
Height |
286.0mm (11.3") |
266.0mm (10.5") |
Width |
181.0mm (7.1") |
161.0mm (6.3") |
Depth |
293.0mm (11.5") |
266.0mm (10.5") |
Weight |
7.00kg (15.4lbs) |
5.59kg (12.3lbs) |
Enclosure |
Bass Relfex |
Bass Relfex |
Finish |
MDF |
MDF |
Available Colors |
Holme Oak,Satin Black,Satin White,Santos Rosewood |
Holme Oak,Satin Black,Satin White,Santos Rosewood |
Mounting Bracket |
No |
No |
Grille |
Yes |
Yes |
Moisture Resistancy |
No |
No |
Connections |
|
|
Biamp Inputs |
No |
No |
Other |
|
|
Parts Warranty |
5 years |
5 years |
Labor Warranty |
5 years |
5 years |
