Q Acoustics 5010 is a 2-way Passive Bass Relfex Bookshelf speaker by Q Acoustics. It was released in 2023. It features a 1" Soft-dome Tweeter and 1 x 4.5" Continuous Curved Cone Woofer. The speaker has a frequency range of 56-30k Hz and a sensitivity of 86.3 dB. Q Acoustics 5010 has an MSRP of 749$ per pair.
Room Size Suitability
The size of the room where you plan to use the Q Acoustics 5010 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Average |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Q Acoustics 5010 Lifestyle
Q Acoustics's 5000 Series of Loudspeakers
5010 is a member of Q Acoustics's 5000 series of Passive speakers. The 5000 range is Q Acoustics' step-up line, using the brand's Continuous Curved Cone driver technology. Below you can see the main specs of these speakers.
See all 5 Q Acoustics 5000 models compared »
Q Acoustics 5000 Series Speakers
Q Acoustics 5000 Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the Q Acoustics 5010 Speaker
Q Acoustics 5010 has a Frequency response range of 56-30k Hz and Power Range of 15-90 watts. With a minimum frequency of 56 Hz, 5010 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how 5010's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Q Acoustics 5010?
Crossover frequency of the Q Acoustics 5010?
The crossover frequency of the 5010 is set to 2500 Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Impedance and Sensitivity
Q Acoustics 5010's nominal impedance level is
6 ohms but can go down to as low as
3.3 ohms, and has a sensitivity of
86.3 dB.
Sensitivity
Bookshelf Speakers
Nominal Impedance of the 6 Ohms makes the Q Acoustics 5010 a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
With a sensitivity level of only 86 dB, Q Acoustics 5010 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the Q Acoustics 5010 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
Minimum Impedance of the Q Acoustics 5010
Even though the nominal impedance of the 5010 is 6 ohms, the minimum impedance level of this speaker according to Q Acoustics is 3.3 ohms Q Acoustics 5010 so while choosing an amplifier, you should ideally check if the unit you are considering can provide this impedance level.
What amplifier does the Q Acoustics 5010 need?
At normal listening levels in a medium room, about
25–90 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $750, or every amplifier we cover.
Input Type
5010 features Binding post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
Q Acoustics 5010 Back View
Q Acoustics 5010's Binding post terminals
Q Acoustics 5010 External Dimensions and Weight
Q Acoustics 5010 has external dimensions of (Height x Width x Depth) 10-7/16inch x 6-5/16inch x 10-7/16inch (266.0 x 161.0 x 266.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Q Acoustics 5010 is approximately 428.3cm2 / 66.4inch2.

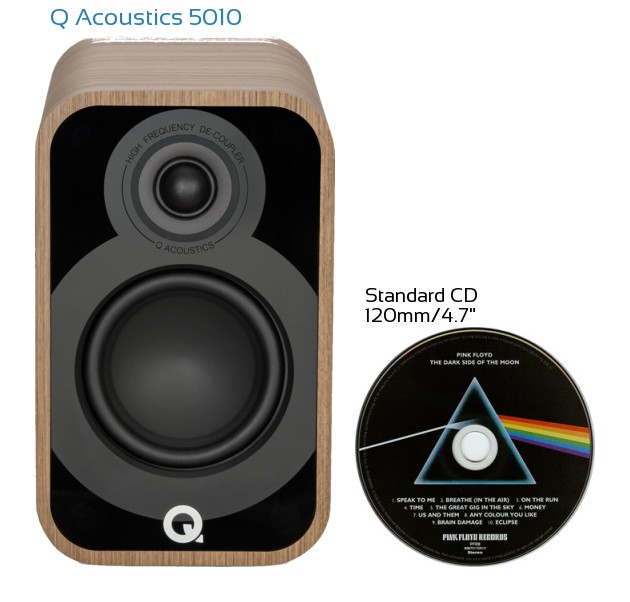

To get a better perspective on the real life size of Q Acoustics 5010, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Q Acoustics 5010 Speaker Size Compared to a Compact Disc

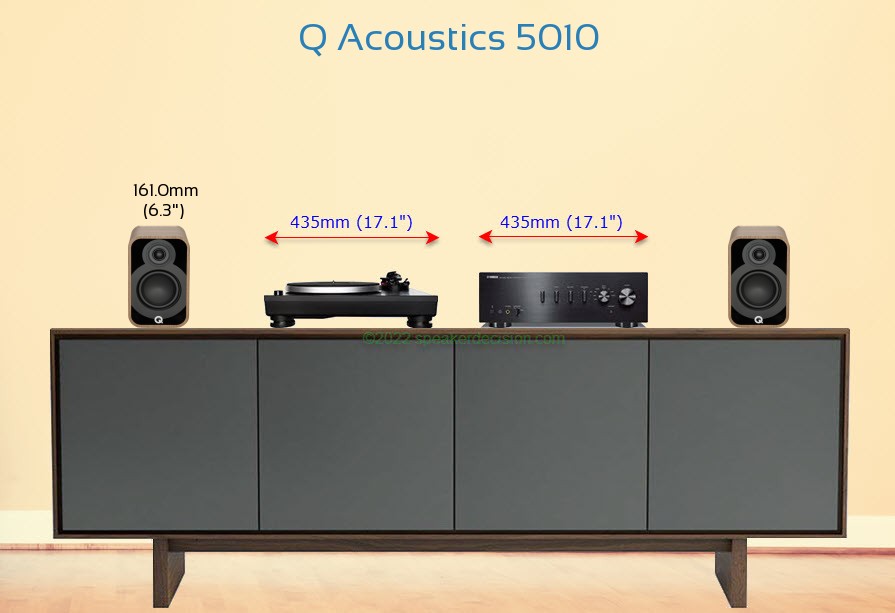

Here we place the Q Acoustics 5010 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.
Q Acoustics 5010 Speaker next to an amplifier and turntable
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Q Acoustics 5010 weighs 5.59kg / 12.3lbs per piece. Here is a comparison of how 5010's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $750
Q Acoustics 5010 on a Stand
Cabinet type and Materials
Q Acoustics 5010 has a
Bass Relfex type cabinet and a MDF finish.
Port Position
Q Acoustics 5010 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe. 5010 comes with
2 x Foam bung so if you don't have any choice but place the speakers too close to the walls or other surfaces, you can use these plugs in order to avoid boomy or too much bass.
Available colors
Q Acoustics 5010 is available in Holme Oak, Satin Black, Satin White and Santos Rosewood.
Wall Mounting
5010 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the Q Acoustics 5010 come with a Grille?
5010 comes with magnetic grilles in Black color choices. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible. Since the included grille of the 5010 is magnetic type, it is very easy to put it on and off.
Q Acoustics 5010 with Grille
What's in the Box of Q Acoustics 5010?
Here are the items that are included inside the box of 5010:
- 2x 5010 loudspeaker
- 1x Owners manual
- 2x Foam bung
Recommended Accessories
Here is a list of accessories that we think you may need for the Q Acoustics 5010.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
Official Product Page
Official manufacturer's product page for the Q Acoustics 5010 speaker can be found below:
Official Product Page for Q Acoustics 5010
Warranty
5 years of parts warranty and 5 years of labor warranty is generally provided by the manufacturer.
