In this review, we will be comparing 5010 and 3020i, two Passive Bookshelf speakers by Q Acoustics.
Let's have a brief look at the main features
of Q Acoustics 5010 and Q Acoustics 3020i first before getting into our more
detailed comparison.
| Key Specs | Q Acoustics 5010 | Q Acoustics 3020i |
|---|
| Brand | Q Acoustics
United Kingdom · founded 2006 | Q Acoustics
United Kingdom · founded 2006 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Soft-dome | 0.9" decoupled |
|---|
| Woofer | 4.5" Continuous Curved Cone | 5" Coated paper |
|---|
| Frequency response | 56-30k Hz | 64-30k Hz |
|---|
| Sensitivity | 86.3 dB | 88 dB |
|---|
| Impedance | 6 ohms | 6 ohms |
|---|
| Power range | 15-90 watts | 25-75 watts |
|---|
| Weight | 5.59kg / 12.3lbs | 4.80kg / 10.6lbs |
|---|
| Dimensions (H x W x D) | 10-7/16" x 6-5/16" x 10-7/16"
266.0 x 161.0 x 266.0mm | 10.9" x 6.6" x 11.1"
278.0 x 170.0 x 282.0mm |
|---|
What size room are the Q Acoustics 5010 and Q Acoustics 3020i speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Q Acoustics 5010 |
Q Acoustics 3020i |
| Near-field |
Average |
Good |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
Bad |
No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both 5010 and 3020i are 2-way speakers.
Q Acoustics 5010Q Acoustics 3020i
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Q Acoustics 5010 |
Q Acoustics 3020i |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
0.9-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 4.5-inch
|
1 x 5-inch
|
5010 features a 1" Soft-dome Tweeter and 1 x 4.5" Continuous Curved Cone Woofer with a Crossover frequency at 2500 Hz. On the other hand, the 3020i features a 0.9" decoupled Tweeter and 1 x 5" Coated paper Woofer with a Crossover frequency at 2400Hz.
Frequency Response
5010 has a frequency range of 56-30k Hz whereas 3020i has a frequency range of 64-30k Hz. With a minimum frequency of 56Hz, the 5010 can go significantly deeper on the low side and provide stronger bass compared to the 3020i's min frequency of 64Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
5010 and 3020i have the same Impedance of 6 ohms but where they differ is the sensitivity levels. 5010 sensitivity is rated at 86.3 dB and the 3020i's is at 88 dB. This 2 dB difference makes the Q Acoustics 3020i a more sensitive speaker compared to Q Acoustics 5010, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
5010 can handle a max power of 90 watts RMS, whereas 3020i has a max power handling value of 75 watts RMS, 15 watts less than the 5010.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
5010 features Binding post type posts and 3020i has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Q Acoustics 5010's Binding post terminals
Cabinet Type and Port Position
Both 5010 and 3020i have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Q Acoustics 5010's and Q Acoustics 3020i's external dimensions. Q Acoustics 5010 has external dimensions of 266.0 x 161.0 x 266.0mm (10-7/16inch x 6-5/16inch x 10-7/16inch) whereas Q Acoustics 3020i has external dimensions of 278.0 x 170.0 x 282.0mm (10.9 x 6.6 x 11.1inch).
Q Acoustics 3020i is clearly the larger of the two speakers. Its body is 9mm wider, 12mm taller and 16mm deeper than Q Acoustics 5010.

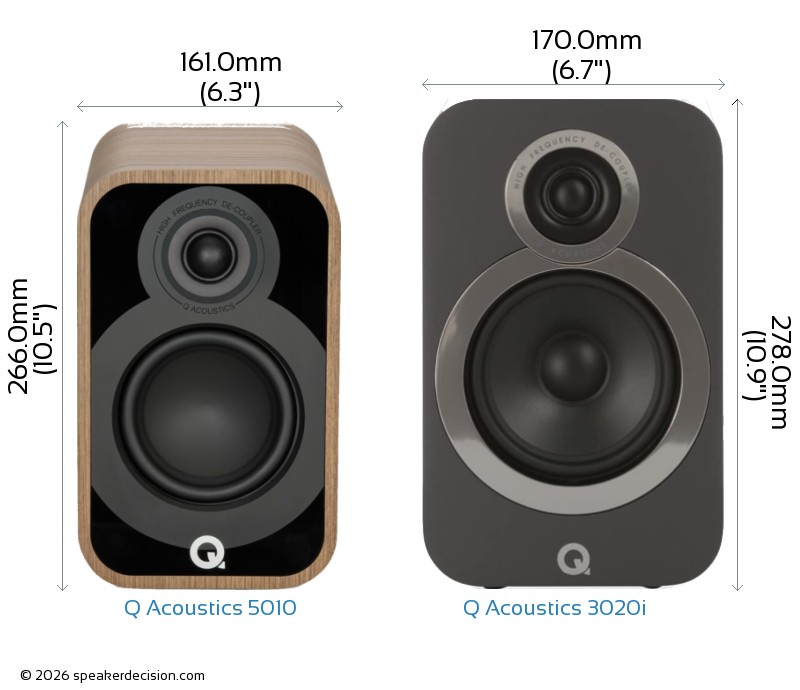

Below you can see the front view size comparison of Q Acoustics 5010 and Q Acoustics 3020i in scale.
Comparison image of Q Acoustics 5010 and Q Acoustics 3020i Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Q Acoustics 5010 is approximately 428.3cm2 / 66.4inch2 and base area of the Q Acoustics 3020i is approximately 479.4cm2 / 74.3inch2. The 5010 requires 11% less surface area than the 3020i which gives it a small advantage on placement in tight spaces.
Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Q Acoustics 5010 and Q Acoustics 3020i on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Q Acoustics 5010 weighs 5.59kg / 12.3lbs and the Q Acoustics 3020i weighs 4.80kg / 10.6lbs. This makes the 5010 16% heavier than the 3020i.
Here is a comparison of how 5010 and 3020i's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Q Acoustics 5010?
Here are the items that are included inside the box of 5010:
- 2x 5010 loudspeaker
- 1x Owners manual
- 2x Foam bung
What's in the Box of Q Acoustics 3020i?
Here are the items that come with the 3020i:
- 2 x 3020i bookshelf speakers
- 2 x Foam Bungs
- 2 x Speaker Grilles
- 1 x User Manual
- 1 x Handling Gloves
- 8 x Rubber Speaker Grips
 Max Input Power |
90 watts
vs
75 watts
|
Handle more power from your amplifier |
 Low Frequency Response |
56 Hz
vs
64 Hz
|
Generates deeper bass |
 Height |
266mm
vs
278mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
428cm2
vs
479cm2
|
Takes less floor space |
 Sensitivity |
88 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Minimum Impedance |
4 ohms
vs
3.3 ohms
|
Very low impedance levels puts more pressure on amplifier |
|
Woofer Size |
5 inches
vs
4.5 inches
|
Larger woofer |
 Price per pair* |
399USD
vs
749USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Q Acoustics 5010 |
Q Acoustics 3020i |
| Brand |
Q Acoustics |
Q Acoustics |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
15-90 watts |
25-75 watts |
| Sensitivity |
86.3 dB |
88 dB |
| Impedance |
6 ohms |
6 ohms |
| Impedance |
3.3 ohms |
4 ohms |
| Frequency Response |
56-30k Hz |
64-30k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
4.5" |
5" |
| Woofer Composition |
Continuous Curved Cone |
Coated paper |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
0.9" |
| Tweeter Type |
Soft-dome |
decoupled |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
2500 Hz |
2400Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
266.0mm (10.5") |
278.0mm (10.9") |
| Width |
161.0mm (6.3") |
170.0mm (6.7") |
| Depth |
266.0mm (10.5") |
282.0mm (11.1") |
| Weight |
5.59kg (12.3lbs) |
4.80kg (10.6lbs) |
| Enclosure |
Bass Relfex |
Bass Reflex |
| Finish |
MDF |
n/a |
| Available Colors |
Holme Oak,Satin Black,Satin White,Santos Rosewood |
Walnut, Black, White, Grey |
| Mounting Bracket |
No |
No |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 years |
4 Years |
| Labor Warranty |
5 years |
4 Years |
These sit in different price classes - Q Acoustics 5010 costs roughly 1.9x what Q Acoustics 3020i does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | A | Q Acoustics 5010 digs deeper - 56Hz against 64Hz. A subwoofer would even that out. |
| Amplifier needs | B | Q Acoustics 3020i is more sensitive (88dB vs 86dB), so it goes louder on the same amplifier. |
| Headroom | evenly matched | Similar power handling (90W vs 75W). |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Price | B | Q Acoustics 3020i is cheaper - $399 against $749, about 47% less; arguably a different class. |
A Q Acoustics 5010 B Q Acoustics 3020i
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 64Hz anyway, which makes the cheaper Q Acoustics 3020i much easier to justify. Match it to your room: we rate Q Acoustics 3020i the better fit for near-field listening; elsewhere the two are rated the same.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
