In this review, we will be comparing Imagine X2T and R500, two Passive Floor-standing speakers from PSB and Polk Audio.
Let's have a brief look at the main features
of PSB Imagine X2T and Polk R500 first before getting into our more
detailed comparison.
| Key Specs | PSB Imagine X2T | Polk R500 |
|---|
| Brand | PSB
Canada · founded 1972 | Polk Audio
United States · founded 1972 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1" Dome | 1" Pinnacle Ring Radiator |
|---|
| Midrange | 5.25" | — |
|---|
| Woofer | 2 x 6.2" Clay/Ceramic/Poly | 2 x 5.25" Polypropylene Turbine Cone |
|---|
| Frequency response | 30-23k Hz | 49-38k Hz |
|---|
| Sensitivity | 90 dB | 87 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 20-200 watts | 25-200 watts |
|---|
| Weight | 23.60kg / 51.9lbs | 17.70kg / 38.9lbs |
|---|
| Dimensions (H x W x D) | 40-1/8" x 9" x 16-3/4"
1020.0 x 229.0 x 426.0mm | 41.1" x 10.1" x 13.7"
1044.5 x 255.4 x 348.8mm |
|---|
What size room are the PSB Imagine X2T and Polk R500 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
PSB Imagine X2T |
Polk R500 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Imagine X2T is a 3-way design whereas the R500 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
PSB Imagine X2TPolk R500
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
PSB Imagine X2T |
Polk R500 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
2 x 6.2-inch
|
2 x 5.25-inch
|
Imagine X2T features a 1" titanium with neodymium magnets Dome Tweeter, a 5.25" Midrange and 2 x 6.2" Clay/Ceramic/Poly Woofer with a Crossover frequency at 500Hz and 2200Hz. On the other hand, the R500 features a 1" Pinnacle Ring Radiator Tweeter and 2 x 5.25" Polypropylene Turbine Cone Woofer with a Crossover frequency at 2500Hz.
Frequency Response
Imagine X2T has a frequency range of 30-23k Hz whereas R500 has a frequency range of 49-38k Hz. With a minimum frequency of 30Hz, the Imagine X2T can go significantly deeper on the low side and provide stronger bass compared to the R500's min frequency of 49Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Imagine X2T and R500 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Imagine X2T sensitivity is rated at 90 dB and the R500's is at 87 dB. This 3 dB difference makes the PSB Imagine X2T a more sensitive speaker compared to Polk R500, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 200 watts RMS, though Imagine X2T is rated 20-200 watts and R500 25-200 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Imagine X2T features 5-Way post posts which make bi-amping or bi-wiring possible. R500 has a Post which doesn't feature bi-amping/bi-wiring.
PSB Imagine X2T's 5-Way post terminals allows Bi-amping or bi-wiring
Polk R500's Post terminals
Cabinet Type and Port Position
Imagine X2T has a front firing port whereas R500 has a rear firing ports. PSB Imagine X2T's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Polk R500 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB Imagine X2T's and Polk R500's external dimensions. PSB Imagine X2T has external dimensions of 1020.0 x 229.0 x 426.0mm (40-1/8 x 9 x 16-3/4inch) whereas Polk R500 has external dimensions of 1044.5 x 255.4 x 348.8mm (41.1 x 10.1 x 13.7inch).
PSB Imagine X2T is 26.4mm narrower and 24.5mm shorter than Polk R500 but it is also 77.2mm deeper.

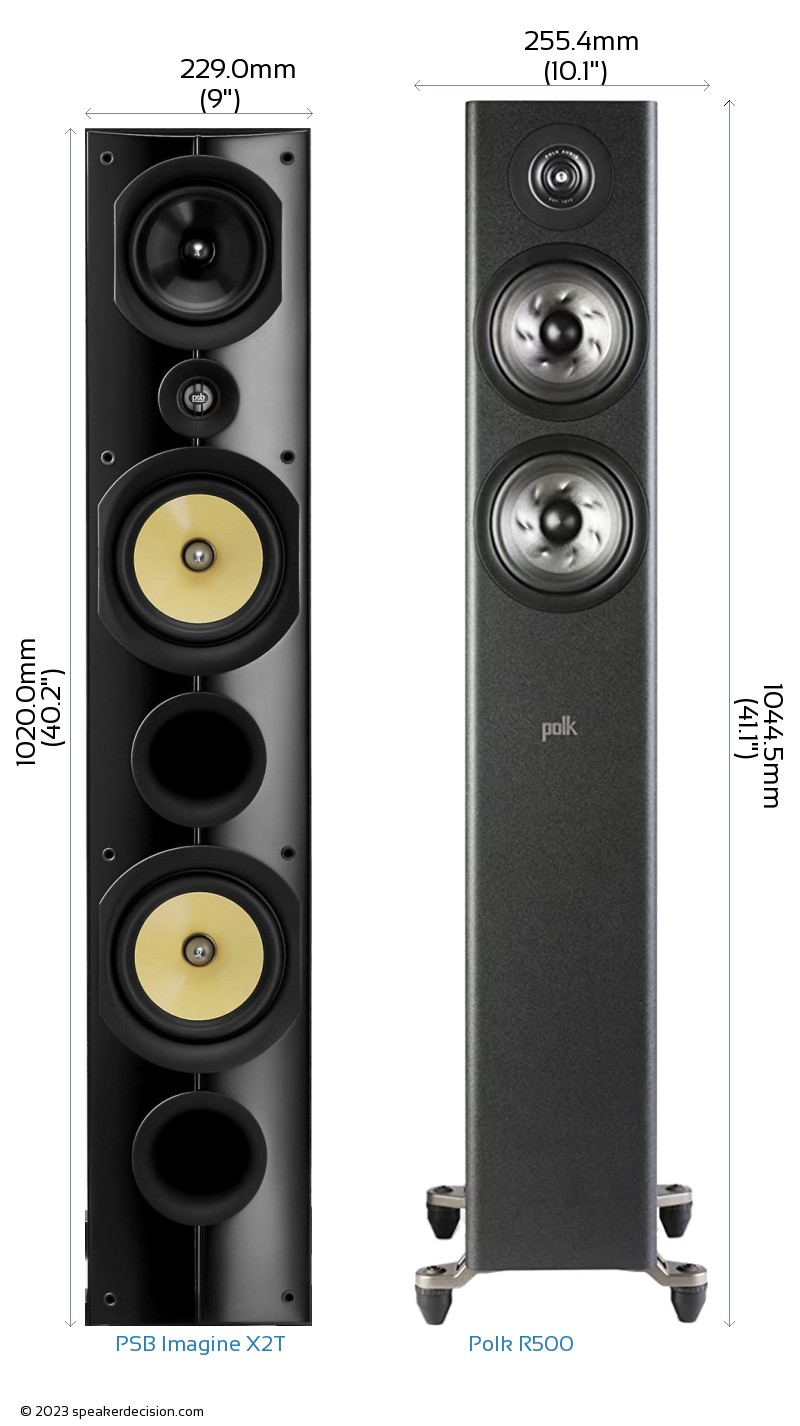

Below you can see the front view size comparison of PSB Imagine X2T and Polk R500 in scale.
Comparison image of PSB Imagine X2T and Polk R500 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB Imagine X2T is approximately 975.5cm2 / 151.2inch2 and base area of the Polk R500 is approximately 890.8cm2 / 138.1inch2. The Imagine X2T requires 10% more surface area than the R500 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The PSB Imagine X2T weighs 23.60kg / 51.9lbs and the Polk R500 weighs 17.70kg / 38.9lbs. This makes the Imagine X2T 33% heavier than the R500.
Here is a comparison of how Imagine X2T and R500's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of PSB Imagine X2T?
Here are the items that are included inside the box of Imagine X2T:
- Floor-standing speaker
- Grille
- 4 Rubber feet
- 4 Spiked Feet
- Wrench
- Quick Start Guide
- Warranty Card
What's in the Box of Polk R500?
Here are the items that come with the R500:
- Floorstanding loudspeaker
- 4 Outrigger feet (pre-installed)
- 4 Rubber feet (pre-installed)
- 4 Spike feet (pre-installed)
- Grille
- Hex-key
- Owner's Manual
- Online Registration
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
90 dB
vs
87 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.2 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
30 Hz
vs
49 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
 Height |
1020mm
vs
1044mm
|
Easier to fit in smaller spaces |
 High Frequency Response |
36k Hz
vs
23k Hz
|
Generates higher frequency |
 Base Surface Area |
890cm2
vs
975cm2
|
Takes less floor space |
 Price per pair* |
1298USD
vs
1500USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
PSB Imagine X2T |
Polk Audio Reserve R500 |
| Brand |
PSB |
Polk Audio |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
20-200 watts |
25-200 watts |
| Sensitivity |
90 dB |
87 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
n/a |
3.9 ohms |
| Frequency Response |
30-23k Hz |
49-38k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.2" |
5.25" |
| Woofer Composition |
Clay/Ceramic/Poly |
Polypropylene Turbine Cone |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
Pinnacle Ring Radiator |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
No |
| Crossover Frequency |
500Hz and 2200Hz |
2500Hz |
| Firing Direction |
front |
rear |
Physical Specs |
|
|
| Height |
1020.0mm (40.2") |
1044.5mm (41.1") |
| Width |
229.0mm (9") |
255.4mm (10.1") |
| Depth |
426.0mm (16.8") |
348.8mm (13.7") |
| Weight |
23.60kg (51.9lbs) |
17.70kg (38.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain |
MDF/Vinyl |
| Available Colors |
Black |
Black, Walnut, White |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
A generation apart: Polk R500 is the newer design, against a 2013 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | A | PSB Imagine X2T digs deeper - 30Hz against 49Hz. |
| Amplifier needs | A | PSB Imagine X2T is more sensitive (90dB vs 87dB), so it goes louder on the same amplifier. |
| Headroom | evenly matched | Similar power handling (200W vs 200W). |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | PSB Imagine X2T: bi-amping. Polk R500 sits in a wider range (10 models), so a matched surround system is easier later. |
| Price | B | Polk R500 is cheaper - $1,298 against $1,500, about 13% less. |
A PSB Imagine X2T B Polk R500
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
The usual trade-off: PSB Imagine X2T measures better, Polk R500 costs about about 16% more% less. Whether that gap is worth the money is the call only you can make - and in a normal room it is often smaller than the numbers suggest. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 49Hz anyway, which makes the cheaper Polk R500 much easier to justify. If your amplifier is modest, vintage or valve-based, PSB Imagine X2T is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
