In this review, we will be comparing Installer Series IW5-LCR and Studio 6 88LCR, two Passive In-wall speakers from MartinLogan and JBL.
Let's have a brief look at the main features
of MartinLogan Installer Series IW5-LCR and JBL Studio 6 88LCR first before getting into our more
detailed comparison.
| Key Specs | MartinLogan Installer Series IW5-LCR | JBL Studio 6 88LCR |
|---|
| Brand | MartinLogan
United States · founded 1982 | JBL
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 0.75" Hard-Dome | 1" Horn-Loaded |
|---|
| Woofer | 2 x 5.5" Mineral-filled poly | 2 x 8" PolyPlas |
|---|
| Frequency response | 60-20kHz | 43-20kHz |
|---|
| Sensitivity | 89 dB | 96 dB |
|---|
| Impedance | 8 ohms | 6 ohms |
|---|
| Power range | 15-70 watts | 10-175 watts |
|---|
| Weight | 2.68kg / 5.9lbs | — |
|---|
| Dimensions (H x W x D) | 8.2500" x 11.6250" x 3.0000"
210.0 x 296.0 x 77.0mm | 20.4375" x 8.7500" x 3.7500"
520.0 x 223.0 x 96.0mm |
|---|
What size room are the MartinLogan Installer Series IW5-LCR and JBL Studio 6 88LCR speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
MartinLogan Installer Series IW5-LCR |
JBL Studio 6 88LCR |
| Near-field |
Good |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
No way |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Installer Series IW5-LCR and Studio 6 88LCR are 2-way speakers.
MartinLogan Installer Series IW5-LCRJBL Studio 6 88LCR
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
MartinLogan Installer Series IW5-LCR |
JBL Studio 6 88LCR |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
0.75-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.5-inch
|
2 x 8-inch
|
Installer Series IW5-LCR features a 0.75" Hard-Dome Tweeter and 2 x 5.5" Mineral-filled poly Woofer. On the other hand, the Studio 6 88LCR features a 1" Horn-Loaded Tweeter and 2 x 8" PolyPlas Woofer.
Frequency Response
Installer Series IW5-LCR has a frequency range of 60-20kHz whereas Studio 6 88LCR has a frequency range of 43-20kHz. With a minimum frequency of 43Hz, the Studio 6 88LCR can go significantly deeper on the low side and provide stronger bass compared to the Installer Series IW5-LCR's min frequency of 60Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Installer Series IW5-LCR is a 8 ohms speaker compared to the Studio 6 88LCR which has a nominal impedance of 6 ohms.
These two speakers also have different sensitivity levels. Installer Series IW5-LCR sensitivity is rated at 89 dB and the Studio 6 88LCR's is rated at 96 dB. This 7 dB difference makes the JBL Studio 6 88LCR a more sensitive speaker compared to MartinLogan Installer Series IW5-LCR, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Studio 6 88LCR can handle a max power of 175 watts RMS, whereas Installer Series IW5-LCR has a max power handling value of 70 watts RMS, 105 watts less than the Studio 6 88LCR.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
MartinLogan Installer Series IW5-LCR
Input Type and Bi-Amping / Bi-Wiring
Installer Series IW5-LCR features Spring posts type posts and Studio 6 88LCR has a Spring posts type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Installer Series IW5-LCR's and JBL Studio 6 88LCR's external dimensions. MartinLogan Installer Series IW5-LCR has external dimensions of 210.0 x 296.0 x 77.0mm (8.2500-inch x 11.6250-inch x 3.0000-inch) whereas JBL Studio 6 88LCR has external dimensions of 520.0 x 223.0 x 96.0mm (20.4375-inch x 8.7500-inch x 3.7500-inch).
MartinLogan Installer Series IW5-LCR is 310mm shorter and 19mm less deeper than JBL Studio 6 88LCR but it is also 73mm wider.

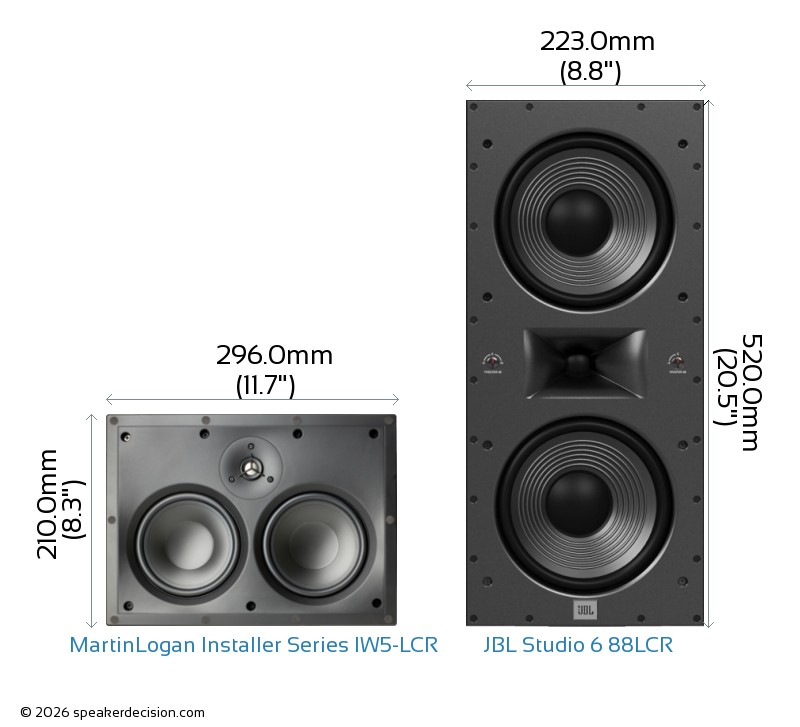

Below you can see the front view size comparison of MartinLogan Installer Series IW5-LCR and JBL Studio 6 88LCR in scale.
Comparison image of MartinLogan Installer Series IW5-LCR and JBL Studio 6 88LCR Size and External Dimensions
What's in the Box of MartinLogan Installer Series IW5-LCR?
Here are the items that are included inside the box of Installer Series IW5-LCR:
- In-wall loudspeaker
- Grille
- User-feets Manual
- Cutout Template
What's in the Box of JBL Studio 6 88LCR?
Here are the items that come with the Studio 6 88LCR:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
