In this review, we will be comparing RP-5000F II and Imagine X2T, two Passive Floor-standing speakers from Klipsch and PSB.
Let's have a brief look at the main features
of Klipsch RP-5000F II and PSB Imagine X2T first before getting into our more
detailed comparison.
| Key Specs | Klipsch RP-5000F II | PSB Imagine X2T |
|---|
| Brand | Klipsch
United States · founded 1946 | PSB
Canada · founded 1972 |
|---|
| Design | 2-way | 3-way |
|---|
| Tweeter | 1" Tractrix Horn | 1" Dome |
|---|
| Midrange | — | 5.25" |
|---|
| Woofer | 2 x 5.25" Cerametallic cone | 2 x 6.2" Clay/Ceramic/Poly |
|---|
| Frequency response | 35-25k Hz | 30-23k Hz |
|---|
| Sensitivity | 95 dB | 90 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | up to 100 watts | 20-200 watts |
|---|
| Weight | 17.50kg / 38.5lbs | 23.60kg / 51.9lbs |
|---|
| Dimensions (H x W x D) | 36-1/8" x 8-3/16" x 14-5/16"
918.0 x 208.0 x 364.0mm | 40-1/8" x 9" x 16-3/4"
1020.0 x 229.0 x 426.0mm |
|---|
What size room are the Klipsch RP-5000F II and PSB Imagine X2T speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch RP-5000F II |
PSB Imagine X2T |
| Near-field |
Poor |
Bad |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Poor |
Good |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that RP-5000F II is a 2-way design whereas the Imagine X2T is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Klipsch RP-5000F IIPSB Imagine X2T
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Klipsch RP-5000F II |
PSB Imagine X2T |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
1 x 5.25-inch |
|
Woofer
|
2 x 5.25-inch
|
2 x 6.2-inch
|
RP-5000F II features a 1" titanium Tractrix Horn Tweeter and 2 x 5.25" Cerametallic cone Woofer with a Crossover frequency at 1900 Hz. On the other hand, the Imagine X2T features a 1" titanium with neodymium magnets Dome Tweeter, a 5.25" Midrange and 2 x 6.2" Clay/Ceramic/Poly Woofer with a Crossover frequency at 500Hz and 2200Hz.
Frequency Response
RP-5000F II has a frequency range of 35-25k Hz whereas Imagine X2T has a frequency range of 30-23k Hz. With a minimum frequency of 30Hz, the Imagine X2T can go significantly deeper on the low side and provide stronger bass compared to the RP-5000F II's min frequency of 35Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
RP-5000F II and Imagine X2T have the same Impedance of 8 ohms but where they differ is the sensitivity levels. RP-5000F II sensitivity is rated at 95 dB and the Imagine X2T's is at 90 dB. This 5 dB difference makes the Klipsch RP-5000F II a more sensitive speaker compared to PSB Imagine X2T, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Imagine X2T can handle a max power of 200 watts RMS, whereas RP-5000F II has a max power handling value of 100 watts RMS, 100 watts less than the Imagine X2T.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both RP-5000F II and Imagine X2T features dual binding post speaker terminals for bi-amping or bi-wiring.
Klipsch RP-5000F II's Binding post terminals allows Bi-amping or bi-wiring
PSB Imagine X2T's 5-Way post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
RP-5000F II has a rear firing port whereas Imagine X2T has a front firing ports. PSB Imagine X2T's front-firing port gives more flexibility in placement in regards to proximity to walls compared to Klipsch RP-5000F II with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch RP-5000F II's and PSB Imagine X2T's external dimensions. Klipsch RP-5000F II has external dimensions of 918.0 x 208.0 x 364.0mm (36-1/8 x 8-3/16 x 14-5/16inch) whereas PSB Imagine X2T has external dimensions of 1020.0 x 229.0 x 426.0mm (40-1/8 x 9 x 16-3/4inch).
PSB Imagine X2T is clearly the larger of the two speakers. Its body is 21mm wider, 102mm taller and 62mm deeper than Klipsch RP-5000F II.

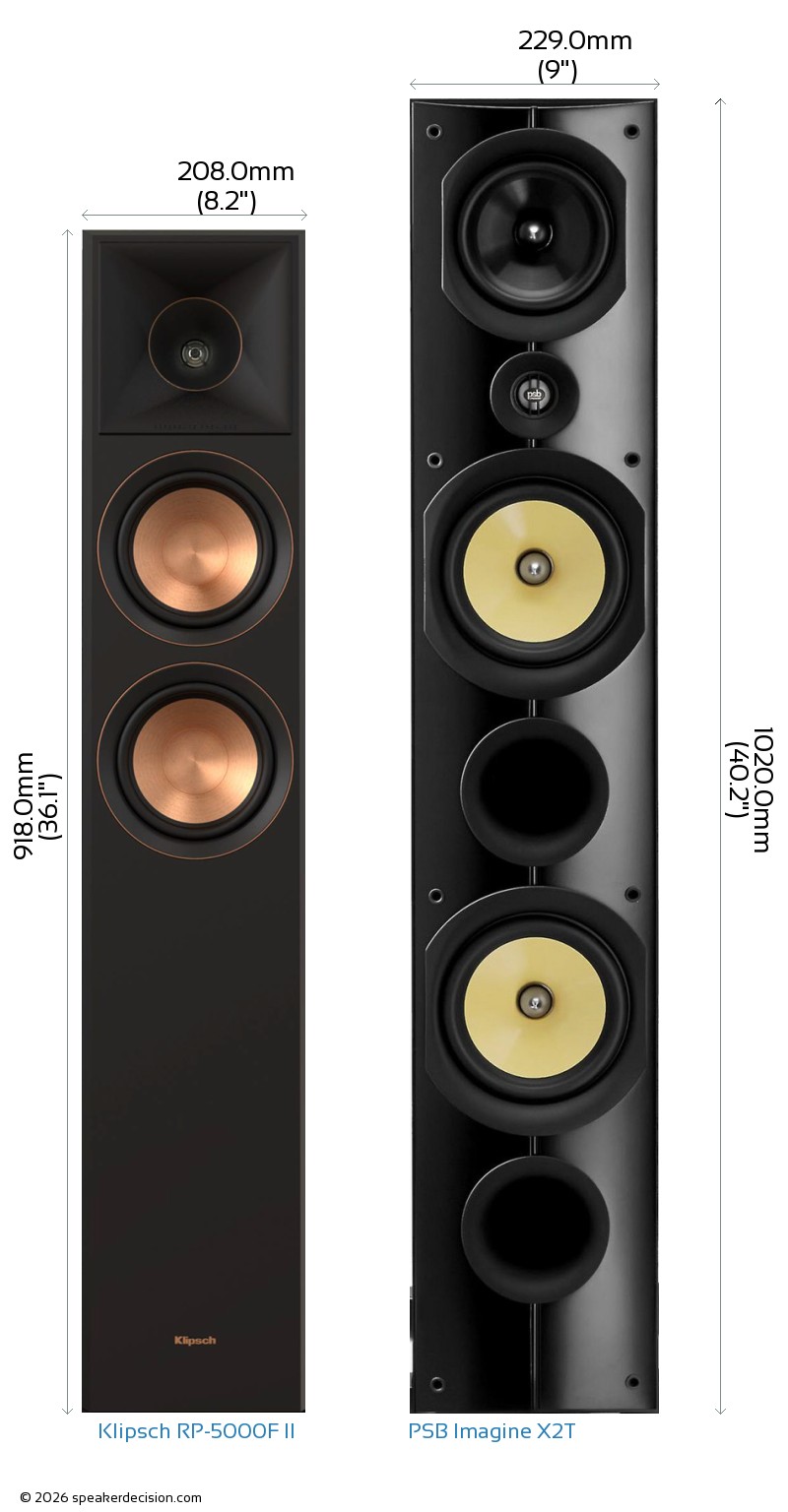

Below you can see the front view size comparison of Klipsch RP-5000F II and PSB Imagine X2T in scale.
Comparison image of Klipsch RP-5000F II and PSB Imagine X2T Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Klipsch RP-5000F II is approximately 757.1cm2 / 117.4inch2 and base area of the PSB Imagine X2T is approximately 975.5cm2 / 151.2inch2. The RP-5000F II requires 22% less surface area than the Imagine X2T which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch RP-5000F II weighs 17.50kg / 38.5lbs and the PSB Imagine X2T weighs 23.60kg / 51.9lbs. This makes the Imagine X2T 35% heavier than the RP-5000F II.
Here is a comparison of how RP-5000F II and Imagine X2T's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Klipsch RP-5000F II?
Here are the items that are included inside the box of RP-5000F II:
- Floorstanding loudspeaker
- Stabilizer feet (pre-installed)
- Grille
- 2 Terminal jumpers (pre-installed)
- Rubber cap (pre-installed)
- User Manual
- Important Safety Instructions
- Warranty Information
What's in the Box of PSB Imagine X2T?
Here are the items that come with the Imagine X2T:
- Floor-standing speaker
- Grille
- 4 Rubber feet
- 4 Spiked Feet
- Wrench
- Quick Start Guide
- Warranty Card
 Sensitivity |
95 dB
vs
90 dB
|
Play louder with same amount of amplification power |
 High Frequency Response |
25k Hz
vs
23k Hz
|
Generates higher frequency |
 Dolby Atmos Drivers |
Optional
vs
No
|
Dolby Atmos Compatibility |
 Height |
918mm
vs
1020mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
757cm2
vs
975cm2
|
Takes less floor space |
 Price per pair* |
1198USD
vs
1500USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
200 watts
vs
100 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Woofer Size |
6.2 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
30 Hz
vs
35 Hz
|
Generates deeper bass |
 Port Position |
Front
vs
Rear
|
Gives more flexibility placing close to walls |
| General |
Klipsch Reference Premiere RP-5000F II |
PSB Imagine X2T |
| Brand |
Klipsch |
PSB |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 100 watts |
20-200 watts |
| Sensitivity |
95 dB |
90 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
35-25k Hz |
30-23k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5.25" |
6.2" |
| Woofer Composition |
Cerametallic cone |
Clay/Ceramic/Poly |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Tractrix Horn |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
5.25" |
| Crossover Frequency |
1900 Hz |
500Hz and 2200Hz |
| Firing Direction |
rear |
front |
Physical Specs |
|
|
| Height |
918.0mm (36.1") |
1020.0mm (40.2") |
| Width |
208.0mm (8.2") |
229.0mm (9") |
| Depth |
364.0mm (14.3") |
426.0mm (16.8") |
| Weight |
17.50kg (38.5lbs) |
23.60kg (51.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-grain vinyl |
MDF/Wood-grain |
| Available Colors |
Walnut, Black |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
A generation apart: Klipsch RP-5000F II is the newer design, against a 2013 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | B | PSB Imagine X2T digs deeper - 30Hz against 35Hz. A subwoofer would even that out. |
| Amplifier needs | A | Klipsch RP-5000F II is more sensitive (95dB vs 90dB), so it goes louder on the same amplifier. |
| Headroom | B | PSB Imagine X2T takes more power (200W vs 100W) - more in hand in a big room. |
| Size | depends | Klipsch RP-5000F II is easier to place; PSB Imagine X2T is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | A | Klipsch RP-5000F II: bi-amping and Atmos drivers; PSB Imagine X2T: bi-amping. Klipsch RP-5000F II sits in a wider range (10 models), so a matched surround system is easier later. |
| Price | A | Klipsch RP-5000F II is cheaper - $1,198 against $1,500, about 20% less. |
A Klipsch RP-5000F II B PSB Imagine X2T
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Neither runs away with it - they trade advantages. Let the "depends" rows and your own room settle it. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 35Hz anyway, which makes the cheaper Klipsch RP-5000F II much easier to justify. Match it to your room: we rate Klipsch RP-5000F II the better fit for a small room, and PSB Imagine X2T for a large room.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
