In this review, we will be comparing R-2650-W II and R-5502-W II, two Passive In-wall speakers by Klipsch.
Let's have a brief look at the main features
of Klipsch R-2650-W II and Klipsch R-5502-W II first before getting into our more
detailed comparison.
| Key Specs | Klipsch R-2650-W II | Klipsch R-5502-W II |
|---|
| Brand | Klipsch
United States · founded 1946 | Klipsch
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Soft-Dome | 1" Horn-loaded |
|---|
| Woofer | 6.5" Polypropylene | 2 x 5.25" Cerametallic |
|---|
| Frequency response | 65-20kHz | 46-20kHz |
|---|
| Sensitivity | 91 dB | 92 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | up to 50 watts | up to 75 watts |
|---|
| Weight | 3.27kg / 7.2lbs | 2.95kg / 6.5lbs |
|---|
| Dimensions (H x W x D) | 13.0625" x 7.9375" x 3.6875"
332.0 x 202.0 x 94.0mm | 16.3750" x 6.5000" x 3.3750"
416.0 x 166.0 x 86.0mm |
|---|
R-2650-W II and R-5502-W II are members of Klipsch's Reference II series of speakers. Below you can find the loudspeakers from this series.
Klipsch Reference II Series
History
What size room are the Klipsch R-2650-W II and Klipsch R-5502-W II speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Klipsch R-2650-W II |
Klipsch R-5502-W II |
| Near-field |
Good |
Good |
| Small Room |
Good |
Good |
| Mid-size Room |
Average |
Average |
| Large Room |
Poor |
Poor |
| Very Large Room |
No way |
No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both R-2650-W II and R-5502-W II are 2-way speakers.
Klipsch R-2650-W IIKlipsch R-5502-W II
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Klipsch R-2650-W II |
Klipsch R-5502-W II |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
2 x 5.25-inch
|
R-2650-W II features a 1" Soft-Dome Tweeter and 1 x 6.5" Polypropylene Woofer with a Crossover frequency at 1800 Hz. On the other hand, the R-5502-W II features a 1" Horn-loaded Tweeter and 2 x 5.25" Cerametallic Woofer with a Crossover frequency at 2200 Hz.
Frequency Response
R-2650-W II has a frequency range of 65-20kHz whereas R-5502-W II has a frequency range of 46-20kHz. With a minimum frequency of 46Hz, the R-5502-W II can go significantly deeper on the low side and provide stronger bass compared to the R-2650-W II's min frequency of 65Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
R-2650-W II and R-5502-W II have the same Impedance of 8 ohms but where they differ is the sensitivity levels. R-2650-W II sensitivity is rated at 91 dB and the R-5502-W II's is at 92 dB. This 1 dB difference makes the Klipsch R-5502-W II a more sensitive speaker compared to Klipsch R-2650-W II, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
R-5502-W II can handle a max power of 75 watts RMS, whereas R-2650-W II has a max power handling value of 50 watts RMS, 25 watts less than the R-5502-W II.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
R-2650-W II features Spring post type posts and R-5502-W II has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Klipsch R-2650-W II's and Klipsch R-5502-W II's external dimensions. Klipsch R-2650-W II has external dimensions of 332.0 x 202.0 x 94.0mm (13.0625-inch x 7.9375-inch x 3.6875-inch) whereas Klipsch R-5502-W II has external dimensions of 416.0 x 166.0 x 86.0mm (16.3750-inch x 6.5000-inch x 3.3750-inch).
Klipsch R-5502-W II is 36mm narrower and 8mm less deeper than Klipsch R-2650-W II but it is also 84mm taller.

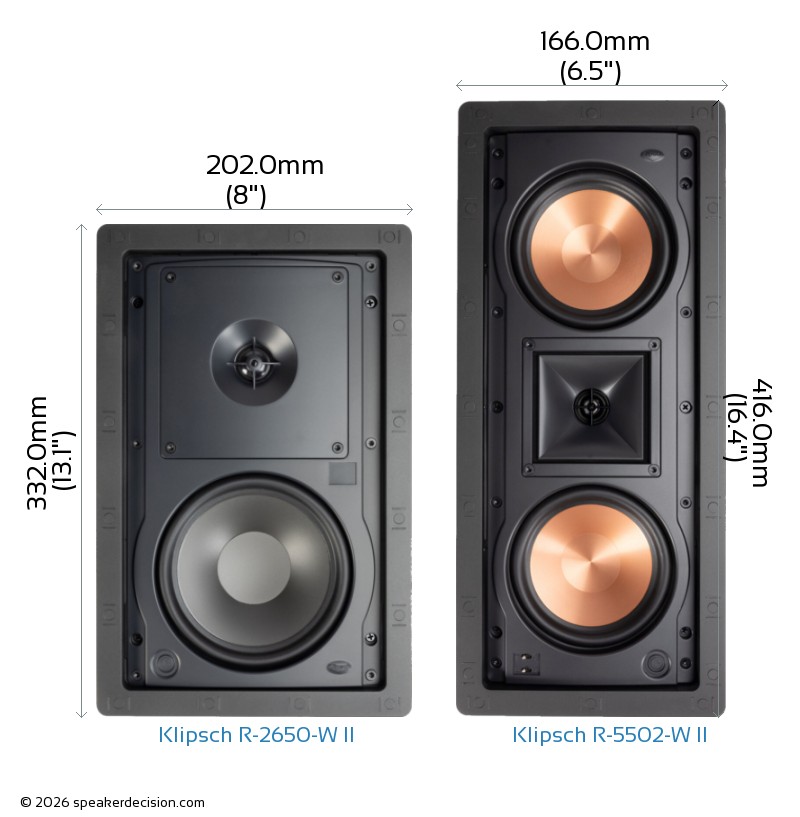

Below you can see the front view size comparison of Klipsch R-2650-W II and Klipsch R-5502-W II in scale.
Comparison image of Klipsch R-2650-W II and Klipsch R-5502-W II Size and External Dimensions
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Klipsch R-2650-W II weighs 3.27kg / 7.2lbs and the Klipsch R-5502-W II weighs 2.95kg / 6.5lbs. This makes the R-2650-W II 11% heavier than the R-5502-W II.
Here is a comparison of how R-2650-W II and R-5502-W II's weights compare with the average, max and min weights in Passive In-wall class.
Weight
All In-wall Speakers
What's in the Box of Klipsch R-2650-W II?
Here are the items that are included inside the box of R-2650-W II:
- In-wall speaker
- White metal mesh grille
- Cardboard template
- Owners Manual (En/Fr/Sp)
What's in the Box of Klipsch R-5502-W II?
Here are the items that come with the R-5502-W II:
- In-wall speaker
- White metal mesh grille
- Cardboard template
- Owners Manual (En/Fr/Sp)
 Woofer Size |
6.5 inches
vs
5.25 inches
|
Larger woofer |
 Height |
332mm
vs
416mm
|
Easier to fit in smaller spaces |
 Max Input Power |
75 watts
vs
50 watts
|
Handle more power from your amplifier |
 Sensitivity |
92 dB
vs
91 dB
|
Play louder with same amount of amplification power |
|
Number of Woofers |
2
vs
1
|
More woofers |
|
Low Frequency Response |
46 Hz
vs
65 Hz
|
Generates deeper bass |
 Base Surface Area |
142cm2
vs
189cm2
|
Takes less floor space |
| General |
Klipsch R-2650-W II |
Klipsch R-5502-W II |
| Brand |
Klipsch |
Klipsch |
| Speaker Type |
Passive In-wall Speaker |
Passive In-wall Speaker |
| Power Range |
up to 50 watts |
up to 75 watts |
| Sensitivity |
91 dB |
92 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
65-20kHz |
46-20kHz |
Drivers |
|
|
| Woofer Quantity |
1 |
2 |
| Woofer Size |
6.5" |
5.25" |
| Woofer Composition |
Polypropylene |
Cerametallic |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Soft-Dome |
Horn-loaded |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
1800 Hz |
2200 Hz |
Physical Specs |
|
|
| Height |
332.0mm (13.1") |
416.0mm (16.4") |
| Width |
202.0mm (8") |
166.0mm (6.5") |
| Depth |
94.0mm (3.7") |
86.0mm (3.4") |
| Weight |
3.27kg (7.2lbs) |
2.95kg (6.5lbs) |
| Enclosure |
In-wall |
In-wall |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
Ltd. Lifetime |
Ltd. Lifetime |
| Labor Warranty |
Ltd. Lifetime |
Ltd. Lifetime |
Siblings in Klipsch's Reference II series, so they share a family sound. It comes down to size, output and price.
| Area | Better | Why |
|---|
| Bass | B | Klipsch R-5502-W II digs deeper - 46Hz against 65Hz. |
| Amplifier needs | evenly matched | Similar sensitivity (91dB vs 92dB) - both want much the same power. |
| Headroom | B | Klipsch R-5502-W II takes more power (75W vs 50W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Price | evenly matched | Much the same money ($498 vs $498 a pair). |
A Klipsch R-2650-W II B Klipsch R-5502-W II
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Klipsch R-5502-W II has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 65Hz anyway, so judge these on the other rows instead.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
