In this review, we will be comparing Kendall and R500, two Passive Floor-standing speakers from KLH and Polk Audio.
Let's have a brief look at the main features
of KLH Kendall and Polk R500 first before getting into our more
detailed comparison.
| Key Specs | KLH Kendall | Polk R500 |
|---|
| Brand | KLH
United States · founded 1957 | Polk Audio
United States · founded 1972 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1" | 1" Pinnacle Ring Radiator |
|---|
| Midrange | 5.25" | — |
|---|
| Woofer | 2 x 6.5" Woven Kevlar | 2 x 5.25" Polypropylene Turbine Cone |
|---|
| Frequency response | 25-23k Hz | 49-38k Hz |
|---|
| Sensitivity | 96 dB | 87 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | up to 250 watts | 25-200 watts |
|---|
| Weight | 22.14kg / 48.7lbs | 17.70kg / 38.9lbs |
|---|
| Dimensions (H x W x D) | 40-3/16" x 8-5/16" x 14-15/16"
1021.0 x 212.0 x 380.0mm | 41.1" x 10.1" x 13.7"
1044.5 x 255.4 x 348.8mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Kendall is a 3-way design whereas the R500 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
KLH KendallPolk R500
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
KLH Kendall |
Polk R500 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
2 x 6.5-inch
|
2 x 5.25-inch
|
Kendall features a 1" anodized aluminum Tweeter, a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer. On the other hand, the R500 features a 1" Pinnacle Ring Radiator Tweeter and 2 x 5.25" Polypropylene Turbine Cone Woofer with a Crossover frequency at 2500Hz.
Frequency Response
Kendall has a frequency range of 25-23k Hz whereas R500 has a frequency range of 49-38k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the R500's min frequency of 49Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Kendall and R500 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Kendall sensitivity is rated at 96 dB and the R500's is at 87 dB. This 9 dB difference makes the KLH Kendall a more sensitive speaker compared to Polk R500, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Kendall can handle a max power of 250 watts RMS, whereas R500 has a max power handling value of 200 watts RMS, 50 watts less than the Kendall.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Kendall features Binding post posts which make bi-amping or bi-wiring possible. R500 has a Post which doesn't feature bi-amping/bi-wiring.
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
Polk R500's Post terminals
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare KLH Kendall's and Polk R500's external dimensions. KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm (40-3/16 x 8-5/16 x 14-15/16inch) whereas Polk R500 has external dimensions of 1044.5 x 255.4 x 348.8mm (41.1 x 10.1 x 13.7inch).
KLH Kendall is 43.4mm narrower and 23.5mm shorter than Polk R500 but it is also 31.2mm deeper.

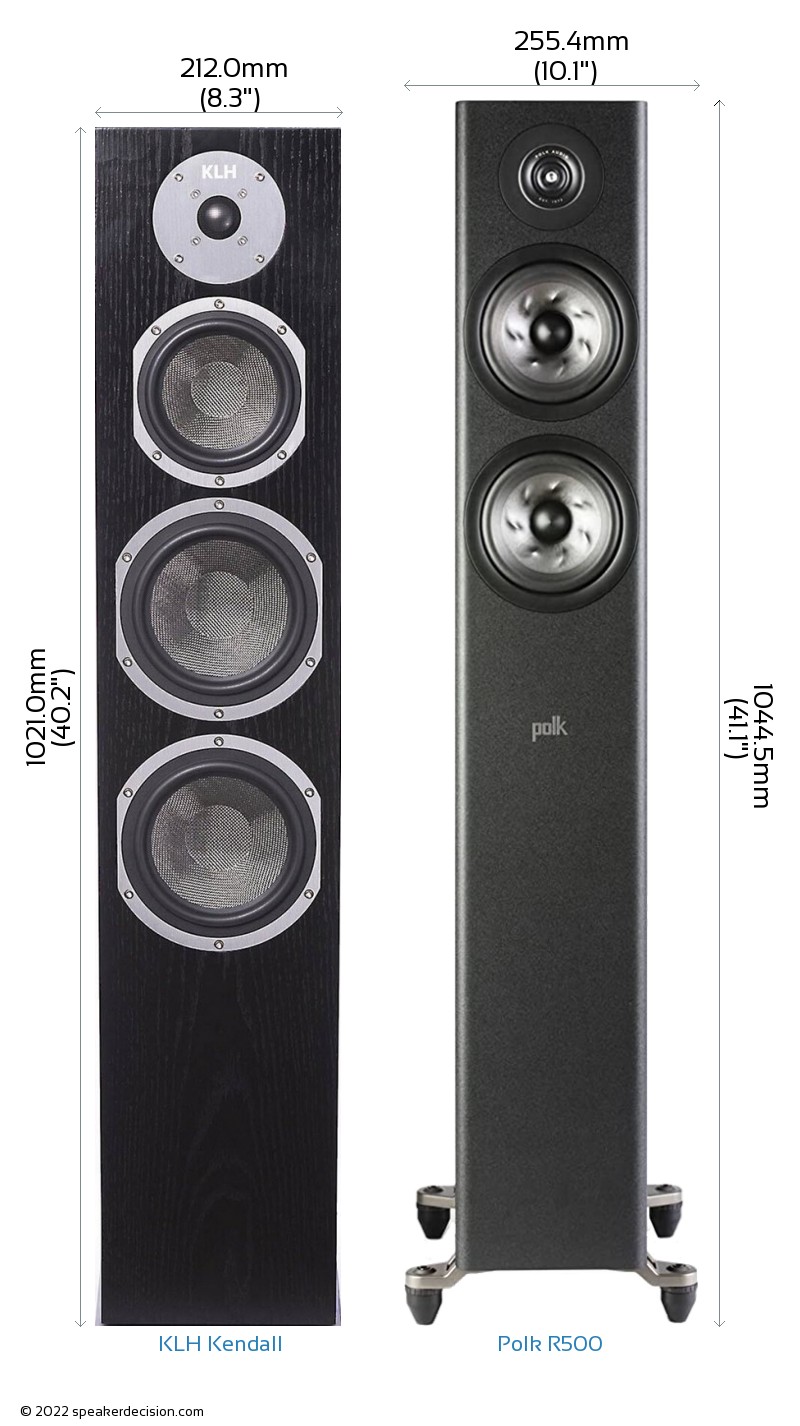

Below you can see the front view size comparison of KLH Kendall and Polk R500 in scale.
Comparison image of KLH Kendall and Polk R500 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2 and base area of the Polk R500 is approximately 890.8cm2 / 138.1inch2. The Kendall requires 10% less surface area than the R500 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The KLH Kendall weighs 22.14kg / 48.7lbs and the Polk R500 weighs 17.70kg / 38.9lbs. This makes the Kendall 25% heavier than the R500.
Here is a comparison of how Kendall and R500's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of KLH Kendall?
Here are the items that are included inside the box of Kendall:
- Floorstanding loudspeaker
- Grille
- Foam port
- 4 Rubber feet
- 4 Spike feet (with nuts)
- 4 Protective discs
- Manual
What's in the Box of Polk R500?
Here are the items that come with the R500:
- Floorstanding loudspeaker
- 4 Outrigger feet (pre-installed)
- 4 Rubber feet (pre-installed)
- 4 Spike feet (pre-installed)
- Grille
- Hex-key
- Owner's Manual
- Online Registration
 Max Input Power |
250 watts
vs
200 watts
|
Handle more power from your amplifier |
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
96 dB
vs
87 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.5 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
25 Hz
vs
49 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Height |
1021mm
vs
1044mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
805cm2
vs
890cm2
|
Takes less floor space |
 High Frequency Response |
36k Hz
vs
23k Hz
|
Generates higher frequency |
 Price per pair* |
1298USD
vs
1500USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
KLH Kendall |
Polk Audio Reserve R500 |
| Brand |
KLH |
Polk Audio |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
up to 250 watts |
25-200 watts |
| Sensitivity |
96 dB |
87 dB |
| Impedance |
8 ohms |
8 ohms |
| Impedance |
n/a |
3.9 ohms |
| Frequency Response |
25-23k Hz |
49-38k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
6.5" |
5.25" |
| Woofer Composition |
Woven Kevlar |
Polypropylene Turbine Cone |
| Woofer Surround Material |
Butyl Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
n/a |
Pinnacle Ring Radiator |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
5.25" |
No |
| Crossover Frequency |
n/a |
2500Hz |
| Firing Direction |
n/a |
rear |
Physical Specs |
|
|
| Height |
1021.0mm (40.2") |
1044.5mm (41.1") |
| Width |
212.0mm (8.3") |
255.4mm (10.1") |
| Depth |
380.0mm (15") |
348.8mm (13.7") |
| Weight |
22.14kg (48.7lbs) |
17.70kg (38.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood Veneer |
MDF/Vinyl |
| Available Colors |
Black |
Black, Walnut, White |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
No |
Other |
|
|
| Parts Warranty |
10 Years |
5 Years |
| Labor Warranty |
10 Years |
5 Years |
No single best speaker here - they are built to different priorities, and the right one depends on your room, your amplifier and what you listen to.
| Area | Better | Why |
|---|
| Bass | A | KLH Kendall digs deeper - 25Hz against 49Hz. |
| Amplifier needs | A | KLH Kendall is more sensitive (96dB vs 87dB), so it goes louder on the same amplifier. |
| Headroom | A | KLH Kendall takes more power (250W vs 200W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | KLH Kendall: bi-amping. Polk R500 sits in a wider range (10 models), so a matched surround system is easier later. |
| Price | B | Polk R500 is cheaper - $1,298 against $1,500, about 13% less. |
A KLH Kendall B Polk R500
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
KLH Kendall leads across most of the measured areas for a fairly modest premium, which makes it the easier pick if the budget stretches. Polk R500 is the one to take if it does not. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 49Hz anyway, which makes the cheaper Polk R500 much easier to justify. If your amplifier is modest, vintage or valve-based, KLH Kendall is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
