In this review, we will be comparing two different types of speakers by DALI. DALI Opticon 2 MK2 is a Bookshelf speaker whereas the Opticon LCR MK2 is a On-Wall speaker.
Let's have a brief look at the main features
of DALI Opticon 2 II and DALI Opticon LCR II first before getting into our more
detailed comparison.
| Key Specs | DALI Opticon 2 II | DALI Opticon LCR II |
|---|
| Brand | DALI
Denmark · founded 1983 | DALI
Denmark · founded 1983 |
|---|
| Design | 2-way | 3-way |
|---|
| Tweeter | 1.125" Soft-Dome | 17 x 45 mm ribbon + 1.125" Soft-dome + ribbon Hybrid |
|---|
| Woofer | 6.5" Wood Fiber | 6.5" Wood Fiber |
|---|
| Frequency response | 59-25k Hz | 70-30k Hz |
|---|
| Sensitivity | 86.5 dB | 89 dB |
|---|
| Impedance | 4 ohms | 4 ohms |
|---|
| Power range | 30-150 watts | 30-150 watts |
|---|
| Weight | 7.73kg / 17lbs | 8.00kg / 17.6lbs |
|---|
| Dimensions (H x W x D) | 13-13/16" x 7-11/16" x 11-11/16"
351.0 x 196.0 x 297.0mm | 19" x 11-1/4" x 5"
483.0 x 286.0 x 127.0mm |
|---|
Opticon 2 MK2 and Opticon LCR MK2 are members of DALI's Opticon Mark II series of speakers. Below you can find the loudspeakers from this series.
DALI Opticon Mark II Series
History
What size room are the DALI Opticon 2 II and DALI Opticon LCR II speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
DALI Opticon 2 II |
DALI Opticon LCR II |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that Opticon 2 MK2 is a 2-way design whereas the Opticon LCR MK2 is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
DALI Opticon 2 IIDALI Opticon LCR II
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
DALI Opticon 2 II |
DALI Opticon LCR II |
|
Driver Setup
|
2-way
|
3-way
|
|
Tweeter
|
1.125-inch
|
17 x 45 mm ribbon + 1.125-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
Opticon 2 MK2 features a 1.125" Soft-Dome Tweeter and 1 x 6.5" Wood Fiber Woofer with a Crossover frequency at 2000Hz. On the other hand, the Opticon LCR MK2 features a 17 x 45 mm ribbon + 1.125" Soft-dome + ribbon Hybrid Tweeter and 1 x 6.5" Wood Fiber Woofer with a Crossover frequency at 2800Hz and 14.000Hz.
Frequency Response
Opticon 2 MK2 has a frequency range of 59-25k Hz whereas Opticon LCR MK2 has a frequency range of 70-30k Hz. With a minimum frequency of 59Hz, the Opticon 2 MK2 can go significantly deeper on the low side and provide stronger bass compared to the Opticon LCR MK2's min frequency of 70Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Opticon 2 MK2 and Opticon LCR MK2 have the same Impedance of 4 ohms but where they differ is the sensitivity levels. Opticon 2 MK2 sensitivity is rated at 86.5 dB and the Opticon LCR MK2's is at 89 dB. This 2 dB difference makes the DALI Opticon LCR II a more sensitive speaker compared to DALI Opticon 2 II, hence will play louder with the same amount of watts.
One thing to keep in mind that the lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit comared to higher impedance speakers especially at high volume levels, so make sure the amp you pair with the Opticon 2 MK2 and the Opticon 2 MK2 can provide this impedance level.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Opticon 2 MK2 and Opticon LCR MK2 have the same power range of 30-150 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Opticon 2 MK2 features Post type posts and Opticon LCR MK2 has a Post type posts. None of these speakers feature bi-amping/bi-wiring.
DALI Opticon 2 II's Post terminals
DALI Opticon LCR II's Post terminals
Cabinet Type and Port Position
Both Opticon 2 MK2 and Opticon LCR MK2 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
DALI Opticon 2 II Port
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare DALI Opticon 2 II's and DALI Opticon LCR II's external dimensions. DALI Opticon 2 II has external dimensions of 351.0 x 196.0 x 297.0mm (13-13/16 x 7-11/16 x 11-11/16inch) whereas DALI Opticon LCR II has external dimensions of 483.0 x 286.0 x 127.0mm (19 x 11-1/4 x 5inch).
DALI Opticon 2 II is 90mm narrower and 132mm shorter than DALI Opticon LCR II but it is also 170mm deeper.

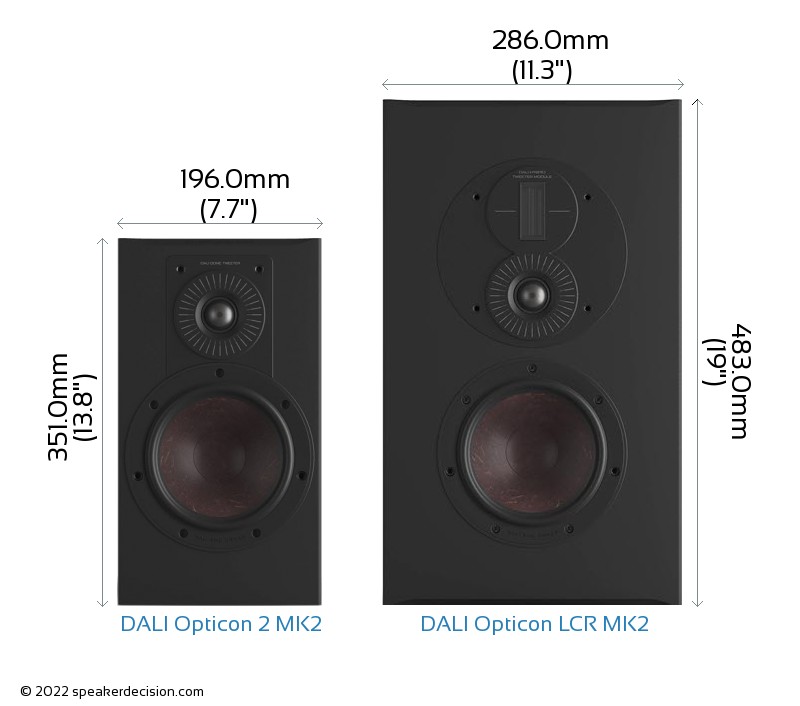

Below you can see the front view size comparison of DALI Opticon 2 II and DALI Opticon LCR II in scale.
Comparison image of DALI Opticon 2 II and DALI Opticon LCR II Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the DALI Opticon 2 II is approximately 582.1cm2 / 90.2inch2 and base area of the DALI Opticon LCR II is approximately 363.2cm2 / 56.3inch2. The Opticon 2 MK2 requires 60% more surface area than the Opticon LCR MK2 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of DALI Opticon 2 II?
Here are the items that are included inside the box of Opticon 2 MK2:
- Bookshelf loudspeaker
- Grille
- 4 Rubber feet
- Quick Start Guide
- Congratulations Card
What's in the Box of DALI Opticon LCR II?
Here are the items that come with the Opticon LCR MK2:
- LCR loudspeaker
- Grille
- 4 Rubber bumpers
- Hex-key
- Quick Start Guide
- Congratulations Card
