In this review, we will be comparing two different type of speakers . Wharfedale SUPER LINTON is a Bookshelf speaker whereas the Model Five is a Floor-standing speaker.
Let's have a brief look at the main features
of Wharfedale SUPER LINTON and KLH Model Five first before getting into our more
detailed comparison.
Wharfedale SUPER LINTON Key Specs
- 3-way Design
- 1" Soft-dome Tweeter
- 5" Midrange
- 8" Black Woven Kevlar Cone Woofer
- 39-20k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 6ohms
- Power Range:25-200watts
- Weight:19.80kg
- Dimensions (H x W x D): 605.0" x 12" x 14.2"( 605 x 300 x 360 mm )
KLH Model Five Key Specs
- 3-way Design
- 1" Hard-Dome Tweeter
- 4" Midrange
- 10" Pulp-Paper Woofer
- 4" Midrange
- 42-20k Hz Frequency Response
- 90.5 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-200watts
- Weight:20.00kg
- Dimensions (H x W x D): 660.0" x 13-3/4" x 13"( 660.0 x 350.0 x 292.0mm )
What size room are the Wharfedale SUPER LINTON and KLH Model Five speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale SUPER LINTON |
KLH Model Five |
| Near-field |
Poor |
Bad |
| Small Room |
Average |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale SUPER LINTON and KLH Model Five compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both SUPER LINTON and Model Five are 3-way speakers.
| Driver |
Wharfedale SUPER LINTON |
KLH Model Five |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5-inch |
1 x 4-inch |
|
Woofer
|
1 x 8-inch
|
1 x 10-inch
|
SUPER LINTON features a 1" woven textile Soft-dome Tweeter , a 5" Midrange and 1 x 8" Black Woven Kevlar Cone Woofer with a Crossover frequency at 550Hz and 2500Hz. On the other hand, the Model Five features a 1" aluminum Hard-Dome Tweeter , a 4" Midrange and 1 x 10" Pulp-Paper Woofer with a Crossover frequency at 380Hz and 2850Hz.
Frequency Response
SUPER LINTON has a frequency range of 39-20k Hz whereas Model Five has a frequency range of 42-20k Hz. With a minimum frequency of 39Hz, the SUPER LINTON can go slightly deeper then the Model Five's min frequency of 42Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
SUPER LINTON and Model Five have the same Impedance of 6 ohms but where they differ is the sensitivity levels. SUPER LINTON sensitivity is rated at 90 dB and the Model Five's is at 90.5 dB. This 1 dB difference makes the KLH Model Five a more sensitive speaker compared to Wharfedale SUPER LINTON, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
SUPER LINTON features Binding post type posts and Model Five has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale SUPER LINTON's Post terminals
KLH Model Five's Binding post terminals
Wharfedale SUPER LINTON dual Port
Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale SUPER LINTON's and KLH Model Five's external dimensions. Wharfedale SUPER LINTON has external dimensions of 605 x 300 x 360 mm ( 23.82 x 12 x 14.2 inches) whereas KLH Model Five has external dimensions of 660.0 x 350.0 x 292.0mm ( 34-1/4 x 13-3/4 x 13inch) .
Wharfedale SUPER LINTON is 50mm narrower and 55mm shorter than KLH Model Five but it is also 68mm deeper.

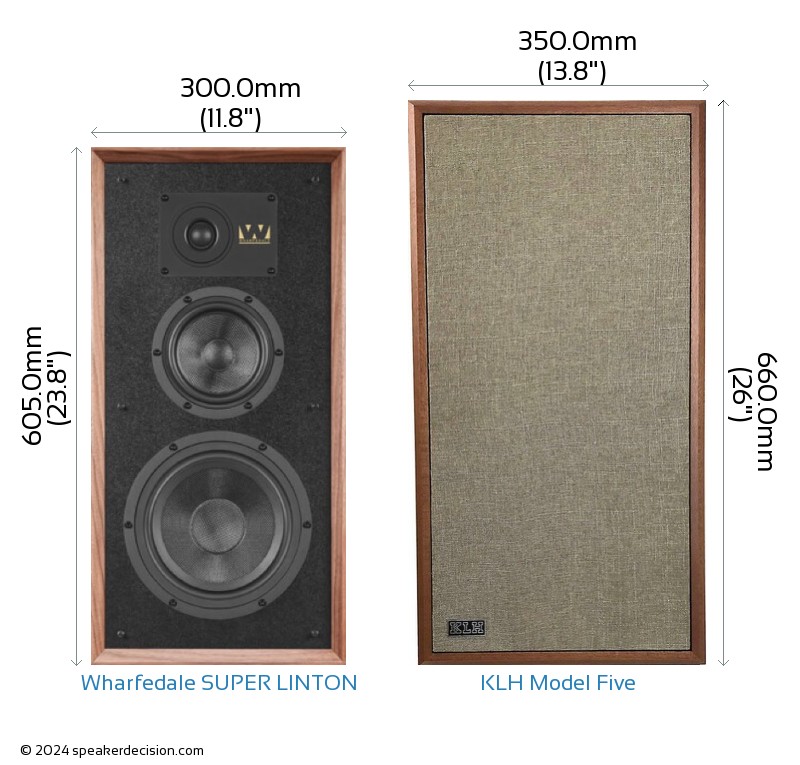

Below you can see the front view size comparison of Wharfedale SUPER LINTON and KLH Model Five in scale.
Comparison image of Wharfedale SUPER LINTON and KLH Model Five Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale SUPER LINTON is approximately 1080.0cm2 / 167.4inch2 and base area of the KLH Model Five is approximately 1022.0cm2 / 158.4inch2. The SUPER LINTON requires 6% more surface area than the Model Five which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Wharfedale SUPER LINTON?
Here are the items that are included inside the box of SUPER LINTON:
Bookshelf loudspeaker Grille (pre-installed) 4 Self-adhesive rubber feet Pair of white gloves User's Manual
What's in the Box of KLH Model Five?
Here are the items that come with the Model Five:
Floorstanding loudspeakerRiser baseGrilleOwners Manual
