In this review, we will be comparing Elysian 4 and Kendall, two Passive Floor-standing speakers from Wharfedale and KLH.
Let's have a brief look at the main features
of Wharfedale Elysian 4 and KLH Kendall first before getting into our more
detailed comparison.
| Key Specs | Wharfedale Elysian 4 | KLH Kendall |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | KLH
United States · founded 1957 |
|---|
| Design | 3-way | 3-way |
|---|
| Tweeter | 27x90mm" AMT (Ribbon) | 1" |
|---|
| Midrange | 6" | 5.25" |
|---|
| Woofer | 2 x 8.5" Coated Fiberglass | 2 x 6.5" Woven Kevlar |
|---|
| Frequency response | 30-22k Hz | 25-23k Hz |
|---|
| Sensitivity | 92 dB | 96 dB |
|---|
| Impedance | 4 ohms | 8 ohms |
|---|
| Power range | 15-250 watts | up to 250 watts |
|---|
| Weight | 49.60kg / 109.1lbs | 22.14kg / 48.7lbs |
|---|
| Dimensions (H x W x D) | 46-3/4" x 15-13/16" x 18-3/16"
1188.0 x 402.0 x 462.0mm | 40-3/16" x 8-5/16" x 14-15/16"
1021.0 x 212.0 x 380.0mm |
|---|
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Elysian 4 and Kendall are 3-way speakers.
Wharfedale Elysian 4KLH Kendall
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale Elysian 4 |
KLH Kendall |
|
Driver Setup
|
3-way
|
3-way
|
|
Tweeter
|
27x90mm-inch
|
1-inch
|
|
Midrange
|
1 x 6-inch |
1 x 5.25-inch |
|
Woofer
|
2 x 8.5-inch
|
2 x 6.5-inch
|
Elysian 4 features a 27x90mm" AMT (Ribbon) Tweeter, a 6" Midrange and 2 x 8.5" Coated Fiberglass Woofer with a Crossover frequency at 340Hz and 3100Hz. On the other hand, the Kendall features a 1" anodized aluminum Tweeter, a 5.25" Midrange and 2 x 6.5" Woven Kevlar Woofer.
Frequency Response
Elysian 4 has a frequency range of 30-22k Hz whereas Kendall has a frequency range of 25-23k Hz. With a minimum frequency of 25Hz, the Kendall can go significantly deeper on the low side and provide stronger bass compared to the Elysian 4's min frequency of 30Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Elysian 4 is a 4 ohms speaker compared to the Kendall which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the Elysian 4 can provide this impedance level.
These two speakers also have different sensitivity levels. Elysian 4 sensitivity is rated at 92 dB and the Kendall's is rated at 96 dB. This 4 dB difference makes the KLH Kendall a more sensitive speaker compared to Wharfedale Elysian 4, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 250 watts RMS, though Elysian 4 is rated 15-250 watts and Kendall up to 250 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
Both Elysian 4 and Kendall features dual binding post speaker terminals for bi-amping or bi-wiring.
KLH Kendall's Binding post terminals allows Bi-amping or bi-wiring
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale Elysian 4's and KLH Kendall's external dimensions. Wharfedale Elysian 4 has external dimensions of 1188.0 x 402.0 x 462.0mm (46-3/4 x 15-13/16 x 18-3/16inch) whereas KLH Kendall has external dimensions of 1021.0 x 212.0 x 380.0mm (40-3/16 x 8-5/16 x 14-15/16inch).
Wharfedale Elysian 4 is clearly the larger of the two speakers. Its body is 190mm wider, 167mm taller and 82mm deeper than KLH Kendall.

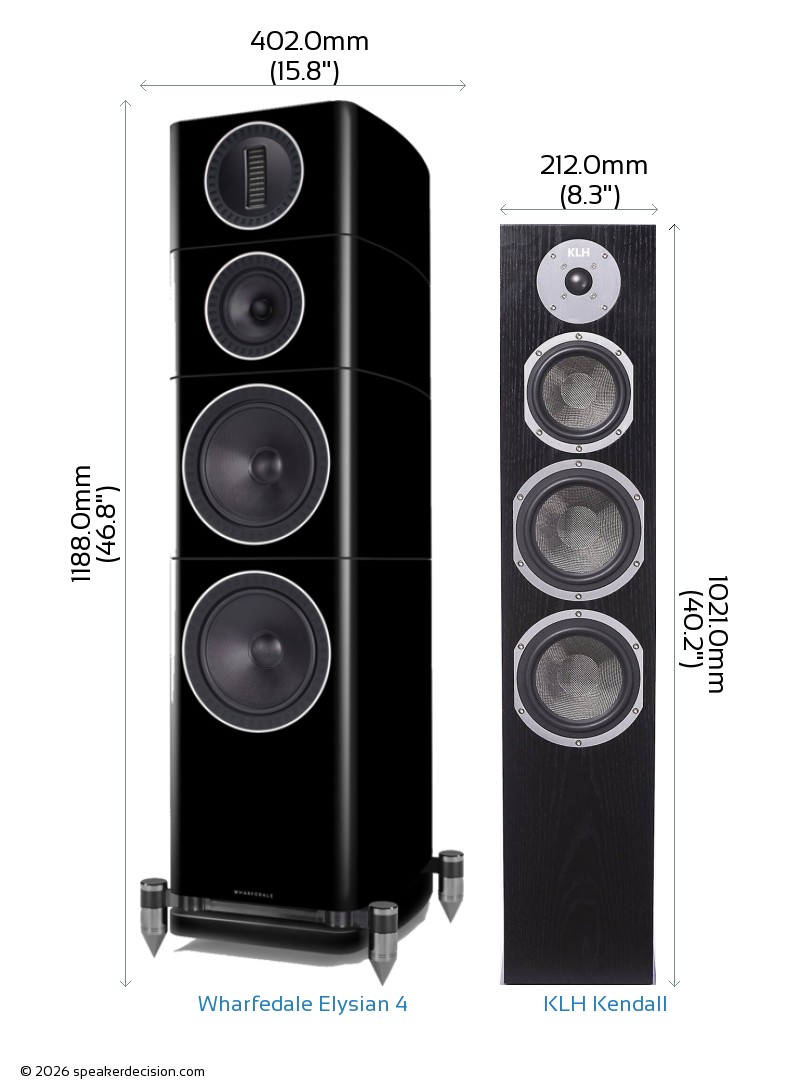

Below you can see the front view size comparison of Wharfedale Elysian 4 and KLH Kendall in scale.
Comparison image of Wharfedale Elysian 4 and KLH Kendall Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale Elysian 4 is approximately 1857.2cm2 / 287.9inch2 and base area of the KLH Kendall is approximately 805.6cm2 / 124.9inch2. The Elysian 4 requires 131% more surface area than the Kendall which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale Elysian 4 weighs 49.60kg / 109.1lbs and the KLH Kendall weighs 22.14kg / 48.7lbs. This makes the Elysian 4 124% heavier than the Kendall.
Here is a comparison of how Elysian 4 and Kendall's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of Wharfedale Elysian 4?
Here are the items that are included inside the box of Elysian 4:
- Floorstanding loudspeaker
- Grille
- 2 Terminal-jumpers (pre-installed)
- 4 Spike feet
- User Manual
What's in the Box of KLH Kendall?
Here are the items that come with the Kendall:
- Floorstanding loudspeaker
- Grille
- Foam port
- 4 Rubber feet
- 4 Spike feet (with nuts)
- 4 Protective discs
- Manual
 Woofer Size |
8.5 inches
vs
6.5 inches
|
Larger woofer |
 Sensitivity |
96 dB
vs
92 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
|
Low Frequency Response |
25 Hz
vs
30 Hz
|
Generates deeper bass |
 High Frequency Response |
23k Hz
vs
22k Hz
|
Generates higher frequency |
 Height |
1021mm
vs
1188mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
805cm2
vs
1857cm2
|
Takes less floor space |
 Price per pair* |
1500USD
vs
9996USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Wharfedale Elysian 4 |
KLH Kendall |
| Brand |
Wharfedale |
KLH |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
15-250 watts |
up to 250 watts |
| Sensitivity |
92 dB |
96 dB |
| Impedance |
4 ohms |
8 ohms |
| Frequency Response |
30-22k Hz |
25-23k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
8.5" |
6.5" |
| Woofer Composition |
Coated Fiberglass |
Woven Kevlar |
| Woofer Surround Material |
Foamed Rubber |
Butyl Rubber |
| Tweeter Size |
27x90mm" |
1" |
| Tweeter Type |
AMT (Ribbon) |
n/a |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
6" |
5.25" |
| Crossover Frequency |
340Hz and 3100Hz |
n/a |
| Firing Direction |
bottom |
n/a |
Physical Specs |
|
|
| Height |
1188.0mm (46.8") |
1021.0mm (40.2") |
| Width |
402.0mm (15.8") |
212.0mm (8.3") |
| Depth |
462.0mm (18.2") |
380.0mm (15") |
| Weight |
49.60kg (109.1lbs) |
22.14kg (48.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Lacquer |
MDF/Wood Veneer |
| Available Colors |
Piano Black, Piano Walnut,White |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
10 Years |
| Labor Warranty |
5 Years |
10 Years |
These sit in different price classes - Wharfedale Elysian 4 costs roughly 6.7x what KLH Kendall does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | KLH Kendall digs deeper - 25Hz against 30Hz. A subwoofer would even that out. |
| Amplifier needs | B | KLH Kendall is more sensitive (96dB vs 92dB), so it goes louder on the same amplifier. |
| Amplifier match | B | KLH Kendall is the easier load at 8 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | evenly matched | Similar power handling (250W vs 250W). |
| Size | depends | KLH Kendall is easier to place; Wharfedale Elysian 4 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Wharfedale Elysian 4: bi-amping; KLH Kendall: bi-amping. Wharfedale Elysian 4 sits in a wider range (6 models), so a matched surround system is easier later. |
| Price | B | KLH Kendall is cheaper - $1,500 against $9,996, about 85% less; arguably a different class. |
A Wharfedale Elysian 4 B KLH Kendall
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
KLH Kendall is the easier recommendation: it leads on most of the measured areas and costs less. Take Wharfedale Elysian 4 if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 30Hz anyway, so judge these on the other rows instead. In a large or open-plan room, Wharfedale Elysian 4 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, KLH Kendall is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
