In this review, we will be comparing EVO5.2 and M105, two Passive Bookshelf speakers from Wharfedale and Revel.
Let's have a brief look at the main features
of Wharfedale EVO5.2 and Revel M105 first before getting into our more
detailed comparison.
| Key Specs | Wharfedale EVO5.2 | Revel M105 |
|---|
| Brand | Wharfedale
United Kingdom · founded 1932 | Revel
United States · founded 1996 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1.375" AMT (Ribbon) | 1" Hard-Dome with Acoustic Lens Waveguide |
|---|
| Midrange | 2" | — |
|---|
| Woofer | 6.5" woven Kevlar | 5.25" Aluminum |
|---|
| Frequency response | 44-24k Hz | 60Hz- 20kHz |
|---|
| Sensitivity | 88 dB | 86 dB |
|---|
| Impedance | 4 ohms | 8 ohms |
|---|
| Power range | 25-120 watts | 50-120 watts |
|---|
| Weight | 15.05kg / 33.1lbs | 7.14kg / 15.7lbs |
|---|
| Dimensions (H x W x D) | 19.6" x 10.2" x 15.4"
497.0 x 260.0 x 391.0mm | 14-1/8" x 7-15/16" x 9-7/8"
359.0 x 202.0 x 251.0mm |
|---|
What size room are the Wharfedale EVO5.2 and Revel M105 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO5.2 |
Revel M105 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that EVO5.2 is a 3-way design whereas the M105 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Wharfedale EVO5.2Revel M105
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Wharfedale EVO5.2 |
Revel M105 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1.375-inch
|
1-inch
|
|
Midrange
|
1 x 2-inch |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 5.25-inch
|
EVO5.2 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter, a 2" Midrange and 1 x 6.5" woven Kevlar Woofer with a Crossover frequency at 800 Hz and 4.3 kHz. On the other hand, the M105 features a 1" aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter and 1 x 5.25" Aluminum Woofer with a Crossover frequency at 2300Hz.
Frequency Response
EVO5.2 has a frequency range of 44-24k Hz whereas M105 has a frequency range of 60Hz- 20kHz. With a minimum frequency of 44Hz, the EVO5.2 can go significantly deeper on the low side and provide stronger bass compared to the M105's min frequency of 60Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.2 is a 4 ohms speaker compared to the M105 which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.2 can provide this impedance level.
These two speakers also have different sensitivity levels. EVO5.2 sensitivity is rated at 88 dB and the M105's is rated at 86 dB. This 2 dB difference makes the Wharfedale EVO5.2 a more sensitive speaker compared to Revel M105, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
Both handle the same maximum of 120 watts RMS, though EVO5.2 is rated 25-120 watts and M105 50-120 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
EVO5.2 features Binding post type posts and M105 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale EVO5.2's Binding post terminals
Revel M105's Binding post terminals
Cabinet Type and Port Position
EVO5.2 has a bottom firing port whereas M105 has a rear firing ports. Wharfedale EVO5.2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Revel M105 with its rear-firing port.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.2's and Revel M105's external dimensions. Wharfedale EVO5.2 has external dimensions of 497.0 x 260.0 x 391.0mm (19.6" × 10.2" × 15.4") whereas Revel M105 has external dimensions of 359.0 x 202.0 x 251.0mm (14-1/8 x 7-15/16 x 9-7/8inch).
Wharfedale EVO5.2 is clearly the larger of the two speakers. Its body is 58mm wider, 138mm taller and 140mm deeper than Revel M105.

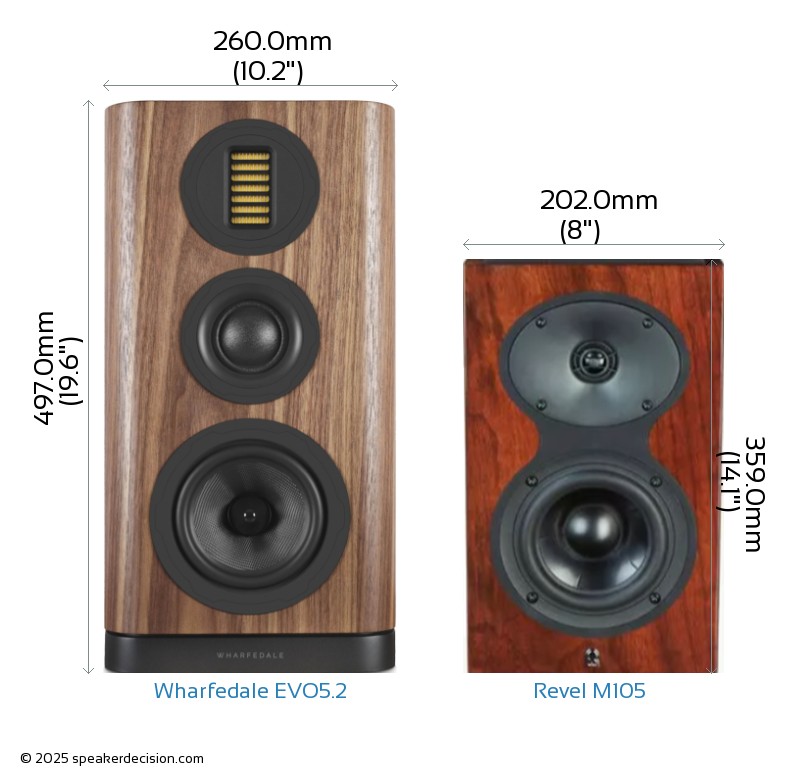

Below you can see the front view size comparison of Wharfedale EVO5.2 and Revel M105 in scale.
Comparison image of Wharfedale EVO5.2 and Revel M105 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.2 is approximately 1016.6cm2 / 157.6inch2 and base area of the Revel M105 is approximately 507.0cm2 / 78.6inch2. The EVO5.2 requires 101% more surface area than the M105 which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Wharfedale EVO5.2 weighs 15.05kg / 33.1lbs and the Revel M105 weighs 7.14kg / 15.7lbs. This makes the EVO5.2 111% heavier than the M105.
Here is a comparison of how EVO5.2 and M105's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Wharfedale EVO5.2?
Here are the items that are included inside the box of EVO5.2:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 4 Jumper-bars (pre-installed)
- 8 Self-adhesive rubber feet
- Pair of white cloth gloves
- User Manual
What's in the Box of Revel M105?
Here are the items that come with the M105:
- Bookshelf loudspeaker
- Grille
- Foam port plug
- Owners Manual
 Driver Setup |
3-way
vs
2-way
|
Have a dedicated mid-range driver |
 Sensitivity |
88 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Woofer Size |
6.5 inches
vs
5.25 inches
|
Larger woofer |
|
Low Frequency Response |
44 Hz
vs
60 Hz
|
Generates deeper bass |
 High Frequency Response |
24k Hz
vs
20k Hz
|
Generates higher frequency |
 Nominal Impedance |
8 ohms
vs
4 ohms
|
Less selective with amplifiers |
 Height |
359mm
vs
497mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
507cm2
vs
1016cm2
|
Takes less floor space |
 Price per pair* |
1650USD
vs
1799USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Wharfedale EVO5.2 |
Revel Performa3 M105 |
| Brand |
Wharfedale |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
25-120 watts |
50-120 watts |
| Sensitivity |
88 dB |
86 dB |
| Impedance |
4 ohms |
8 ohms |
| Impedance |
3.2 ohms |
n/a |
| Frequency Response |
44-24k Hz |
60Hz- 20kHz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
5.25" |
| Woofer Composition |
woven Kevlar |
Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1.375" |
1" |
| Tweeter Type |
AMT (Ribbon) |
Hard-Dome with Acoustic Lens Waveguide |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
2" |
No |
| Crossover Frequency |
800 Hz and 4.3 kHz |
2300Hz |
| Firing Direction |
bottom |
rear |
Physical Specs |
|
|
| Height |
497.0mm (19.6") |
359.0mm (14.1") |
| Width |
260.0mm (10.2") |
202.0mm (8") |
| Depth |
391.0mm (15.4") |
251.0mm (9.9") |
| Weight |
15.05kg (33.1lbs) |
7.14kg (15.7lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood-veneer |
Wood/Lacquer |
| Available Colors |
Walnut, Grey. Black, White |
Gloss Walnut,Piano Black,Piano White |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
18-22" |
24-25" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
A generation apart: Wharfedale EVO5.2 is the newer design, against a 2013 model. Newer is not automatically better, but the older one is more likely to be discounted or near run-out.
| Area | Better | Why |
|---|
| Bass | A | Wharfedale EVO5.2 digs deeper - 44Hz against 60Hz. |
| Amplifier needs | A | Wharfedale EVO5.2 is more sensitive (88dB vs 86dB), so it goes louder on the same amplifier. |
| Amplifier match | B | Revel M105 is the easier load at 8 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | evenly matched | Similar power handling (120W vs 120W). |
| Size | depends | Revel M105 is easier to place; Wharfedale EVO5.2 is bigger, which usually goes with fuller bass. Your room decides. |
| Expandability | depends | Neither adds bi-amping, a sub output or height drivers. Revel M105 sits in a wider range (8 models), so a matched surround system is easier later. |
| Price | evenly matched | Much the same money ($1,799 vs $1,650 a pair). |
A Wharfedale EVO5.2 B Revel M105
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Wharfedale EVO5.2 has the edge on paper, though the margin is not large. The rows marked "depends" may matter more to you than the score does. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 60Hz anyway, so judge these on the other rows instead. In a large or open-plan room, Wharfedale EVO5.2 has the cabinet volume to fill it more easily; in a small room, near a wall or at desk distance, Revel M105 is the easier speaker to get right.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
