In this review, we will be comparing EVO5.2 and Kanta No.1, two Passive Bookshelf speakers from Wharfedale and Focal.
Let's have a brief look at the main features
of Wharfedale EVO5.2 and Focal Kanta No.1 first before getting into our more
detailed comparison.
Wharfedale EVO5.2 Key Specs
- 3-way Design
- 1.375" AMT (Ribbon) Tweeter
- 2" Midrange
- 6.5" woven Kevlar Woofer
- 44-24k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 4ohms
- Power Range:25-120watts
- Weight:15.00kg
- Dimensions (H x W x D): 497.0" x 10.2" x 15.4"( 497.0 x 260.0 x 350.0mm )
Focal Kanta No.1 Key Specs
- 2-way Design
- 1.1" Hard-Dome Tweeter
- 6.5" Flax Woofer
- 46-40k Hz Frequency Response
- 88 dB Sensitivity
- Impedance: 8ohms
- Power Range:25-150watts
- Weight:13.05kg
- Dimensions (H x W x D): 609.6" x 9-1/4" x 15-7/16"( 609.6 x 228.6 x 393.0mm )
What size room are the Wharfedale EVO5.2 and Focal Kanta No.1 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Wharfedale EVO5.2 |
Focal Kanta No.1 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Wharfedale EVO5.2 and Focal Kanta No.1 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that EVO5.2 is a 3-way design whereas the Kanta No.1 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Wharfedale EVO5.2 |
Focal Kanta No.1 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1.375-inch
|
1.1-inch
|
|
Midrange
|
1 x 2-inch |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
EVO5.2 features a 1.375" SilentWeave cotton and felt damping fiber AMT (Ribbon) Tweeter , a 2" Midrange and 1 x 6.5" woven Kevlar Woofer with a Crossover frequency at 800 Hz and 4.3 kHz. On the other hand, the Kanta No.1 features a 1.1" Hard-Dome Tweeter and 1 x 6.5" Flax Woofer with a Crossover frequency at 2400 Hz.
Frequency Response
EVO5.2 has a frequency range of 44-24k Hz whereas Kanta No.1 has a frequency range of 46-40k Hz. With a minimum frequency of 44Hz, the EVO5.2 can go slightly deeper then the Kanta No.1's min frequency of 46Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
EVO5.2 is a 4 ohms speaker compared to the Kanta No.1 which has a nominal impedance of 8 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the EVO5.2 can provide this impedance level.
On the other hand, they have the same sensitivity of 88 dBdB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
EVO5.2 can handle a max power of 150 watts RMS from the amp the whereas EVO5.2 has a max power handling value of 120 watts RMS , 30 watts less than the Kanta No.1.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
EVO5.2 features Binding post type posts and Kanta No.1 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Wharfedale EVO5.2's Binding post terminals
Focal Kanta No.1's Binding post terminals
Cabinet Type and Port Position
EVO5.2 has a bottom firing port whereas Kanta No.1 has a rear firing ports. Wharfedale EVO5.2's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to Focal Kanta No.1 with its rear-firing port.
Physical Specs

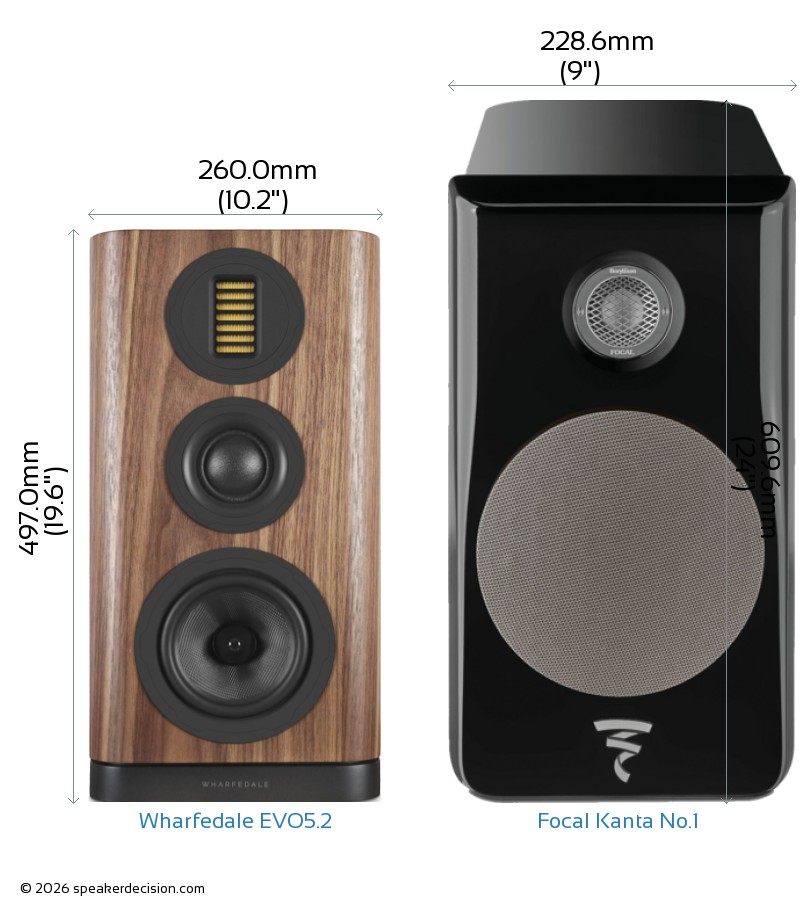

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Wharfedale EVO5.2's and Focal Kanta No.1's external dimensions. Wharfedale EVO5.2 has external dimensions of 497.0 x 260.0 x 350.0mm ( 19.6" × 10.2" × 15.4") whereas Focal Kanta No.1 has external dimensions of 609.6 x 228.6 x 393.0mm ( 24-28inch x 9-1/4inch x 15-7/16inch ) .
Wharfedale EVO5.2 is 112.6mm shorter and 43mm less deeper than Focal Kanta No.1 but it is also 31.4mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Wharfedale EVO5.2 is approximately 910.0cm2 / 141.1inch2 and base area of the Focal Kanta No.1 is approximately 898.4cm2 / 139.3inch2. The EVO5.2 requires 1% more surface area than the Kanta No.1 which gives it a small disadvantage on placement in tight spaces.
